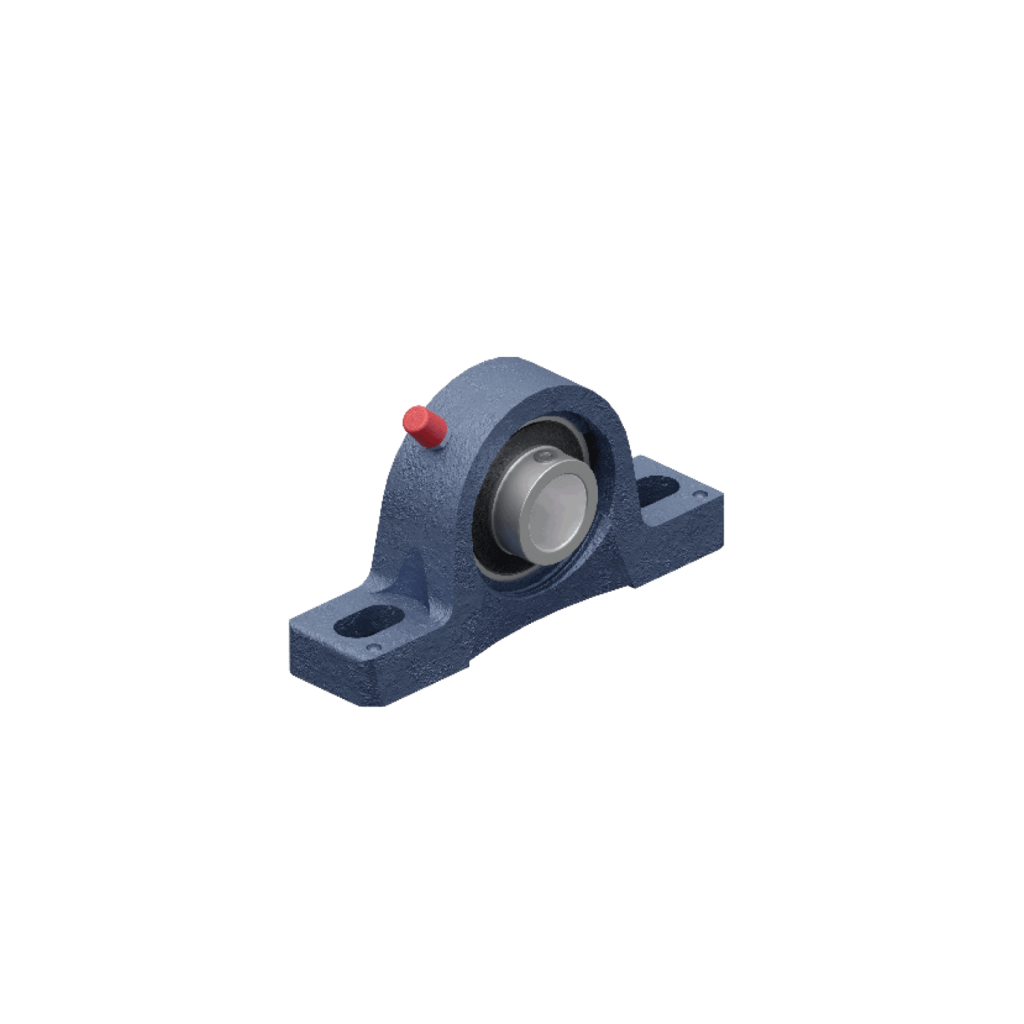

Pedestal bearing STL

Material – housing:	Grey cast iron, primed in blue
Material – bearing:	Rolling bearing steel
Temperature range:	-30C°to + 120°C

Please note:
A pedestal bearing is used for long connecting shafts that are operated at higher speeds. Please pay special attention to the installation height of the pedestal bearing.

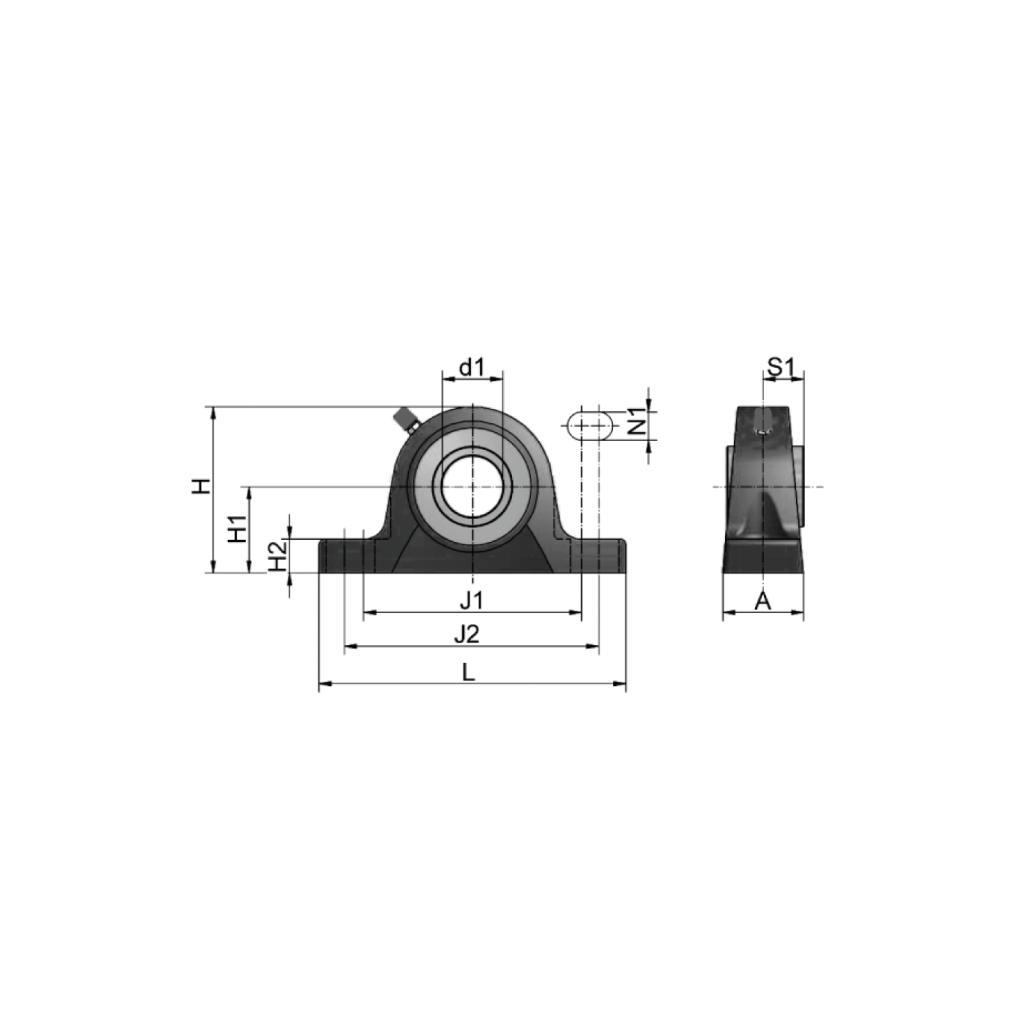

Size	D1	A	H	H1	H2	J1	J2	L	N1	S1	kg
5 kN	15	32	56	30.2	14	88	106	127	11.5	15.3	0.47
10 kN	20	32	65	33.3	14	88	106	127	11.5	18.3	0.59
25 kN	30	40	82.5	42.9	17	108	127	152	14	22.2	1.1
35 kN	20	32	65	33.3	14	88	106	127	11.5	18.3	0.59
50 kN	20	32	65	33.3	14	88	106	127	11.5	18.3	0.59
100 kN	30	40	82.5	42.9	17	108	127	152	14	22.2	1.1
150 kN	30	40	82.5	42.9	17	108	127	152	14	22.2	1.1
