| Aluminum, hard anodized incl. set screw | |
| Steel, corrosion-resistant |

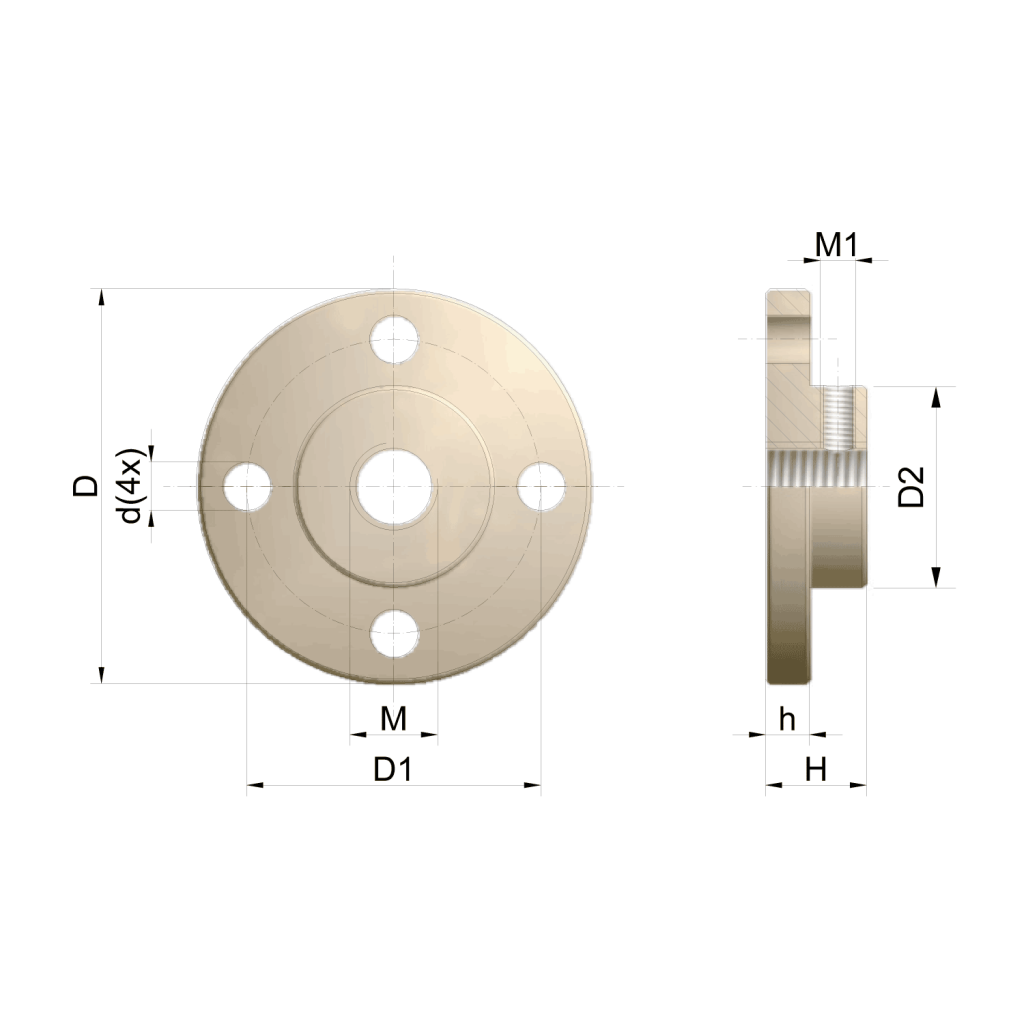

| Size | D | D1 | D2 | M | d | h | H | M1 | kg |
|---|---|---|---|---|---|---|---|---|---|
| 2.5 kN | 50 | 40 | 26 | M10 | 5,5 | 6 | 16 | 5 | 0,04 |
| 5 kN | 65 | 48 | 29 | M12 | 9 | 7 | 20 | 5 | 0,21 |
| 10 kN | 80 | 60 | 38 | M14 | 11 | 8 | 21 | 6 | 0,38 |
| 25 kN | 90 | 67 | 46 | M20 | 11 | 10 | 23 | 8 | 0,57 |
| 35 kN | 110 | 85 | 60 | M30 | 13 | 15 | 30 | 8 | 1,2 |
| 50 kN | 110 | 85 | 60 | M30 | 13 | 15 | 30 | 8 | 1,2 |
| 100 kN | 150 | 11 7 | 85 | M36 | 17 | 20 | 50 | 10 | 3,5 |
| 150 kN | 170 | 130 | 90 | M42x2 | 21 | 25 | 50 | 10 | 4,7 |
Dimensions for other sizes on request.
