| Steel, corrosion-resistant | |

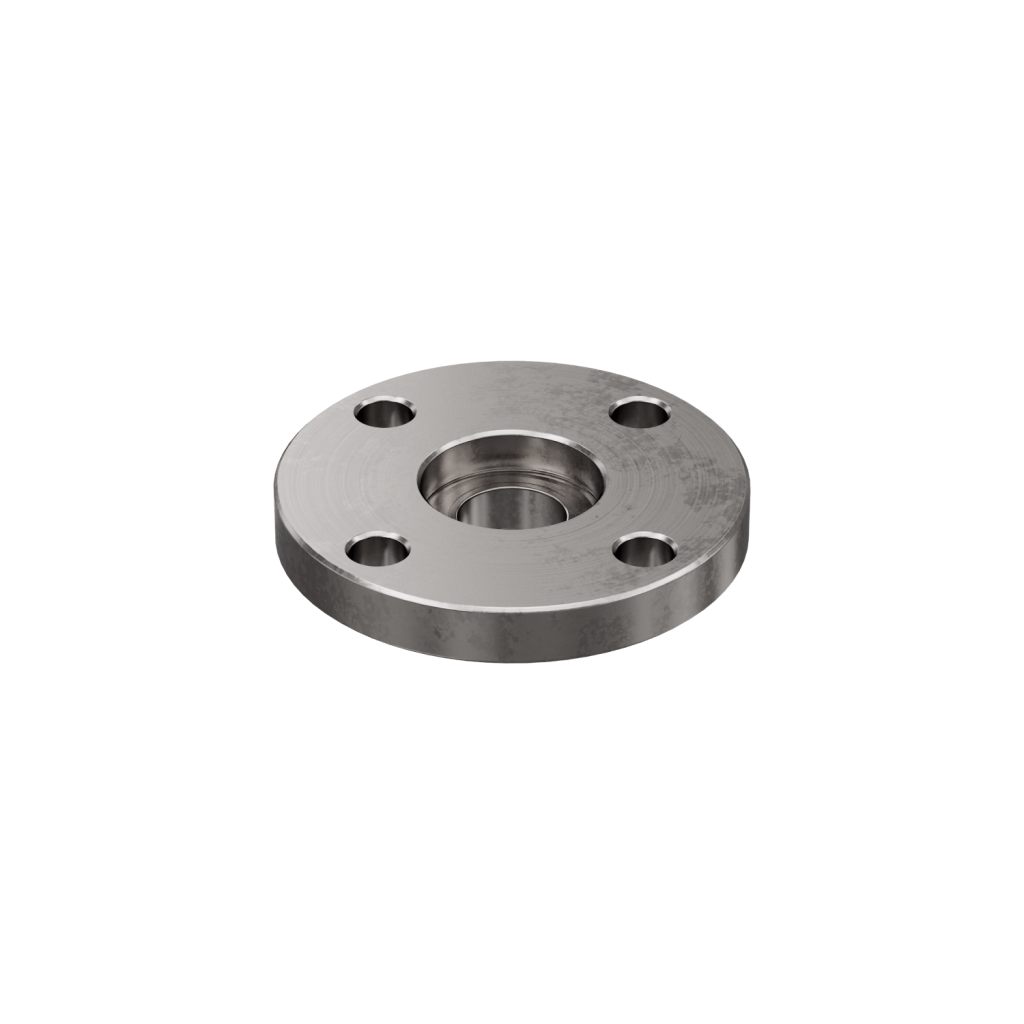

| The opposed bearing plate increases the smoothness of operation and the resistance of the screw to buckling. Allow 5 mm at the end of the screw for length compensation. The ball bearing is already mounted on delivery. |

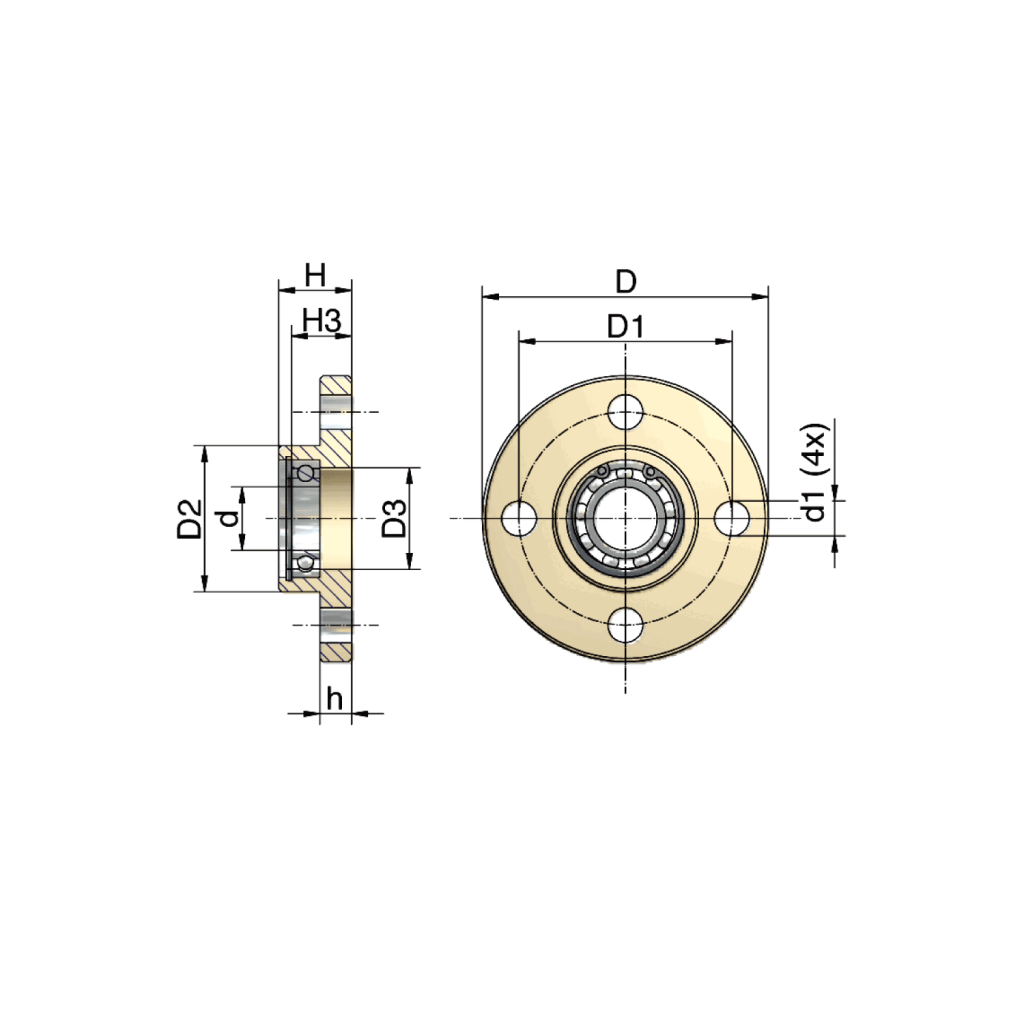

| Size | ØD | ØD1 | ØD2 | ØD3 | Ød | Ød1 | h | H | H3 | Bearing | Si-Ring | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.5 kN | 50 | 40 | 26 | 19 | 10 | 5,5 | 6 | 16 | 12 | 61900.2RS | J 22 | 0,05 |
| 5 kN | 65 | 48 | 29 | 20 | 12 | 9 | 7 | 20 | 13 | 61901.2RS | J 24 | 0,17 |
| 10 kN | 80 | 60 | 39 | 28 | 15 | 11 | 8 | 21 | 17 | 6002.2RS | J 32 | 0,3 |
| 25 kN | 90 | 67 | 46 | 32 | 20 | 11 | 10 | 23 | 19 | 61904.2RS | J 37 | 0,48 |
| 35 kN | 110 | 85 | 60 | 42 | 25 | 13 | 15 | 30 | 22 | 6005.2RS | J 47 | 1,05 |
| 50 kN | 110 | 85 | 60 | 42 | 25 | 13 | 15 | 30 | 22 | 6005.2RS | J 47 | 1,05 |
| 100 kN | 150 | 11 7 | 85 | 60 | 40 | 17 | 20 | 50 | 35 | 6008.2RS | J 68 | 3,1 |
| 150 kN | 170 | 130 | 90 | 68 | 45 | 21 | 25 | 50 | 31 | 6009.2RS | J 75 | 3,7 |
Dimensions for other sizes on request.
