Material:	Red brass (RG7)

Bellows can be attached both sides
Uniform Ø on gearbox neck, nut and opposed bearing plate
Grease nipple or connection to central lubrication or lubricator

Please select your required screw jack size

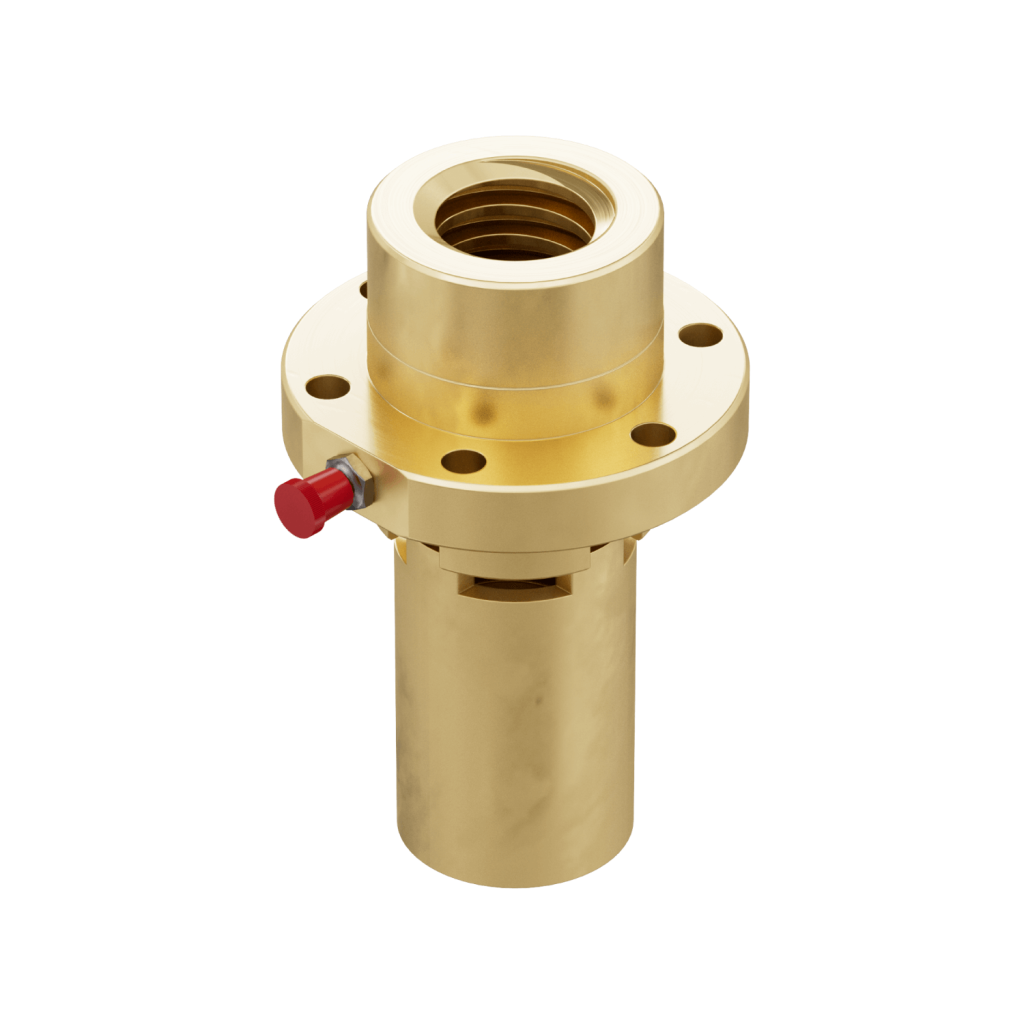

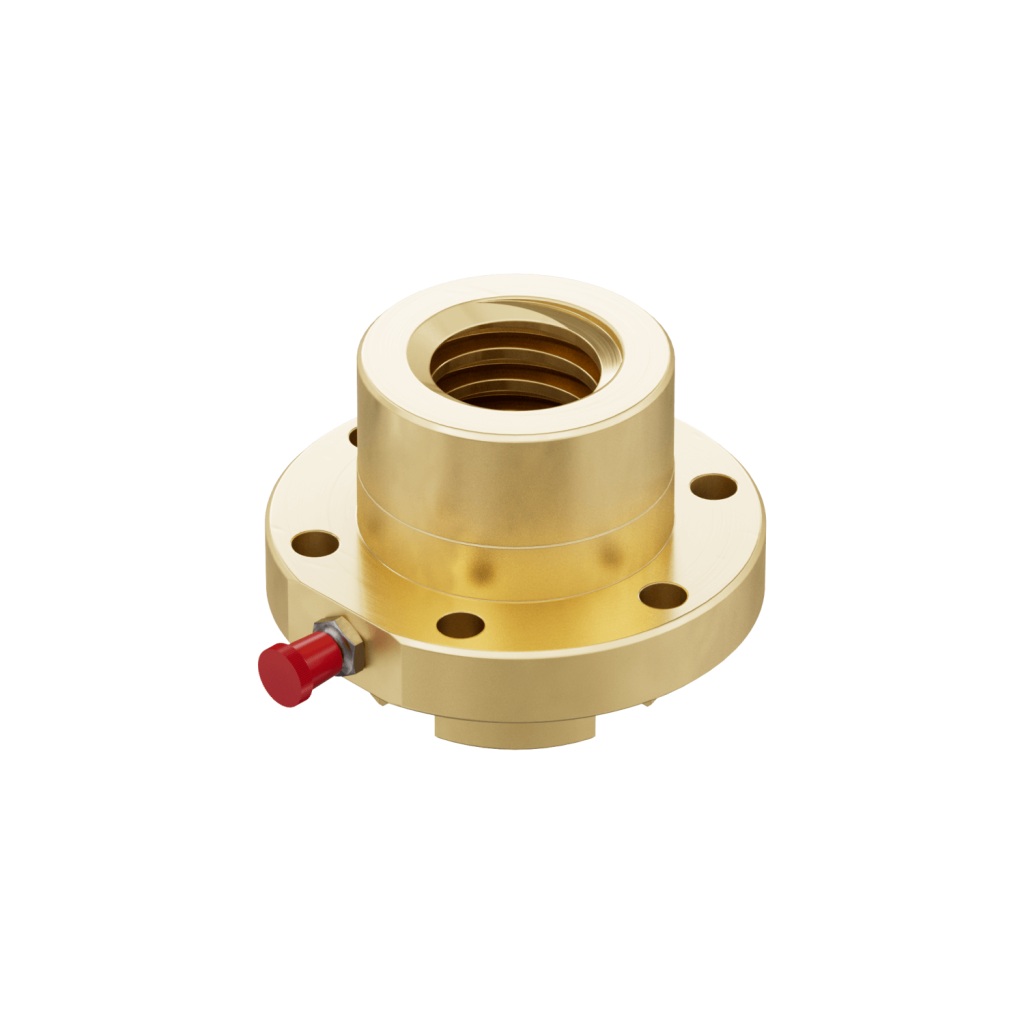

Duplex nut DM

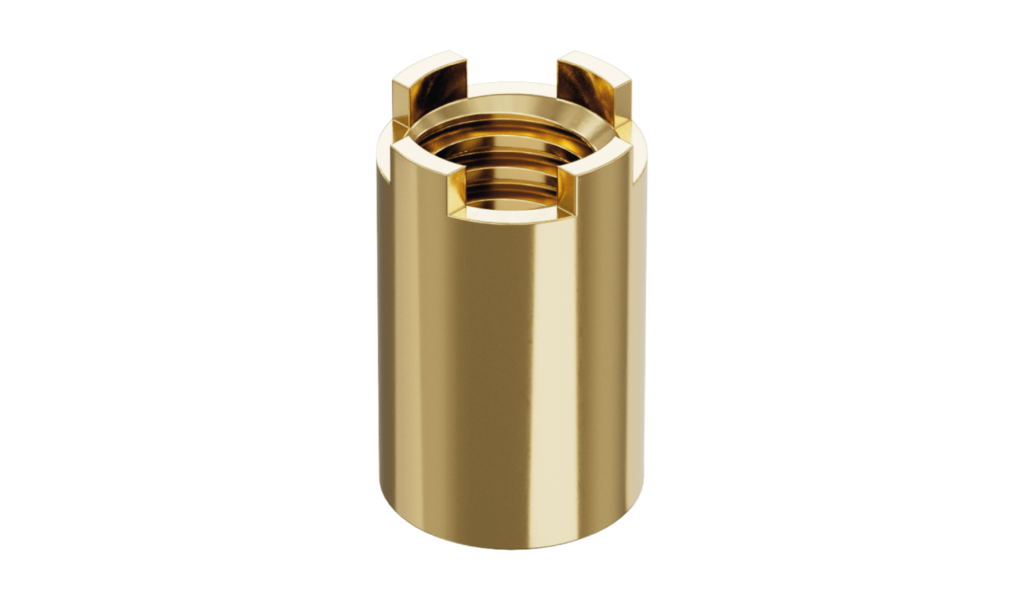

Safety nut SIFA-R

Material:	Red brass (RG7)
	In combination with duplex nut or self-aligning nut.

Number of SIFA-R (optional)

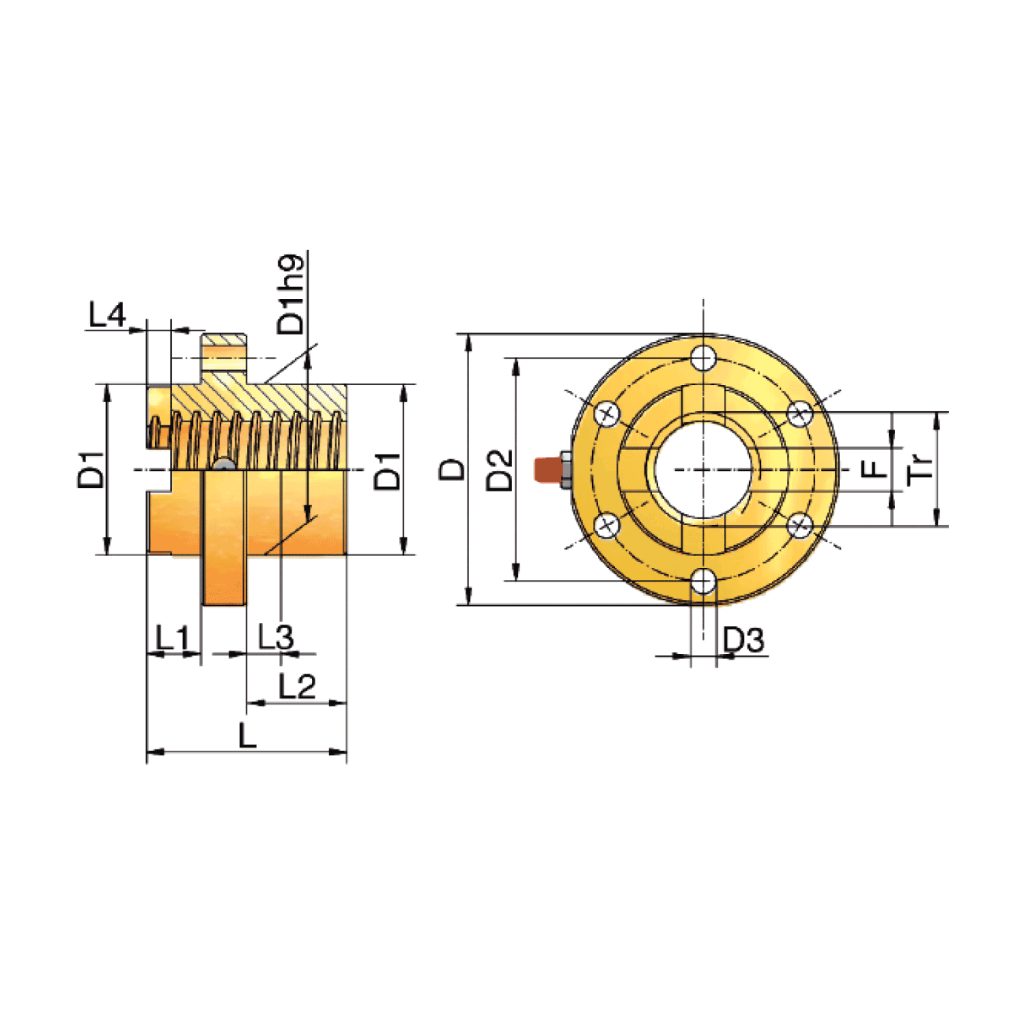

Size	Tr	D	D1	D2	D3	L	L1	L2	L3	L4	F	kg
2.5 kN	Tr 16×4	49	26	40*	5,5*	45	13	20	8	6	6	0,3
5 kN	Tr 18×4	52	29	40	6	45	13	20	8	6	6	0,3
10 kN	Tr 20×4	68	39	54	7	45	13	20	8	6	8	0,6
25 kN	Tr 30×6	79	46	61	7	50	13	23	8	7	12	0,8
35 kN	Tr 40×7	95	60	78	9	70	18	36	12	8,5	15	1,5
50 kN	Tr 40×7	95	60	78	9	70	18	36	12	8,5	15	1,5
100 kN	Tr 55×9	130	85	108	11	90	18	54	18	10	20	4,1
150 kN	Tr 60×9	140	90	11 6	13	11 5	20	75	20	10	20	5,3

*only 4 drill holes Ø 5.5mm

Dimensions for other sizes on request.
