| PU coated polyester fabric type |
Please note:

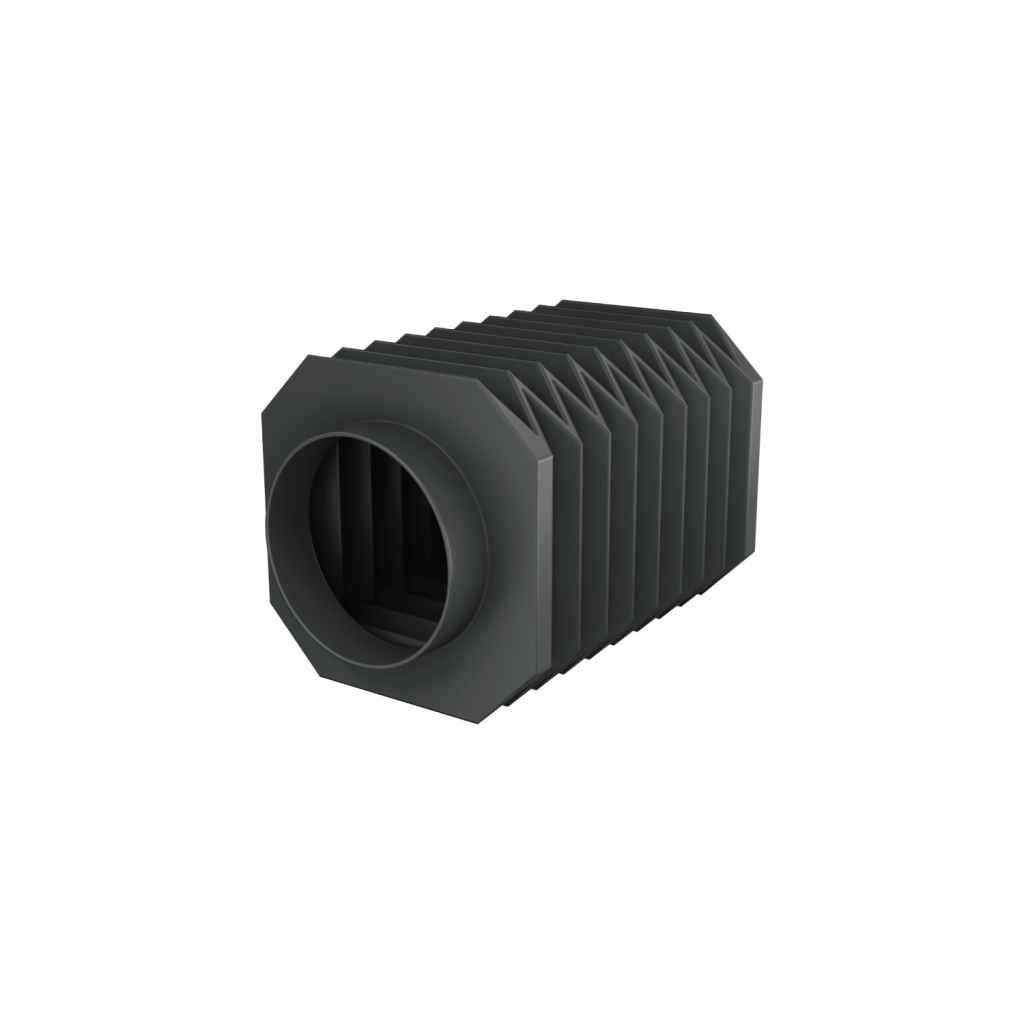

The bellows protect the screw and lubricant against dirt and moisture.

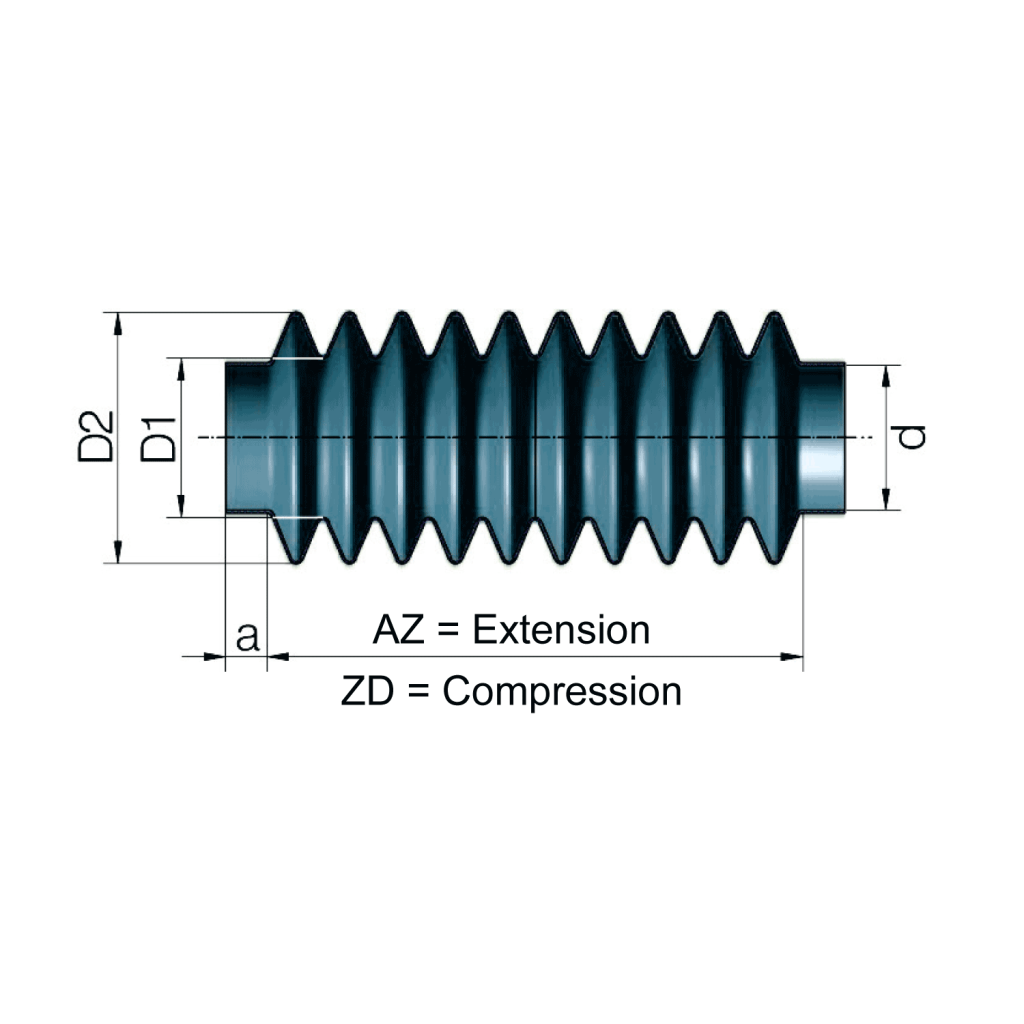

| Size | a | d | ZD | AZ | D1 | D2 | kg | |
|---|---|---|---|---|---|---|---|---|
| 5 kN | 10 | 29 | 100 | 600 | 38 | 68 | 0,2 | |
| 10 kN | 10 | 39 | 100 | 800 | 38 | 75 | 0,2 | |
| 25 kN | 15 | 46 | 100 | 800 | 63 | 105 | 0,3 | |
| 35 kN | 15 | 60 | 72 | 672 | 63 | 105 | 0,2 | |
| 50 kN | 15 | 60 | 72 | 672 | 63 | 105 | 0,2 | |
| 100 kN | 15 | 85 | 72 | 672 | 63 | 105 | 0,3 | |
| 150 kN | 15 | 90 | 72 | 672 | 110 | 150 | 0,4 |
Dimensions for other sizes on request.
