Steel, corrosion resistant
Parallel to the drive
At right angles to the drive

Lubrication:
The bronze bushings are PTFE-coated and therefore do not need to be lubricated during normal operation. For heavy loads we recommend regular lubrication.

Please note:
For large motors, long strokes and a high operating cycle, the variant with the slide bearing plate KAR is to be preferred because then the motor weight is absorbed by the pivot bearing plate and does not affect the spindle.

With the pivot bearing plate KAR you can control and connect a setup of multiple gearboxes lined up in a row.

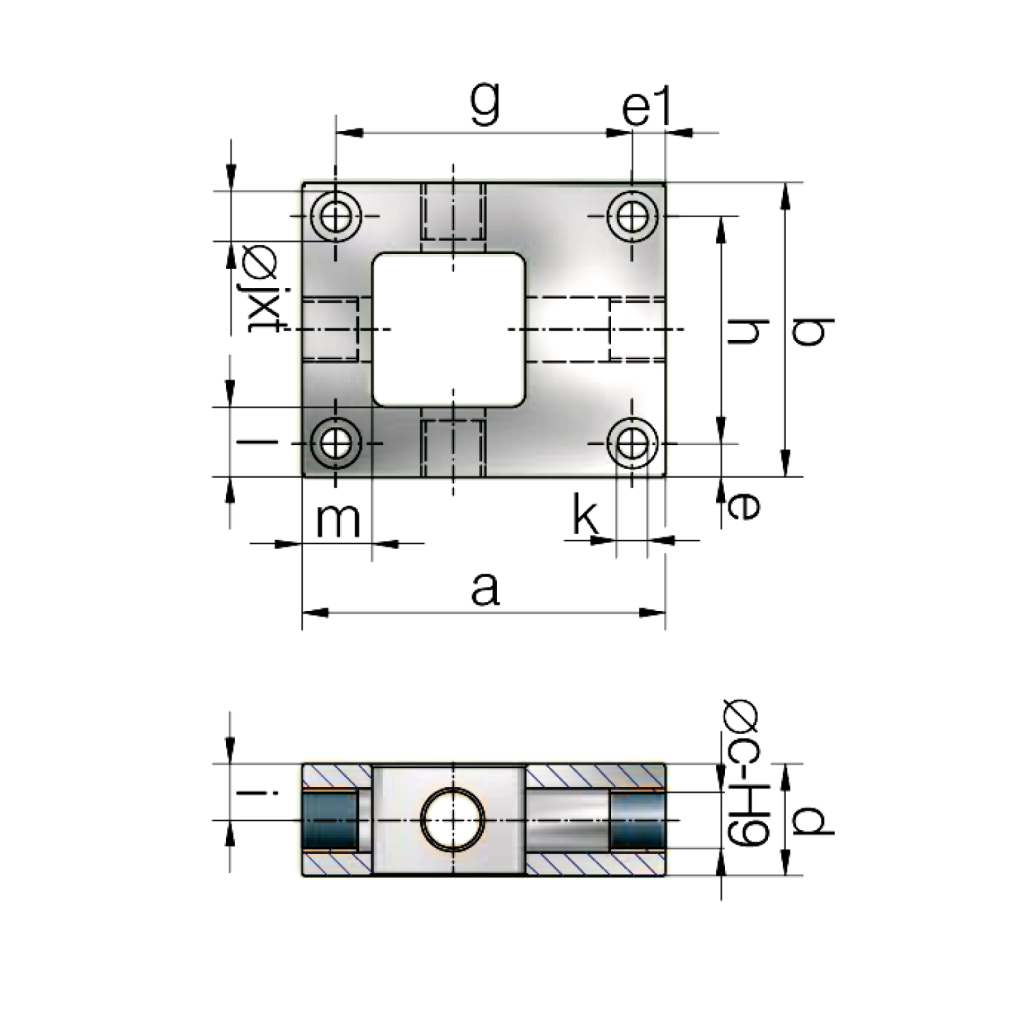

Sizeabcdee1ghijklmtkg
2.5 kN7050163066483813136,6111380,2
5 kN807216301010605215159181090,8
10 kN1008516301111786315159161191,2
25 kN13010520401212106812018112525112,8
50 kN1801453050151515011 52520132430135,3
100 kN2001754070221716613135261740301811,1
150 kN2202055080252517015540332240282213,5
