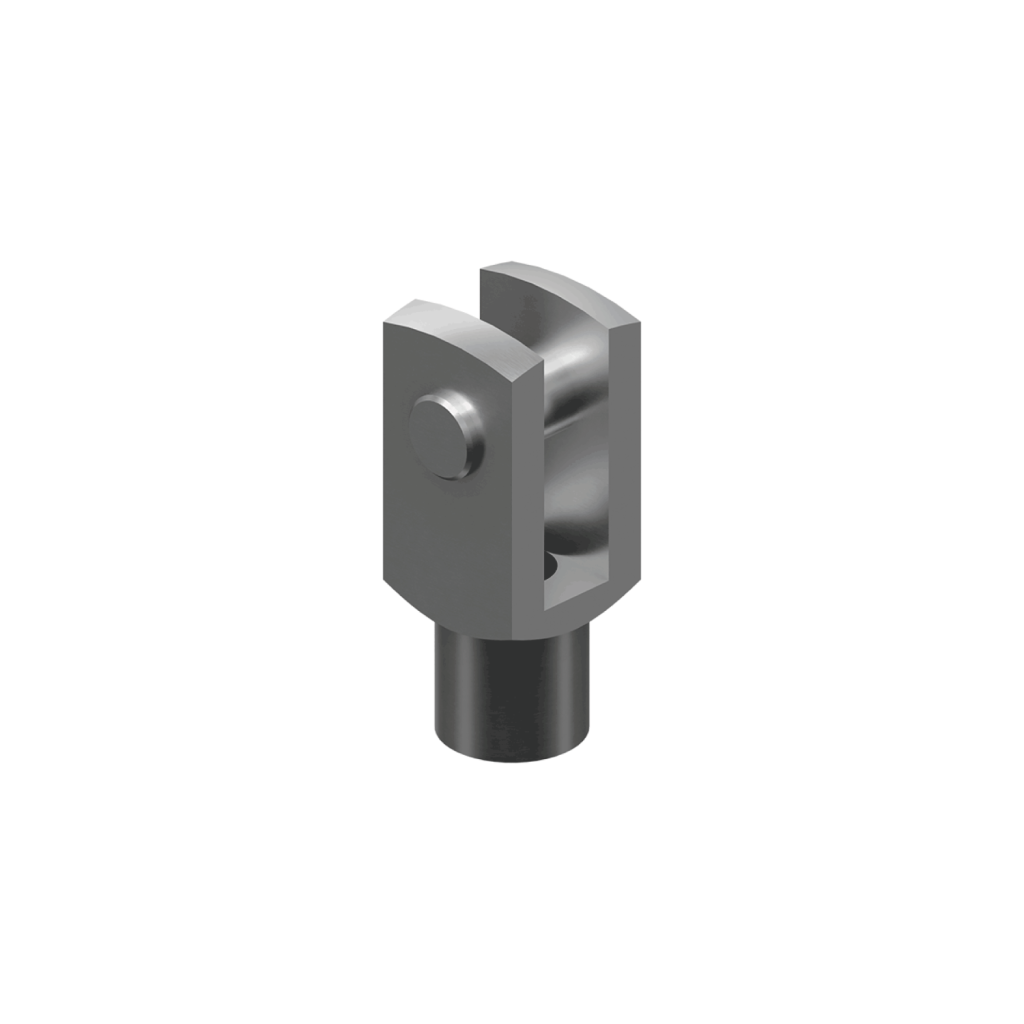

| Steel, galvanised (INOX on request) incl. bolt, splint and set screw |

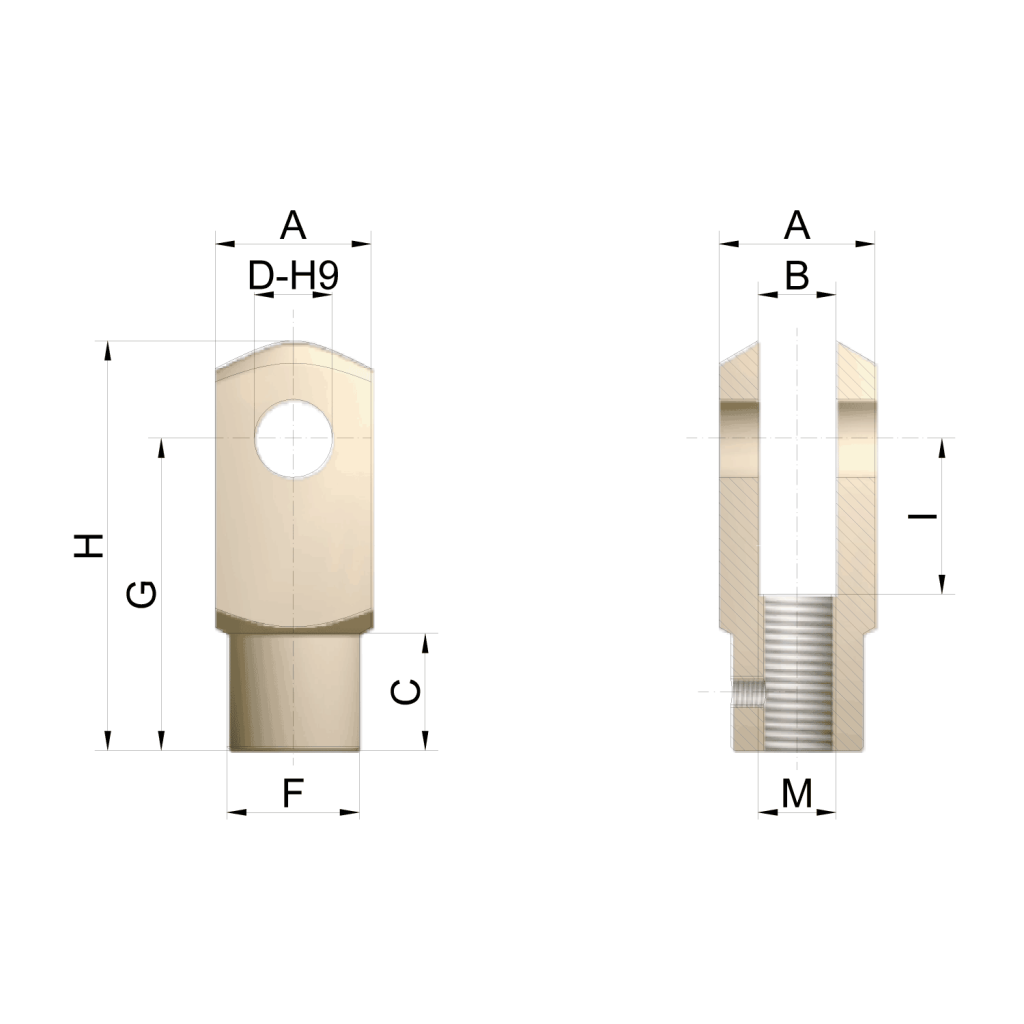

| Size | A | B | C | D | M | F | G | H | I | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 2.5 kN | 20 | 10 | 15 | 10 | M10 | 18 | 40 | 52 | 20 | 0.1 |
| 5 kN | 24 | 12 | 18 | 12 | M12 | 20 | 48 | 62 | 24 | 0.16 |
| 10 kN | 27 | 14 | 22 | 14 | M14 | 24 | 56 | 72 | 28 | 0.24 |
| 25 kN | 40 | 20 | 30 | 20 | M20 | 34 | 80 | 105 | 40 | 0.71 |
| 35 kN | 60 | 30 | 42 | 30 | M30 | 52 | 120 | 160 | 60 | 2.48 |
| 50 kN | 60 | 30 | 42 | 30 | M30 | 52 | 120 | 160 | 60 | 2.48 |
| 100 kN | 70 | 36 | 54 | 35 | M36 | 60 | 144 | 188 | 72 | 3.7 |
| 150 kN | 85 | 42 | 63 | 42 | M42x2 | 70 | 168 | 232 | 84 | 5.3 |
Dimensions for other sizes on request.
