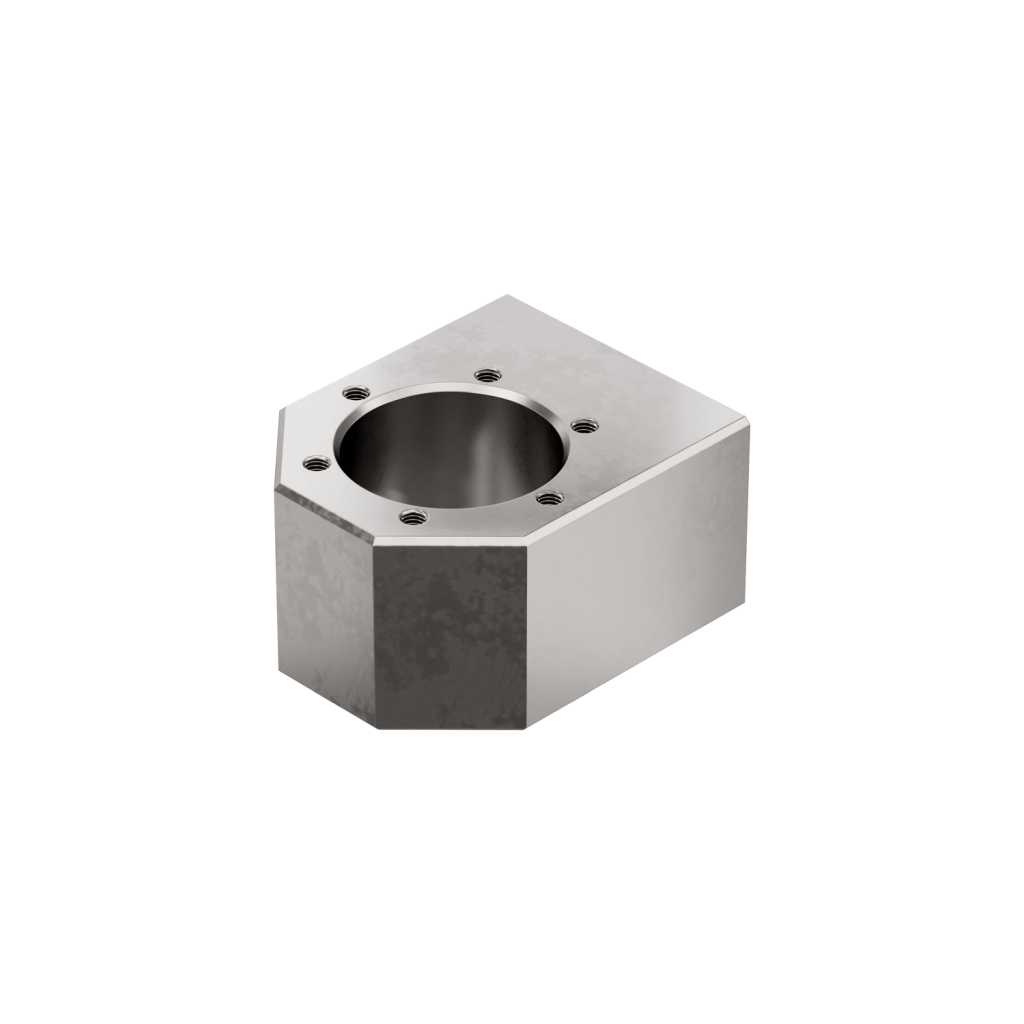

Driving flange TRMFL for flange nut FM

Material:	Steel, corrosion-resistant

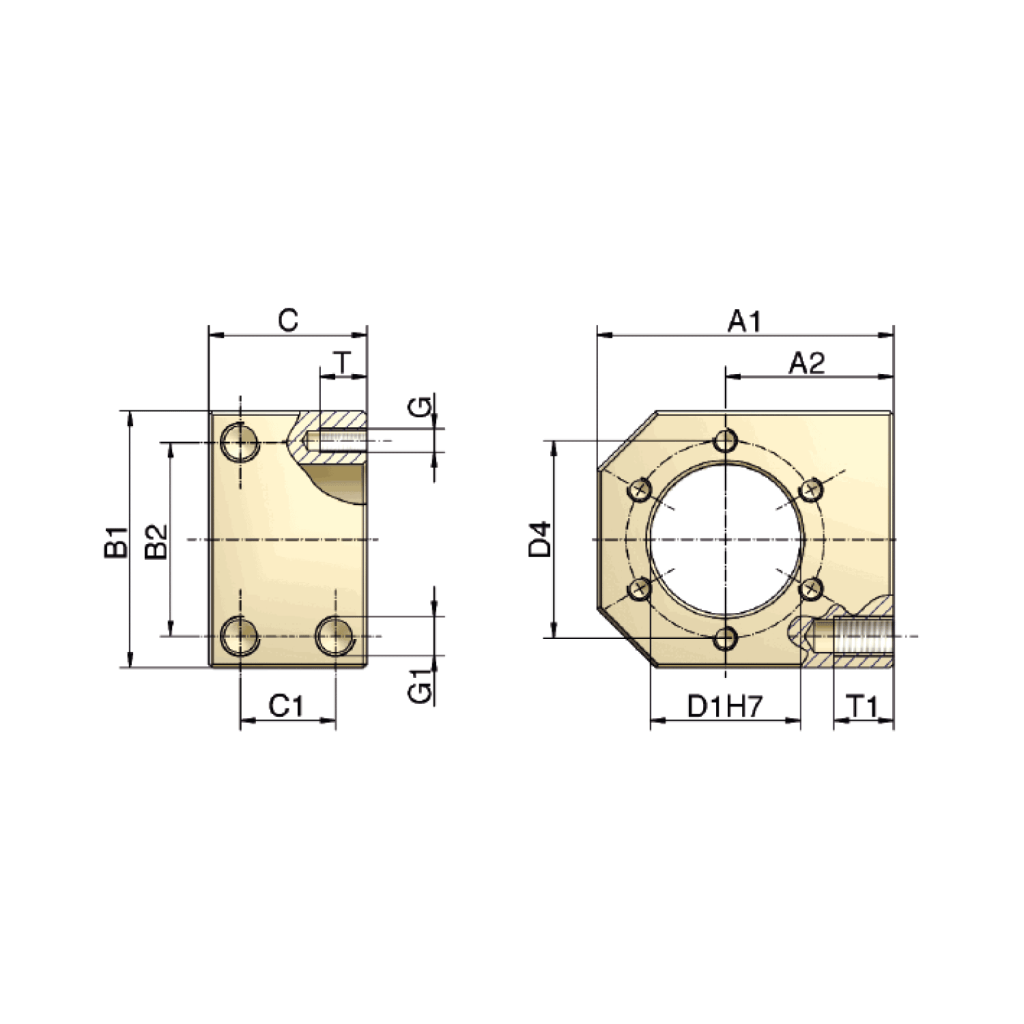

Size	A1	A2max¹⁾	A2min¹⁾	B1	B2	C	C1	G1xT1	D1	D4	GxT	kg
2.5 kN	60	35	25	50	34	40	24	M8x15	28	38	M5x10	0.7
5 kN	60	35	25	50	34	40	24	M8x15	28	38	M5x10	0.7
10 kN	68	37.5	29	58	39	40	24	M8x15	32	45	M6x12	0.9
25 kN	75	42.5	32.5	65	49	40	24	M10x15	38	50	M6x12	1.1
35 kN	120	70	50	100	76	65	41	M14x25	63	78	M8x14	4.5

1) Supplied ex-works with size A2max! Can be machined by the customer to A2min.

Dimensions for other sizes on request.
