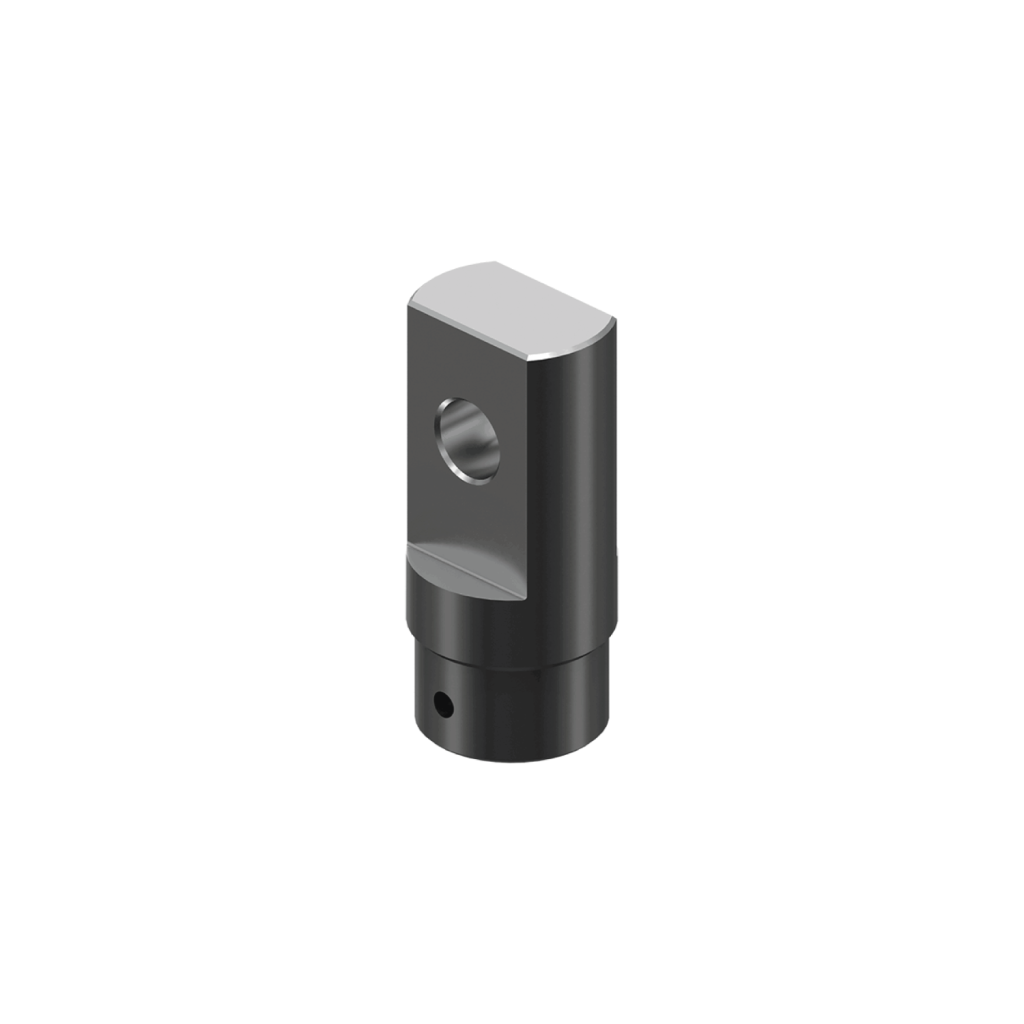

| Steel, corrosion-resistant incl. set screw |

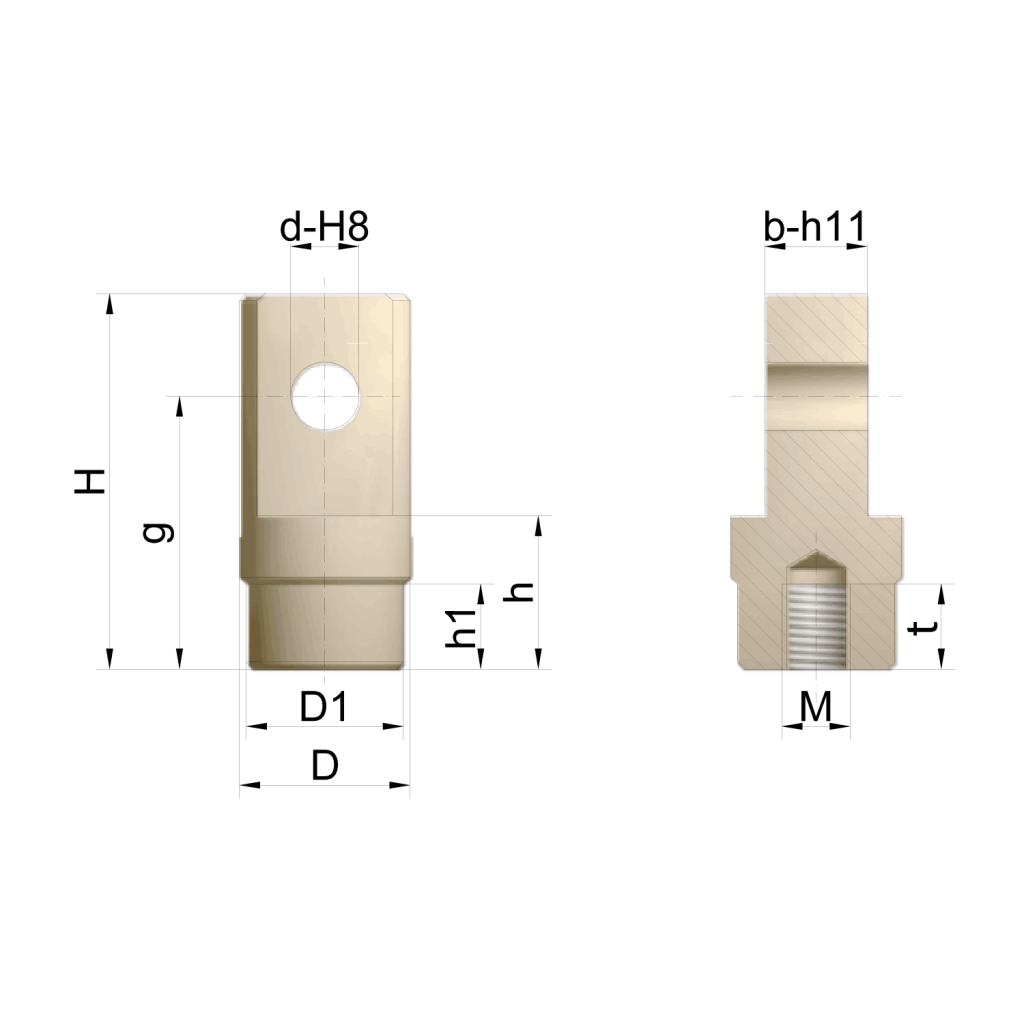

| Size | H | D | D1 | d | M | g | b | h | h1 | t | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 kN | 65 | 30 | 29 | 12 | M12 | 48 | 18 | 25 | 20 | 22 | 0.25 |
| 10 kN | 80 | 40 | 39 | 14 | M14 | 56 | 24 | 25 | 20 | 25 | 0.56 |
| 25 kN | 110 | 50 | 46 | 20 | M20 | 80 | 30 | 45 | 25 | 25 | 1.2 |
| 35 kN | 130 | 65 | 60 | 30 | M30 | 92 | 35 | 50 | 30 | 33 | 2.1 |
| 50 kN | 130 | 65 | 60 | 30 | M30 | 92 | 35 | 50 | 30 | 33 | 2.1 |
| 100 kN | 144 | 90 | 85 | 35 | M36 | 108 | 40 | 65 | 40 | 55 | 4.4 |
| 150 kN | 210 | 100 | 90 | 50 | M42x2 | 155 | 57 | 90 | 50 | 70 | 8 |
Dimensions for other sizes on request.
