| POM incl. set screw | |
| Solid bronze | |
| Steel | |

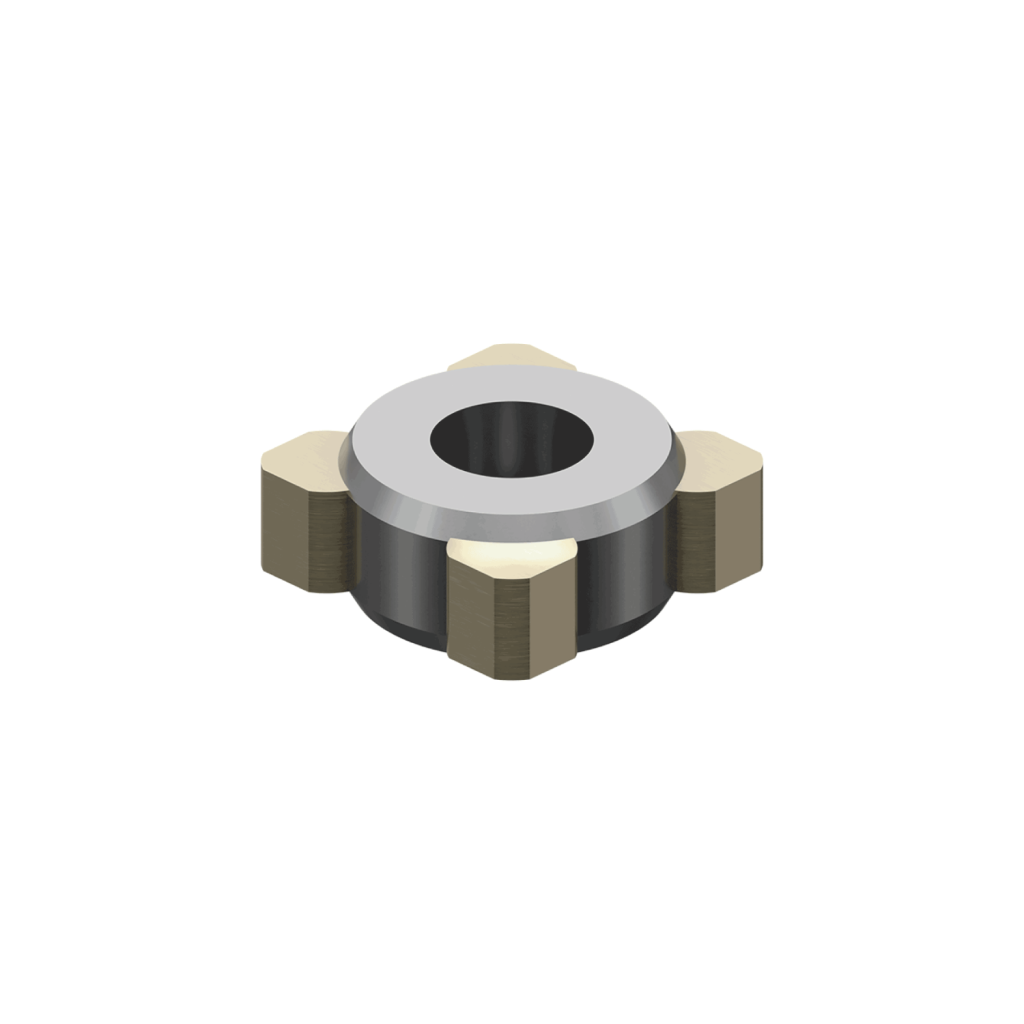

| Rotation protection is required if the screw is not fixed to the load so that it can not rotate, or is installed in combination with limit switches or the rod end KGK. |

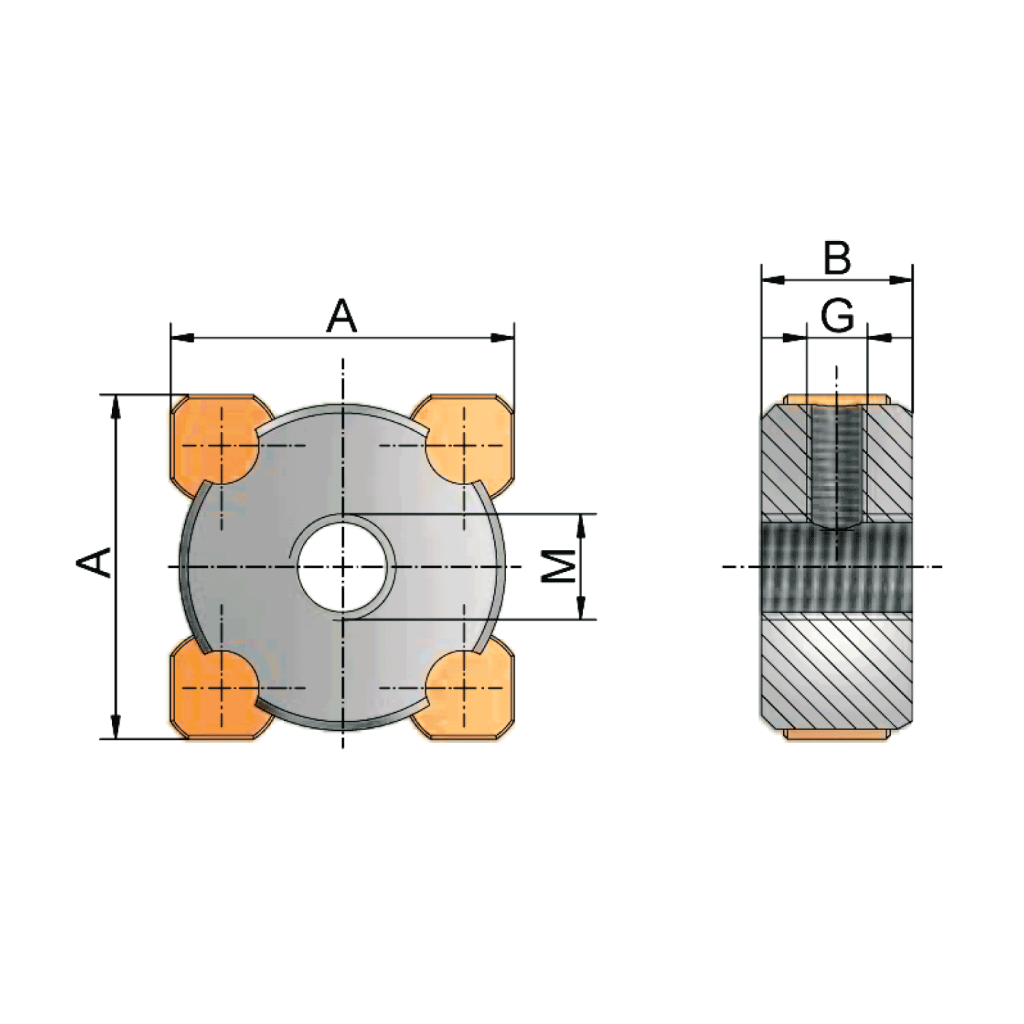

| Size | A | B | G | M | kg |
|---|---|---|---|---|---|
| 2.5 kN | 31×21 | 15 | Ø3 | M10 | 0,01 |
| 5 kN | 31 | 15 | M6 | M12 | 0,1 |
| 10 kN | 46 | 20 | M8 | M14 | 0,23 |
| 25 kN | 46 | 20 | M8 | M20 | 0,23 |
| 35 kN | 56 | 30 | M8 | M24 | 0,65 |
| 50 kN | 84 | 30 | M10 | M30 | 1,27 |
| 100 kN | 84 | 30 | M10 | M36 | 1,2 |
| 150 kN | 114 | 30 | M12 | M48x2 | 2,15 |
Dimensions for other sizes on request.
