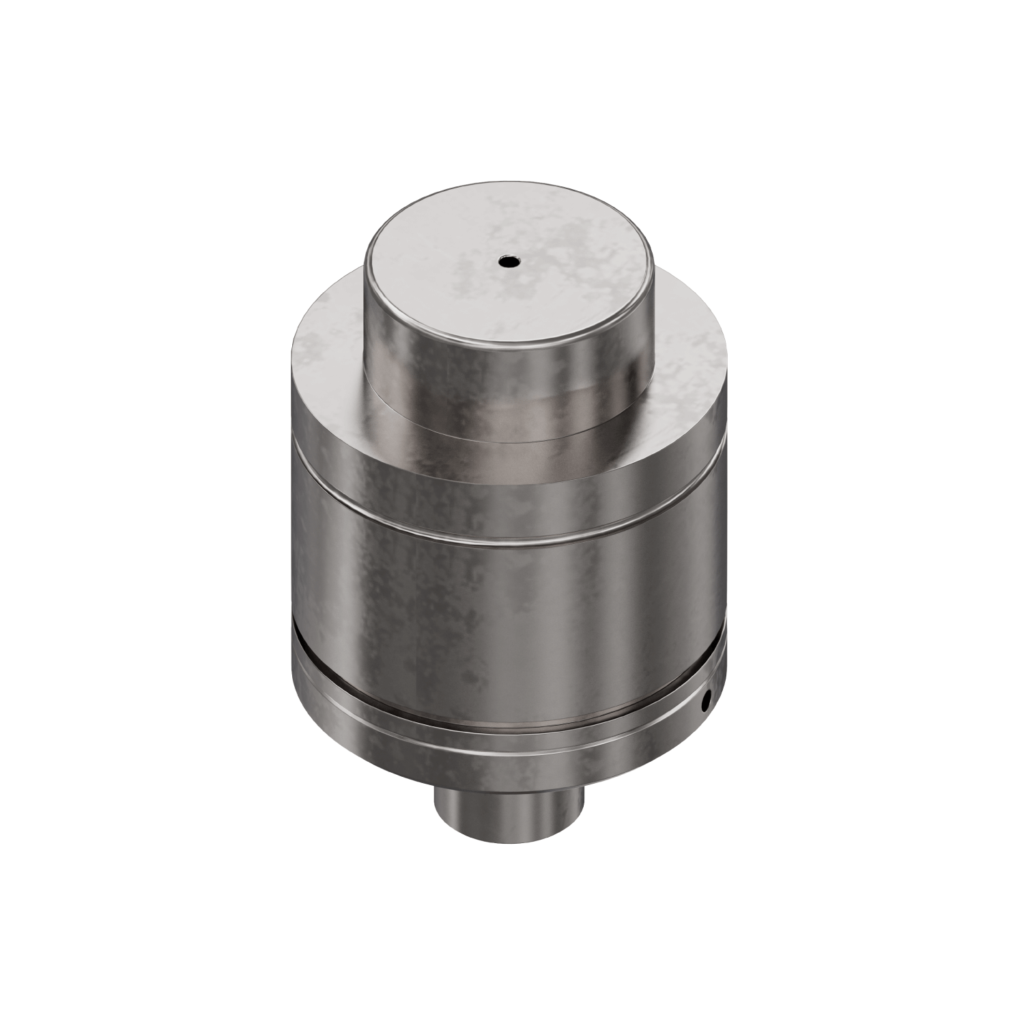

Load damper LAD

Material:	Steel

Function:
The load damper provides the actuator with a physical buffer that reduces impacts in case of a blockage. Additionally, the motor can be switched off or braked during the spring travel, preventing damage to the system.

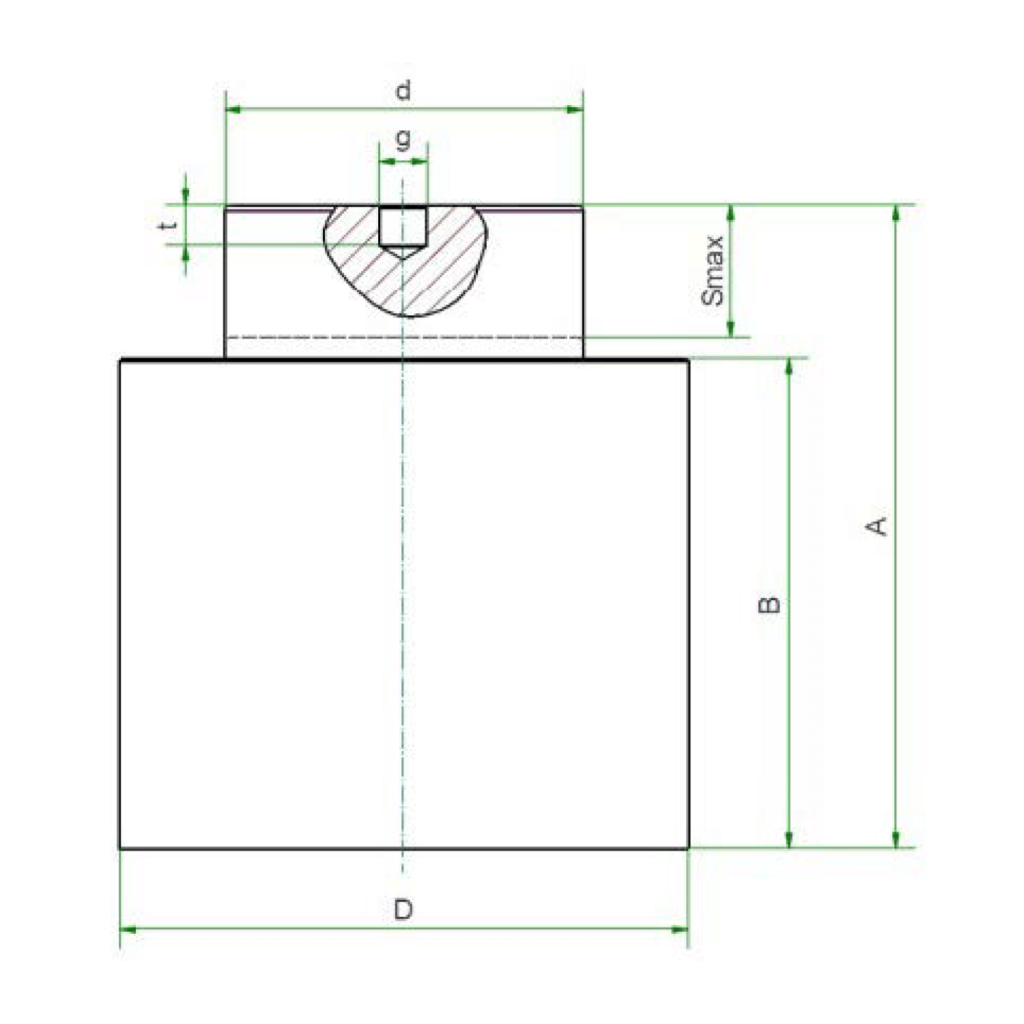

Size	max. dynamic force	max. impacts/min (20°C)	Smax	A	B	D	d	G	T
25 kN	15 kN	60	22	95	69	75.2	45	M8	6
50 kN	30 kN	59	22	108	82	95	60	M8	6
100 kN	60 kN	45	22	108	82	120	75	M8	8
200 kN	18 kN	34	22	128	100	150	100	M8	18

Length calculations

	KGT32x5	KGT32x10	KGT32x20	KGT40x5	KGT40x10	KGT40x20	KGT50x10	KGT50x20	KGT80x10	KGT80x20
ZA	25			50			100		200
L1	451	461	501	540	540	575	705	760	838	893
L2	234	239	264	269	269	289	382	417	474	509
L3	29	34	49	32	32	47	37	57	40	60
SP1	29	34	49	32	32	47	37	57	40	60
SML1	105	110	125	112	112	127	156	176	239	259
SML2	129	129	139	157	157	162	226	241	235	250
