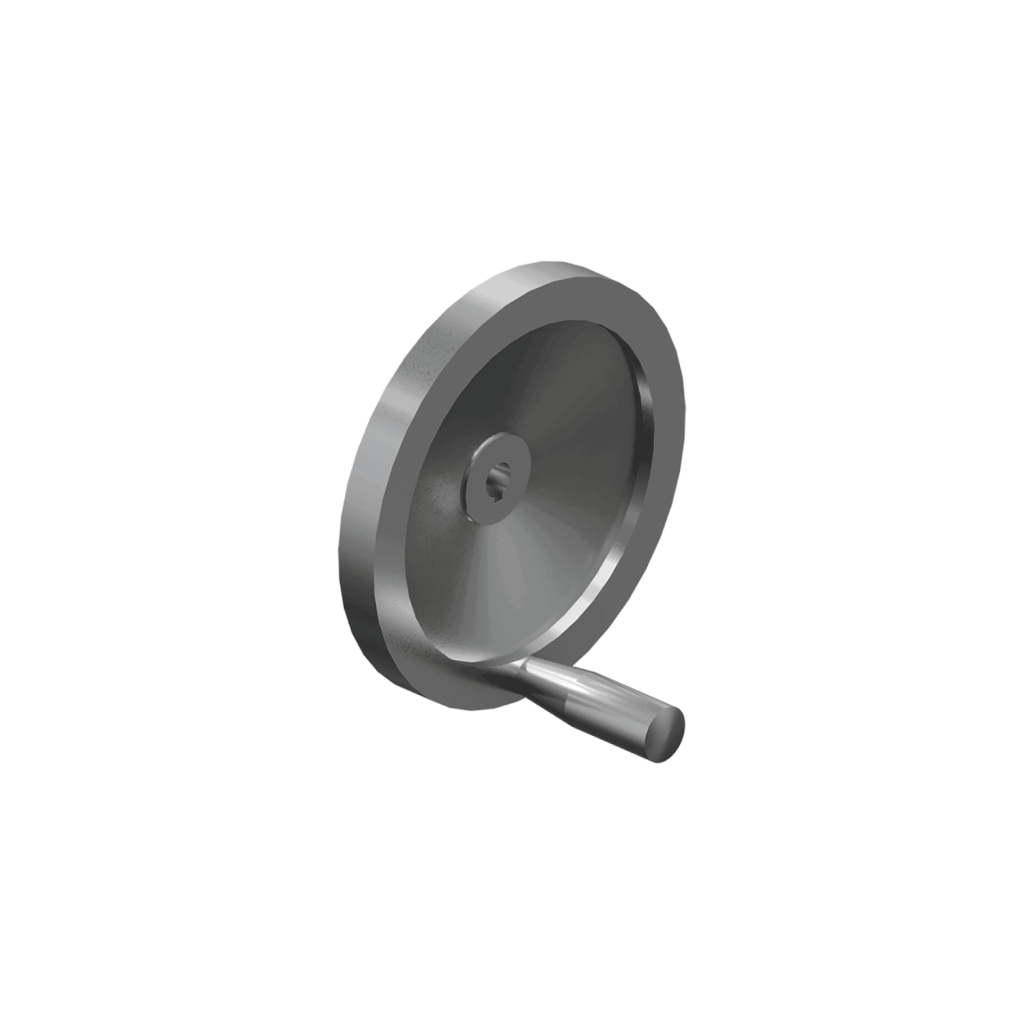

Handwheel HR

Material:	Aluminium, plastic (handle)

Please note:
No more than max. 50 – 60 N force should be required at the handle.

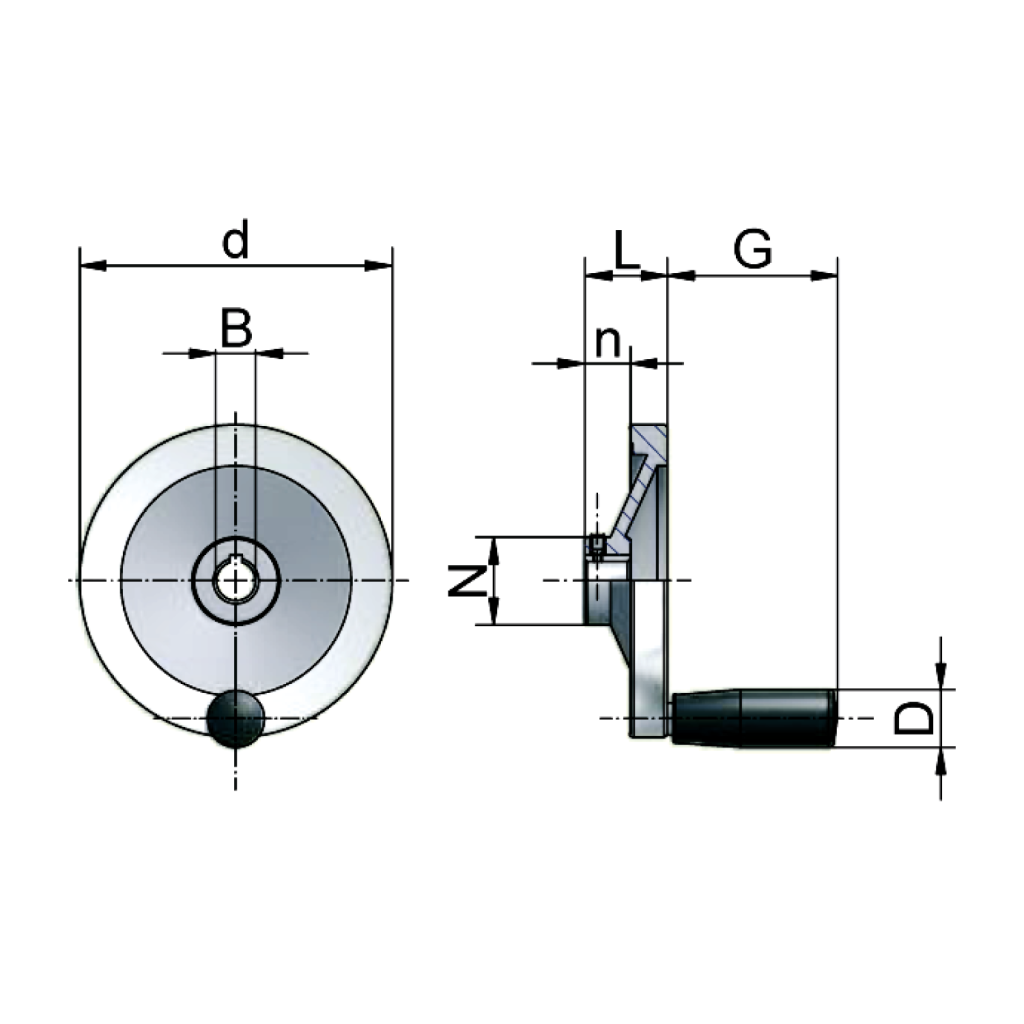

Gear size	d	N	b	n	L	G	D	B H7 Pilot hole	B H7 with nut	kg
2.5 kN	80	26	13	16	26	42.5	18	8	9/11	0.16
5 kN	80	26	13	16	26	42.5	18	8	9/11	0.16
10 kN	125	31	15	18	33	67.5	23	6	11/14	0.3
25 kN	160	36	18	20	39	82.5	26	6	14/16/19	0.5
35 kN	200	42	20.5	24	45	82.5	26	16	16/19/20	1
50 kN	250	48	23	28	51	92.5	28	22	20/25	1.3
