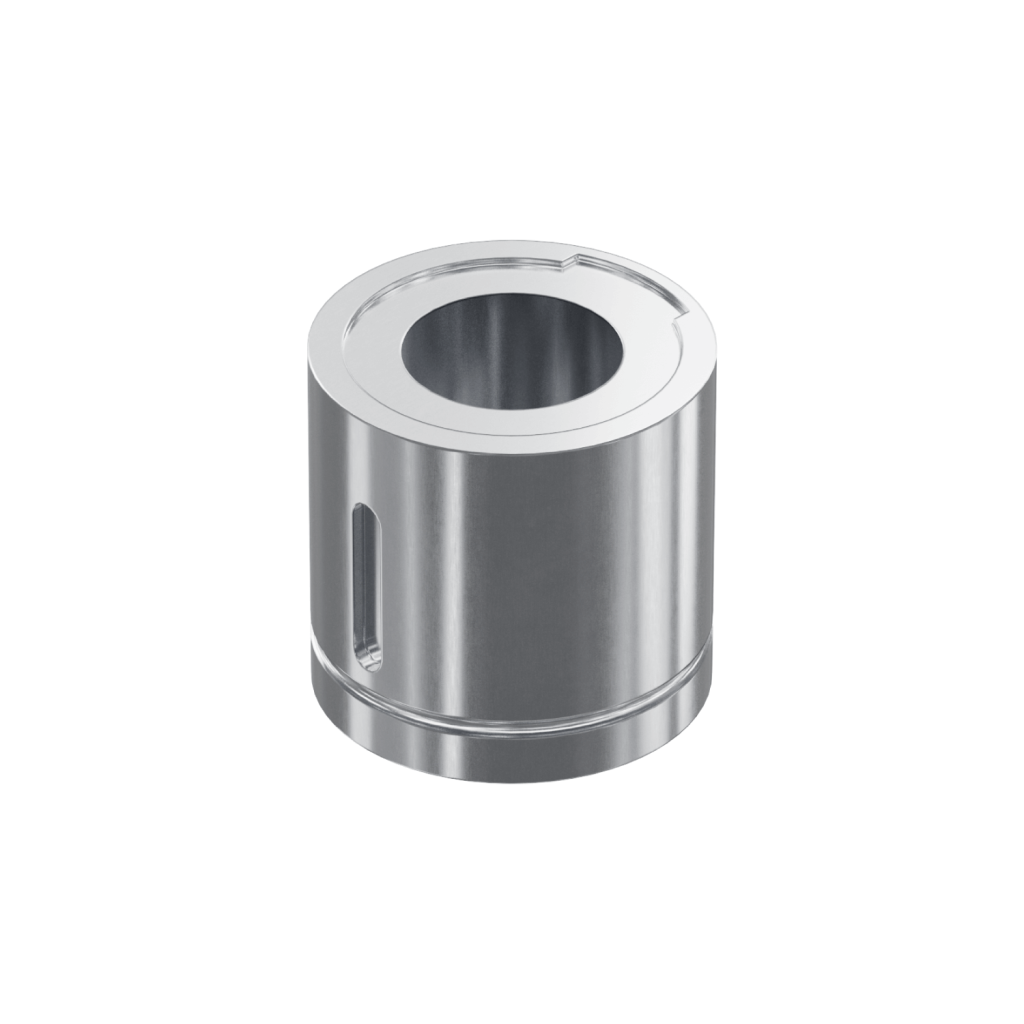

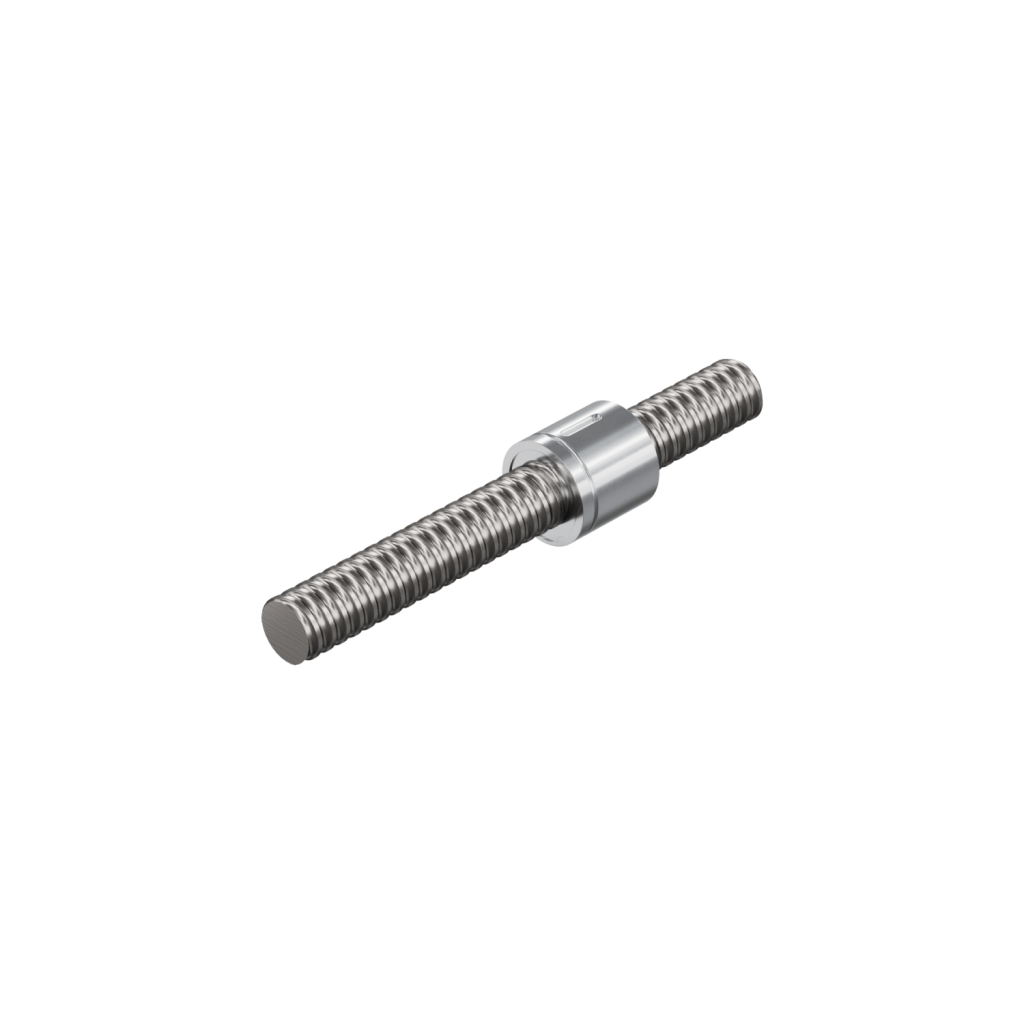

Ball screw with cylinder nut KGT-Z

Material – screw:	1.1213 (Cf 53) inductively hardened and polished
Material – nut:	16MnCr5
Pitch accuracy:	Up to 300 mm +/- 0.05 mm

Caution:
The 35 kN size is not available for the S-version.

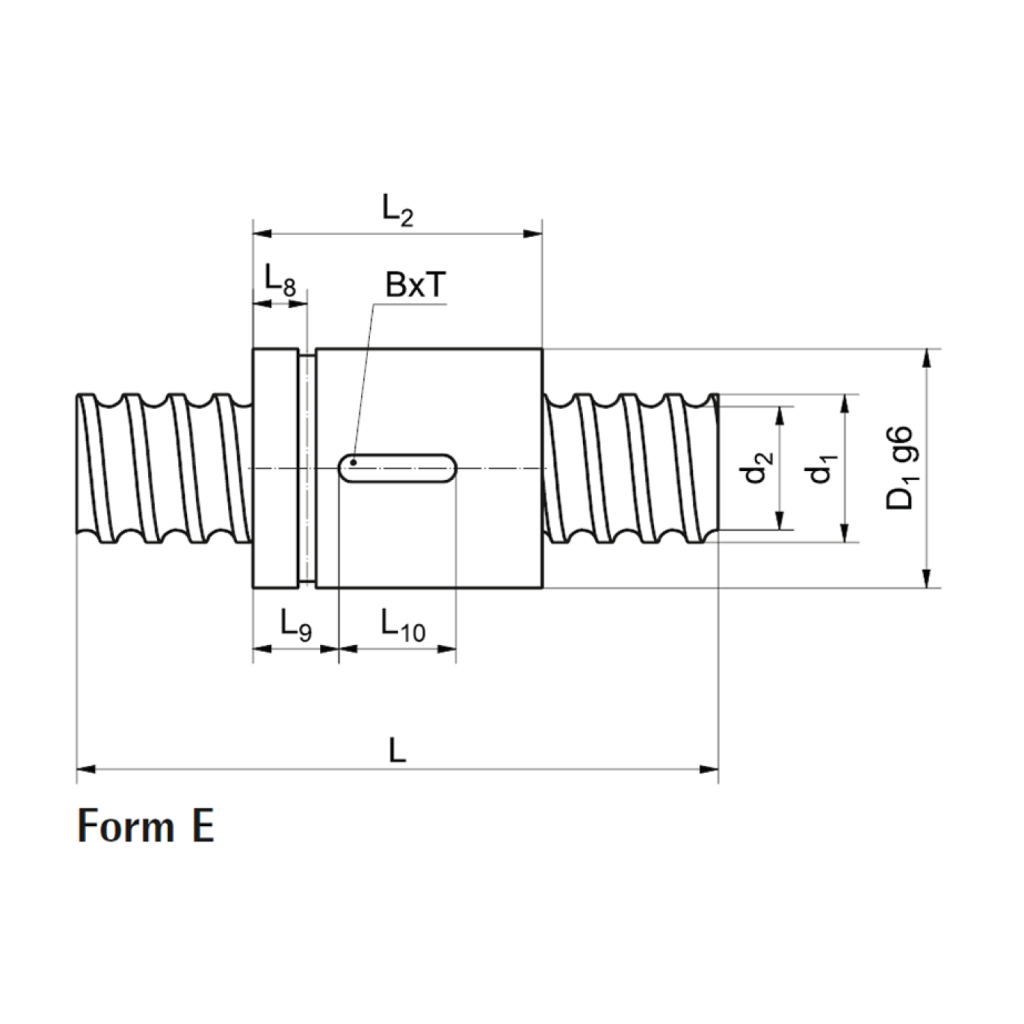

Size	KGT	Design	DN	D1	D2	D1 mm	L2	L8	L9	L10	B×T	Axial play max. mm	Number of circulations	Load rating kN C	Load rating kN C0=Coa
5 kN	16×5	E	16	15.5	12.9	28	34	7	7	20	5×2	0.08	3	9.3	13.1
5 kN	16×10	E	16	15.4	13	28	50	7	15	20	5×2	0.08	6	15.4	26.5
10 kN	25×5	E	25	24.5	21.9	40	34	7	7	20	5×2	0.08	3	12.3	22.5
10 kN	25×10	E	25	24.5	21.9	40	45	7.5	12.5	20	5×2	0.08	3	13.2	25.3
10 kN	25×25	S	25	24.5	22	40	35	11.5	11	13	5×3	0.08	5	16.7	32.3
10 kN	25×50	S	25	24.1	21.5	40	58	17	19	20	5×3	0.15	5	15.4	31.7
25 kN	32×5	E	32	31.5	28.9	50	45	7.5	8	30	6×2.5	0.08	5	21.5	49.3
25 kN	32×10	E	32	32.7	27.3	53	60	10	15	30	6×2.5	0.08	3	30.8	54.5
25 kN	32×20	E	32	31.7	27.9	53	70	7.5	20	30	6×2.5	0.08	4	32.9	59.8
25 kN	32×40	S	32	30.9	28.3	53	45	13	10	25	6×4	0.08	4	14.9	32.4
35 kN	40×5	E	40	39.5	36.9	63	45	7.5	8	30	6×2.5	0.08	5	23.8	63.1
35 kN	40×10	E	40	39.5	34.1	63	60	10	15	30	6×2.5	0.08	3	38	69.1
35 kN	40×20	E	40	39.7	35.9	63	70	7.5	20	30	6×2.5	0.08	4	33.3	76.1
35 kN	40×40	S	40	38.9	36.3	63	85	15	27.5	30	6×3.5	0.08	8	35	101.9
50 kN	40×5	E	40	39.5	36.9	63	45	7.5	8	30	6×2.5	0.08	5	23.8	63.1
50 kN	40×10	E	40	39.5	34.1	63	60	10	15	30	6×2.5	0.08	3	38	69.1
50 kN	40×20	E	40	39.7	35.9	63	70	7.5	20	30	6×2.5	0.08	4	33.3	76.1
50 kN	40×40	S	40	38.9	36.3	63	85	15	27.5	30	6×3.5	0.08	8	35	101.9
