| Steel C15 / C35 / C45 Stainless / INOX 1.4301 / 1.4305 / 1.4404 | |
| Up to 300 mm +/- 0.3 mm | |
| 1000 mm, 3000 mm, 6000 mm |

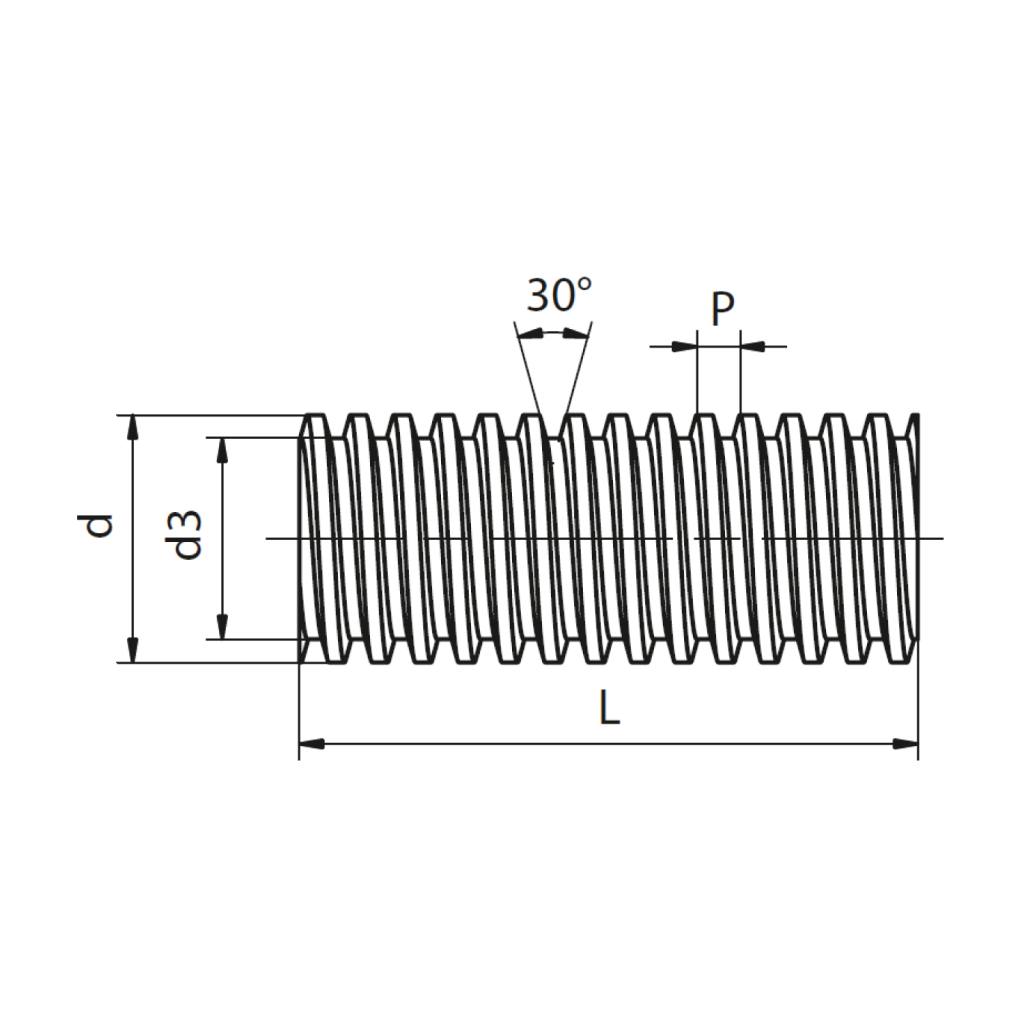

| Size | Tr | d3 (mm) | L | kg |
|---|---|---|---|---|
| 2.5 kN | 16×4 | 10.47 | 1000 | 1.2 |
| 2.5 kN | 16×4 | 10.47 | 3000 | 1.2 |
| 5 kN | 18×4 | 12.47 | 1000 | 1.6 |
| 5 kN | 18×4 | 12.47 | 3000 | 1.6 |
| 10 kN | 20×4 | 14.47 | 1000 | 2.2 |
| 10 kN | 20×4 | 14.47 | 3000 | 2.2 |
| 25 kN | 30×6 | 22.46 | 1000 | 4.2 |
| 25 kN | 30×6 | 22.46 | 3000 | 4.2 |
| 35 kN | 40×7 | 30.38 | 1000 | 8 |
| 35 kN | 40×7 | 30.38 | 3000 | 8 |
| 50 kN | 40×7 | 39.16 | 1000 | 12.7 |
| 50 kN | 40×7 | 39.16 | 3000 | 12.7 |
Dimensions for other sizes on request.
