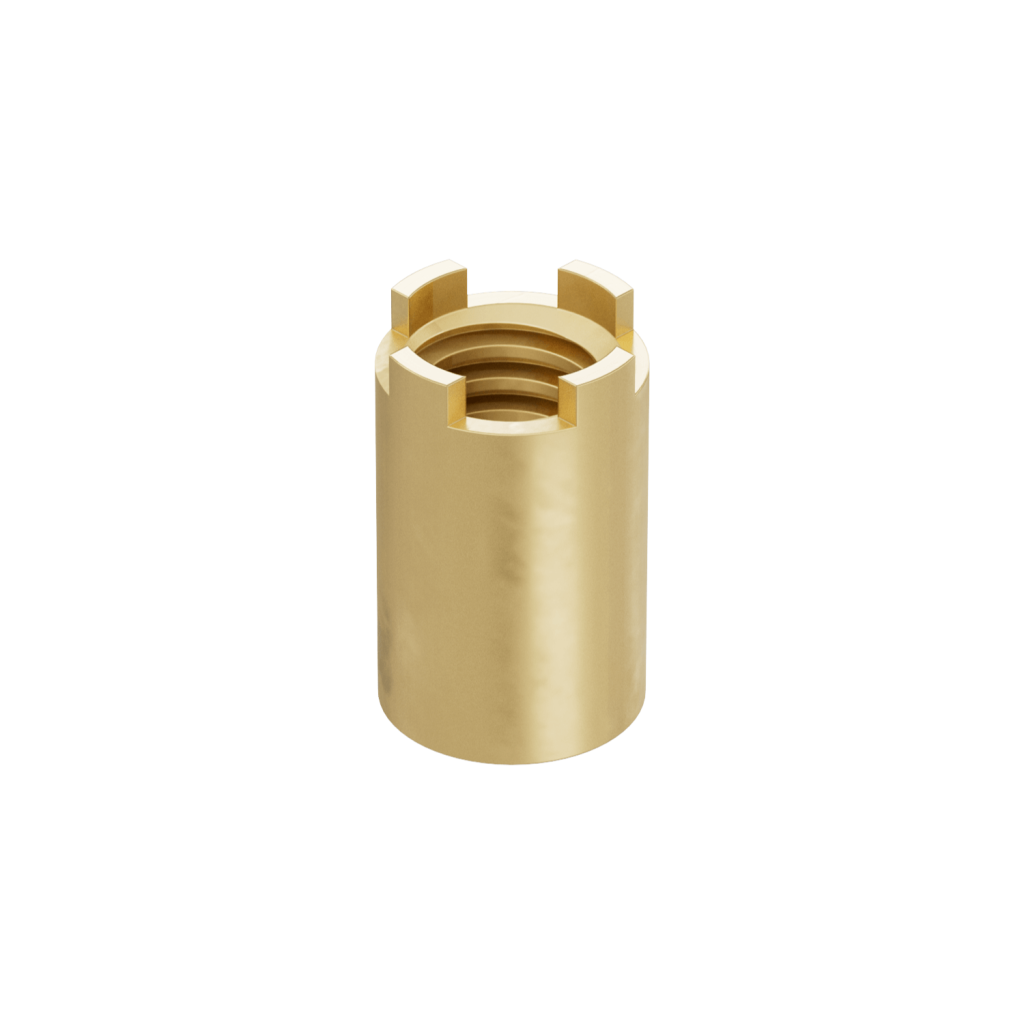

| Red brass (RG7) | |
| In combination with duplex nut or self-aligning nut. |

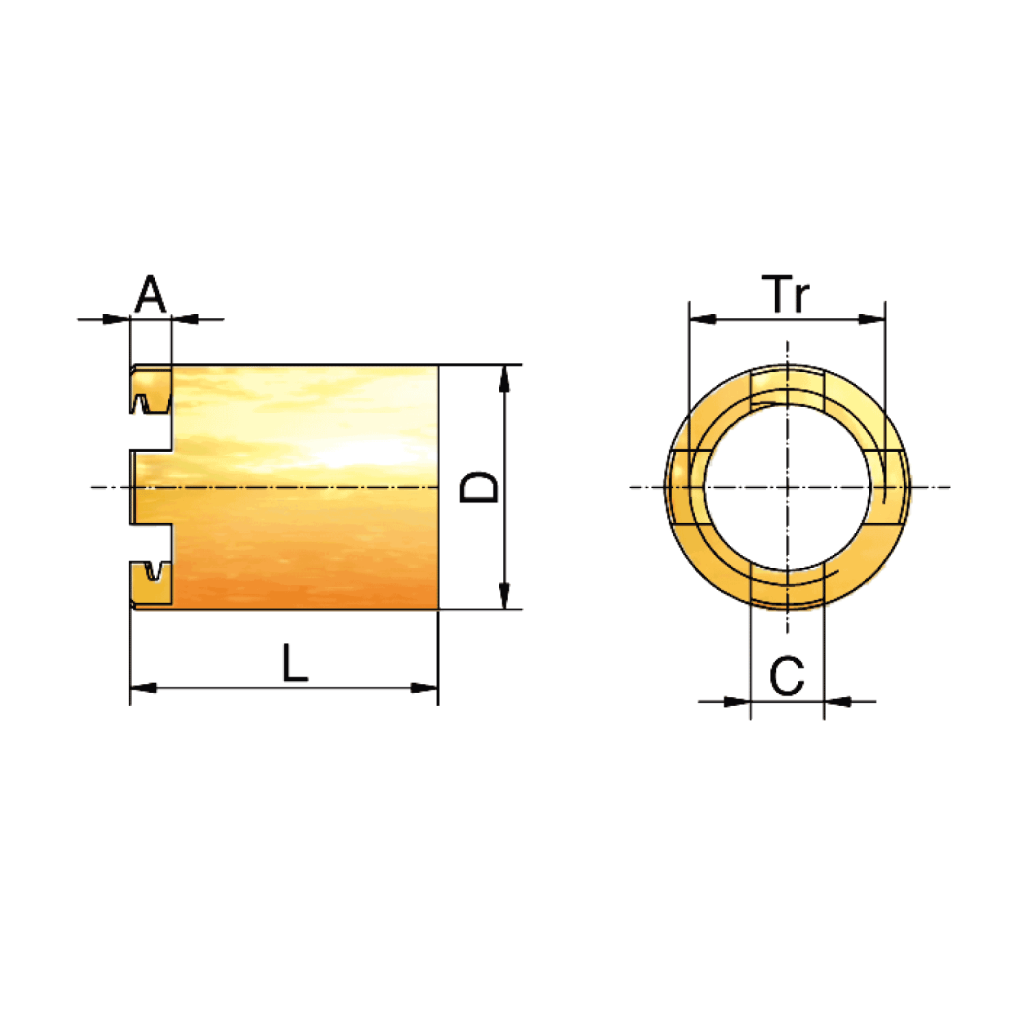

| Size | Tr | A | C | D | L | kg |
|---|---|---|---|---|---|---|
| 2.5 kN | Tr 16×4 | 6 | 6 | 22 | 28 | 0.05 |
| 5 kN | Tr 18×4 | 6 | 6 | 24 | 28 | 0.1 |
| 10 kN | Tr 20×4 | 6 | 8 | 28 | 42 | 0.1 |
| 25 kN | Tr 30×6 | 7 | 12 | 38 | 47.5 | 0.2 |
| 35 kN | Tr 40×7 | 8.5 | 15 | 50 | 67 | 0.5 |
| 50 kN | Tr 40×7 | 8.5 | 15 | 50 | 67 | 0.5 |
| 100 kN | Tr 55×9 | 10 | 20 | 65 | 87 | 1.1 |
| 150 kN | Tr 60×9 | 10 | 20 | 70 | 100 | 1.2 |
Dimensions for other sizes on request.
