| Aluminum, hard anodized | |
| PA6 GF15 | |
| Plastic, high-performance ploymer |
Please note:

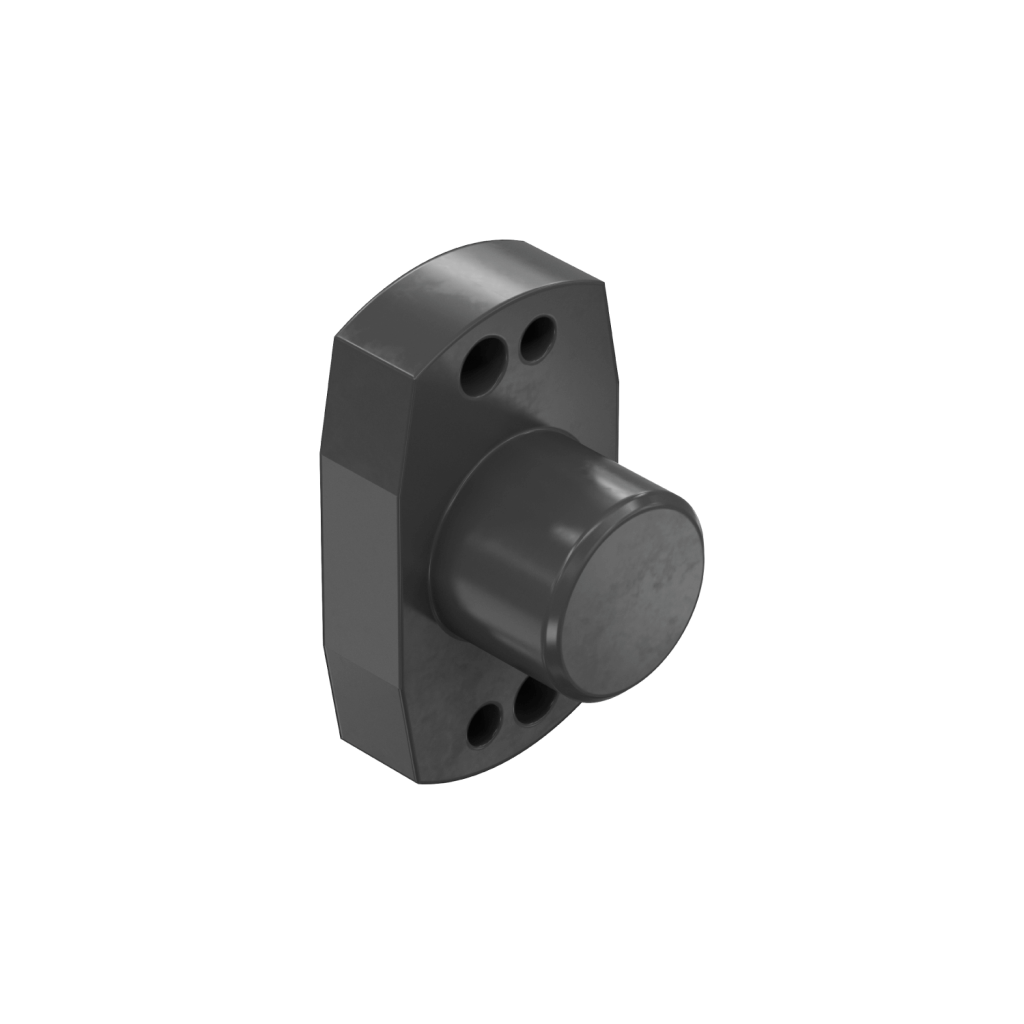

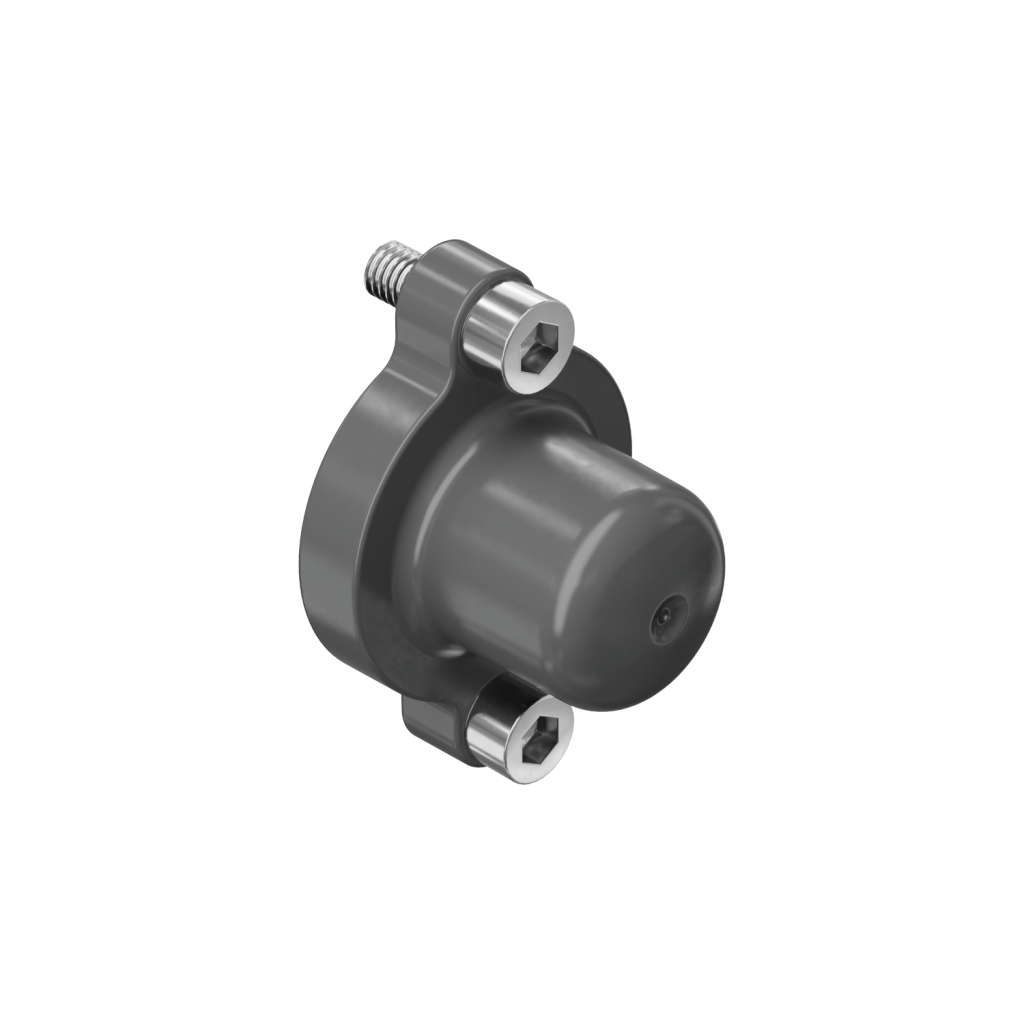

Suitable for screw jacks ZE, Z, GSZ and KSZ-H bevel gearbox. For bevel gearboxes, the protective cap must be the same size as the motor flange.

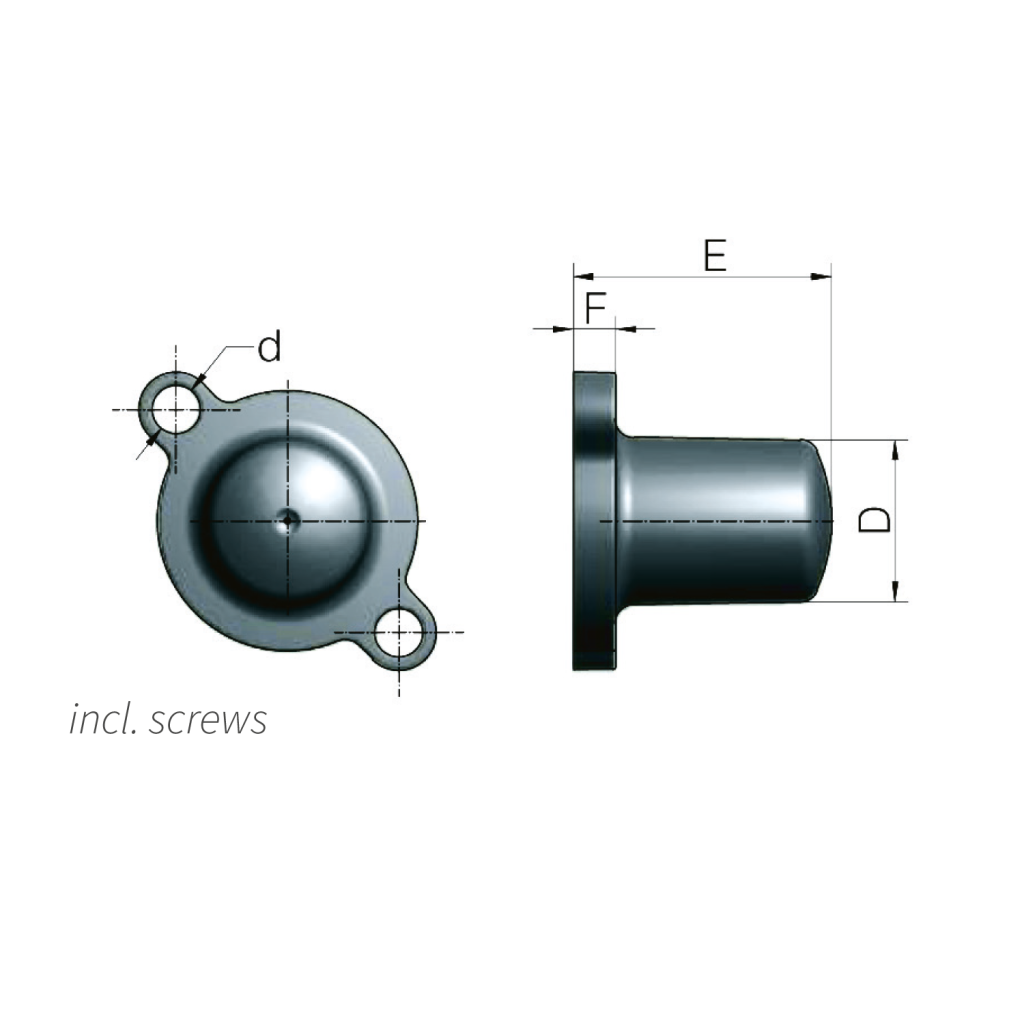

| Gear size | D | d | E | F | Screws DIN 912 | kg |
|---|---|---|---|---|---|---|

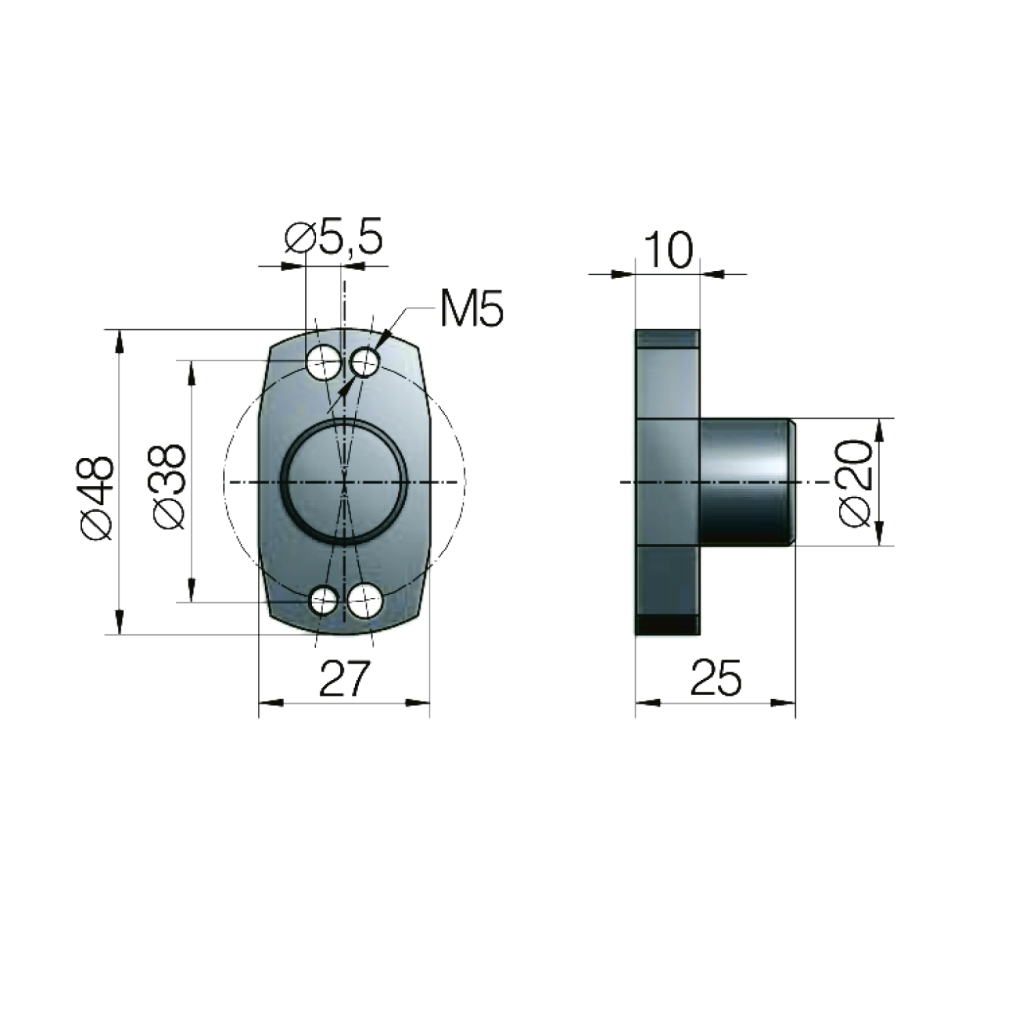

| 2.5 kN | 20 | value_5point5_m5 | 25 | 10 | M5x55 | 0.05 |
| 5 kN | 25 | 7 | 32 | 8 | M6x16 | 0.02 |
| 10 kN | 30 | 9 | 32 | 8 | M8x16 | 0.04 |
| 25 kN | 31 | 9 | 49 | 8 | M8x16 | 0.05 |
| 35 kN | 35 | 11 | 54 | 8 | M10x20 | 0.07 |
| 50 kN | 35 | 11 | 55 | 8 | M10x20 | 0.08 |
| 100 kN | 46 | 13.5 | 74 | 8 | M12x25 | 0.12 |
| 150 kN | 46 | 13.5 | 74 | 8 | M12x25 | 0.12 |
Dimensions for other sizes on request.
