Name: Limit switch ES
SKU: acc-s-esset
Availability: InStock

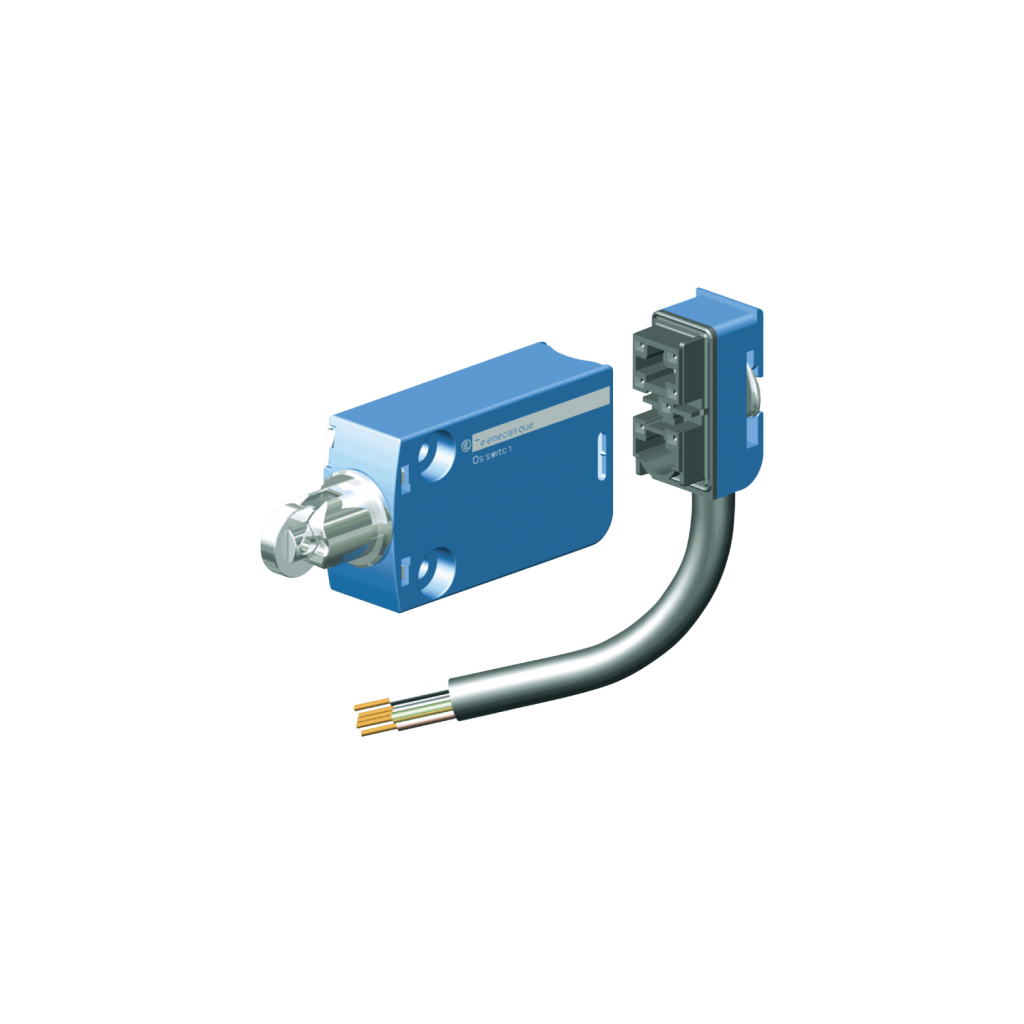

Type:	Mechanical limit swith with positively-actuated NC r
Material:	Metal housing and roller plunger
Mode of operation:	1Ö + 1S, snap action contacts
Protection class:	IP67
Temperature range:	-40°C to +70°C
Material – cable standard:	PVC black Ø 7,3 mm, 5 x 0,75 mm²
Temperature range:	-25°C to +70°C
Temperature range:	-40°C to +105°C (only available on request)
Electrical duty:	Max. 240V AC / 1.5A Max. 250V DC / 0.1A
Electrical service life:	5 million switching operations at 240V DC/3W 1 million switching operations at 230V AC/0,5A
Weight – limit switch:	0.2 kg
Weight – cable (5m):	0.45 kg

Please note:
The limit switch can be mounted on any potential position/side of the protective tube.

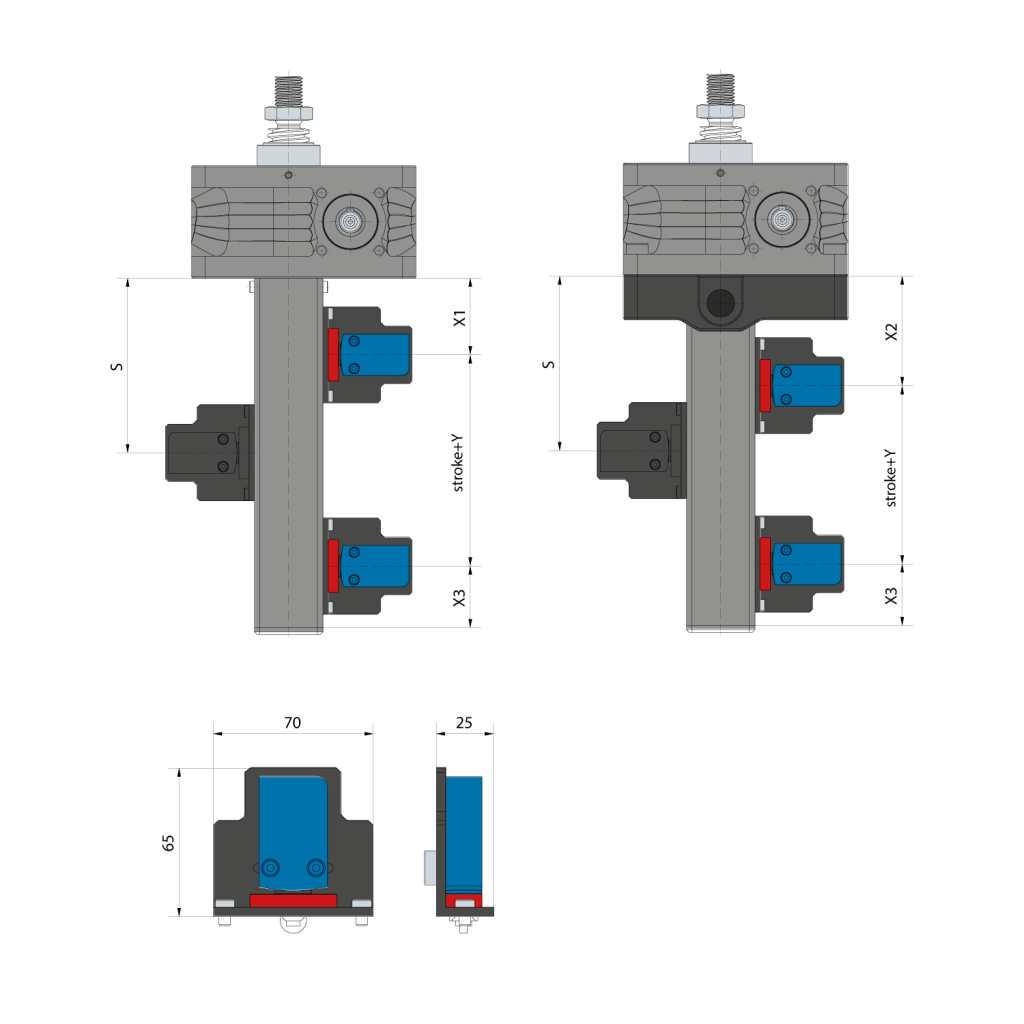

Size	Thread	Dimension	X1	X2	X3	Y
2.5 kN	TR	16×4	48	70	48	21
5 kN	KGT	16×5	49	70	45	25
	KGT	16×10	49	70	45	25
	TR	18×4	49	70	45	25
10 kN	TR	20×4	52	72	45	24
	KGT	25×5	52	72	45	24
	KGT	25×10	52	72	45	24
	KGT	25×25	77	77	68	24
	KGT	25×50	142	142	133	24
25 kN	TR	30×6	56	80	45	24
	KGT	32×5	56	80	45	24
	KGT	32×10	56	80	45	24
	KGT	32×20	56	80	45	24
	KGT	32×40	91	91	78	24
35 kN	TR	40×7	64	90	45	34
50 kN	KGT	40×5	65	90	45	34
	TR	40×7	65	90	45	34
	KGT	40×10	65	90	45	34
	KGT	40×20	65	90	45	34
	KGT	40×40	90	90	68	34
100 kN	KGT	50×10	65	110	45	34
	KGT	50×20	70	110	48	34
	KGT	50×40	110	110	88	34
	TR	55×9	65	110	45	34
150 kN	TR	60×9	70	120	45	34
	KGT	63×10	70	120	45	34
	KGT	63×20	75	120	48	34
	KGT	63×40	115	120	88	34
	KGT	63×60	155	155	128	34
