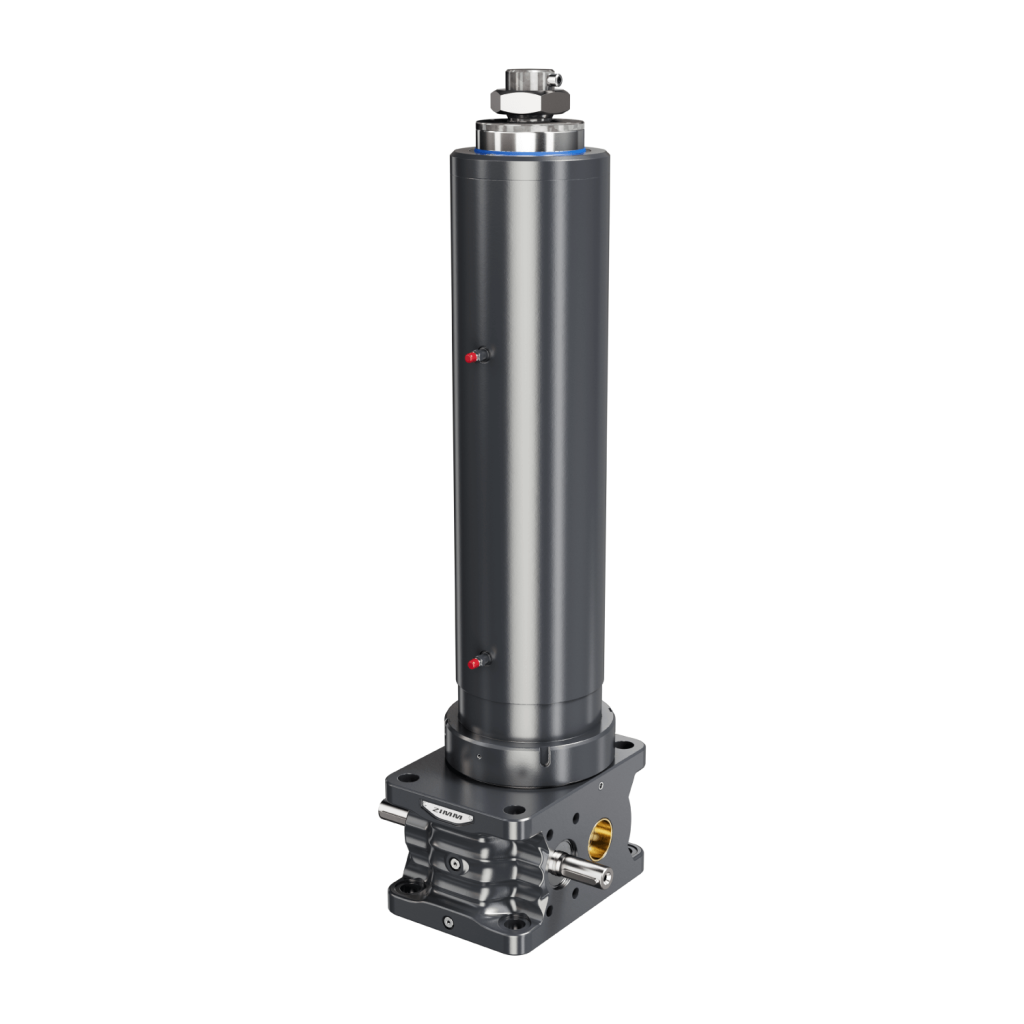

| 200 kN | |
| 80×20 | |
| 1500 rpm | |
| 1800 rpm | |
| 710.8 | |
| 1,163.7 | |
| 0.06 | |
| Aluminium, corrosion-resistant | |
| Steel, case-hardened, ground | |
| steel | |
| Steel chrome plated | |
| 112 kg | |
| 11 kg | |
| Synthetic fluid grease | |
| Grease lubrication | |
| max. 60°, higher on request | |
| N: 11.5 kg cm² / L: 7.99 kg cm² | |
| max. 155 Nm (N) / max. 39.3 Nm (L) | |
| max. 770 Nm |
Pivot bushes are incorporated in the gearbox housing. Swivel bushes can be subjected to the full nominal load with either compression or tension.
Placement
25kN | Front and rear side
50kN, 100kN, 200kN | Lateral
