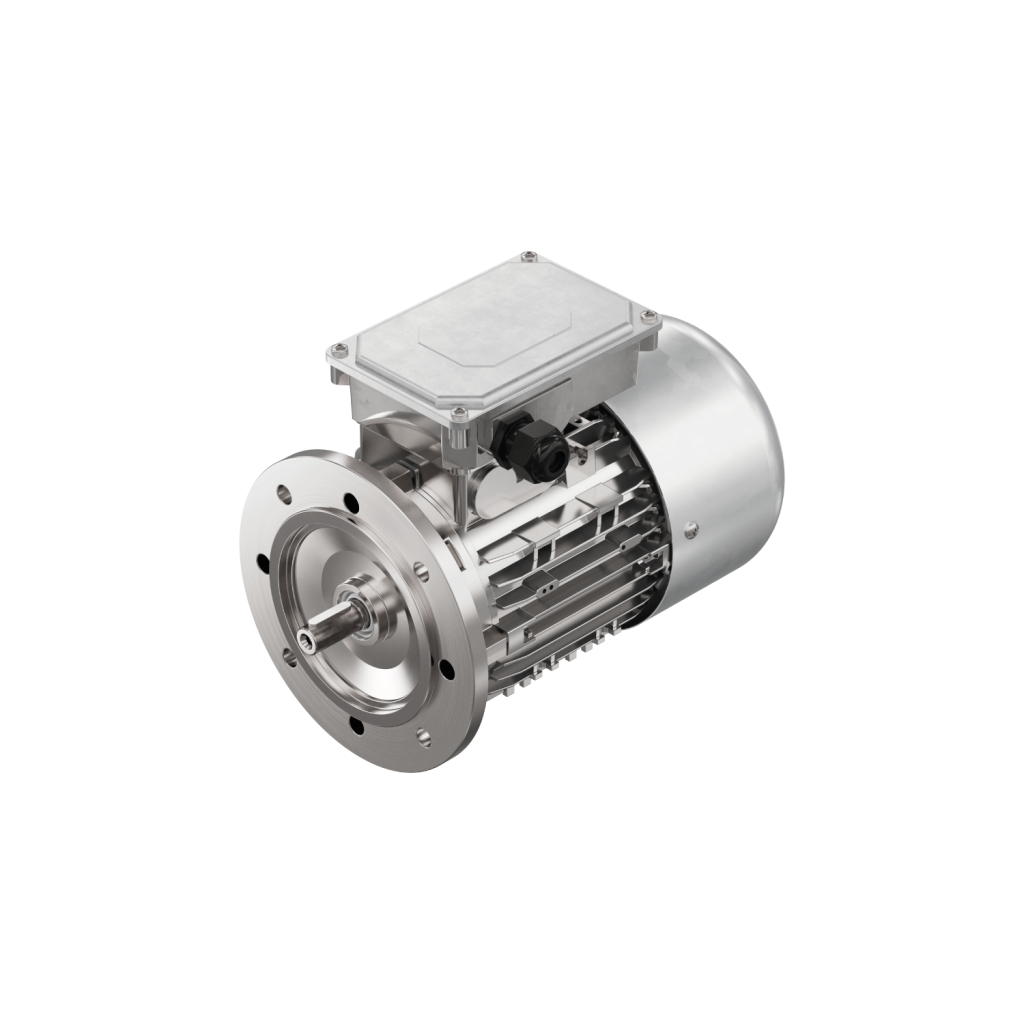

Three-phase AC motors | B5

No-load speed:	~1500 min-1 (andere auf Anfrage)
Operating voltage 230V delta:	Motorwicklung 230/400V
Operating voltage 400V star:	Motorwicklung 400/660V
Three-phase AC motors:	IP 55
Three-phase AC motors with brakes:	IP 54

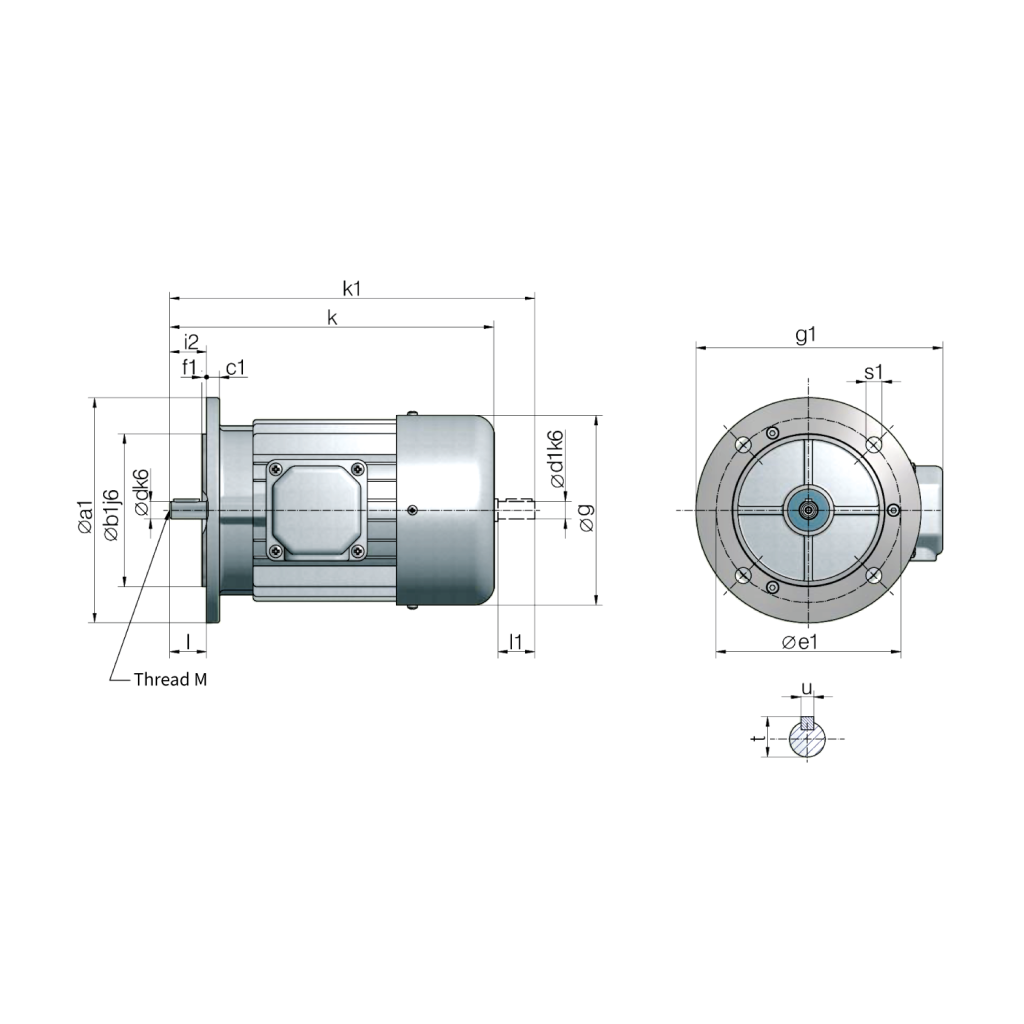

Size	kW	without brake				with brake	with brake and second shaft end				g1	M
Size	(4-pole)	k	k1	d1	l1	k	k	k1	d1	l1	g1	M
63	0,18	212	238	11	23	261	261	285	9	20	172	4
63	0,25	212	238	11	23	239	261	285	9	20	172	4
71	0,37	248	281	14	30	263	295	325	11	23	188	5
71	0,75	248	281	14	30	263	295	325	11	23	188	5
80	0,75	277	315	19	40	305	330	375	19	40	211	6
80	1,5	277	315	19	40	305	330	375	19	40	211	6
90	1,5	329	378	24	50	390	390	432	19	40	227	8
90	2,2	329	378	24	50	348	390	432	19	40	227	8
100	3	369	429	28	60	433	433	487	24	50	248	10
100	4	369	429	28	60	433	433	487	24	50	248	10
