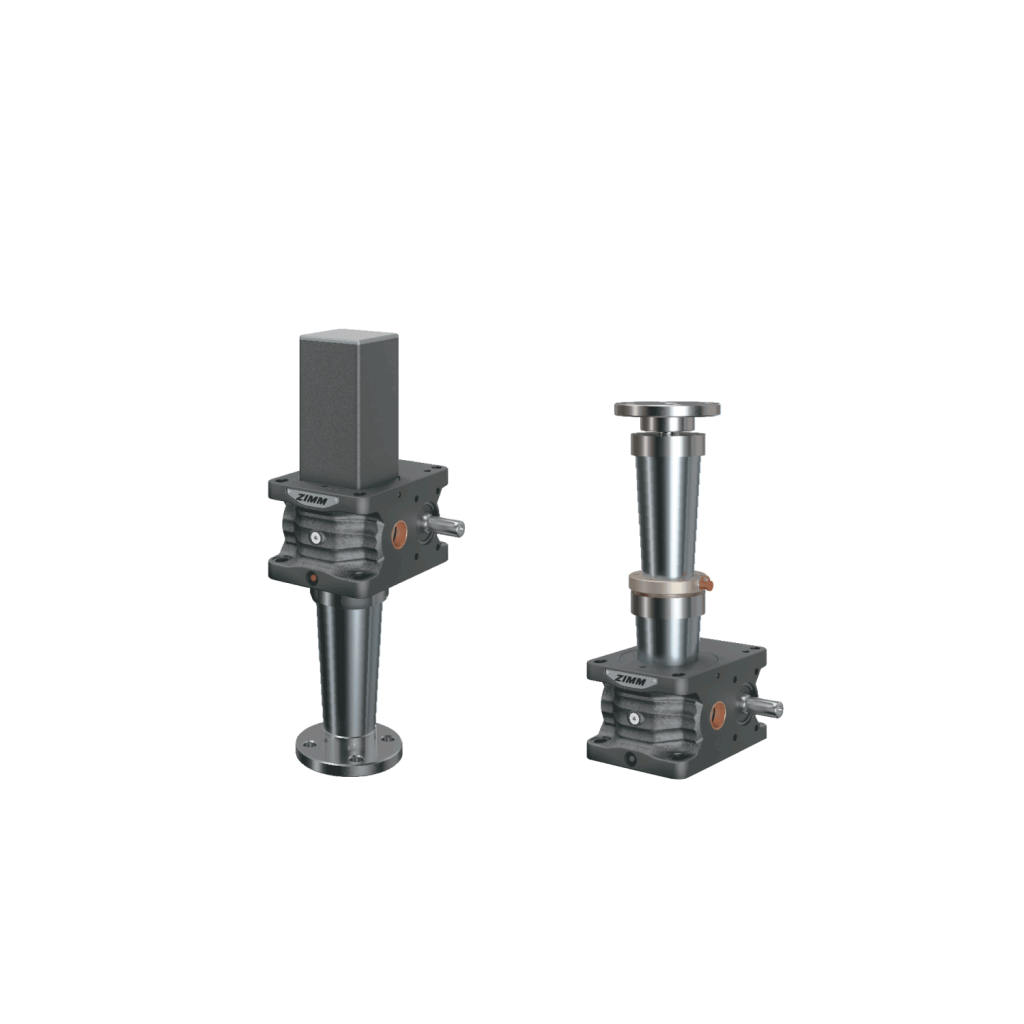

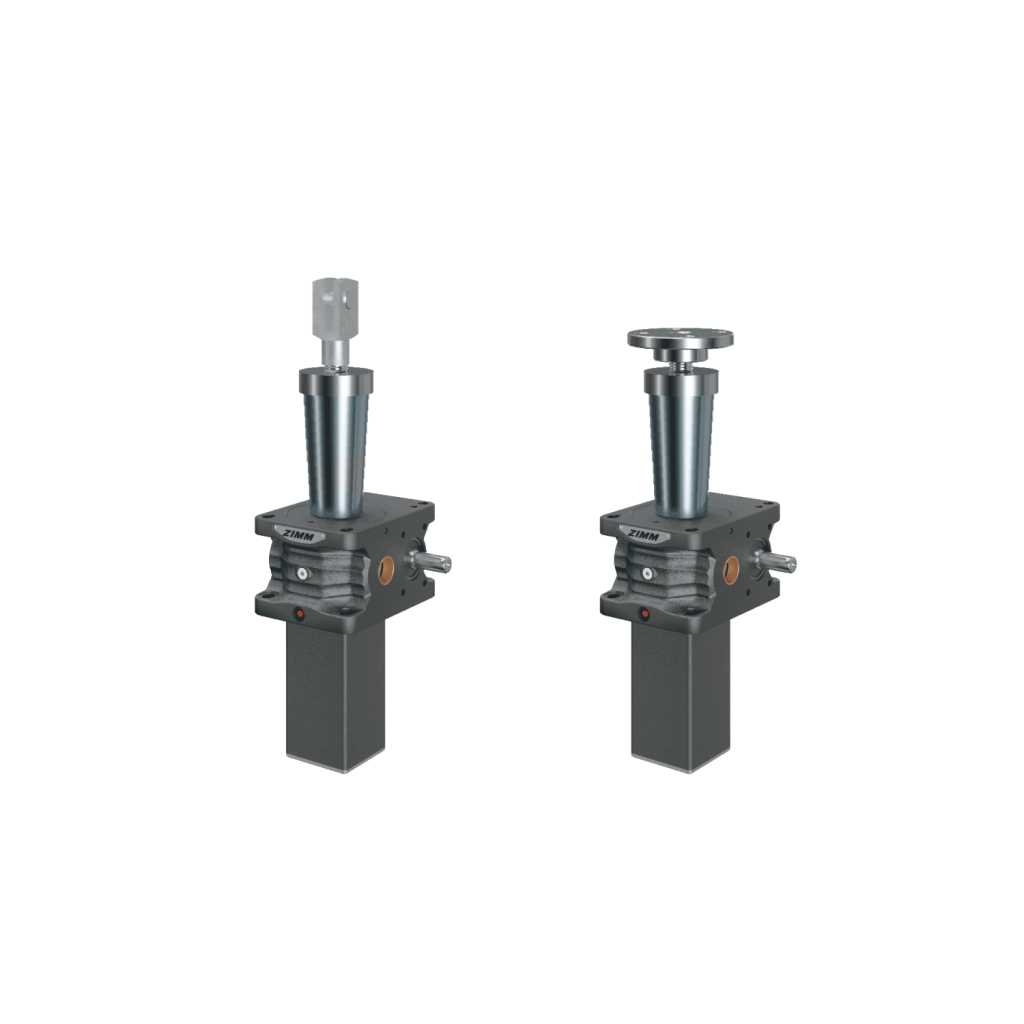

Material – spiral spring:	Spring band steel, blued (stainless steel on request)
Material – centring bushing:	Plastic, high-performance ploymer (other materials on request)

Please note:
The spring travel quoted is the maximum possible. For practical operation, please allow a margin of safety to prevent damage!

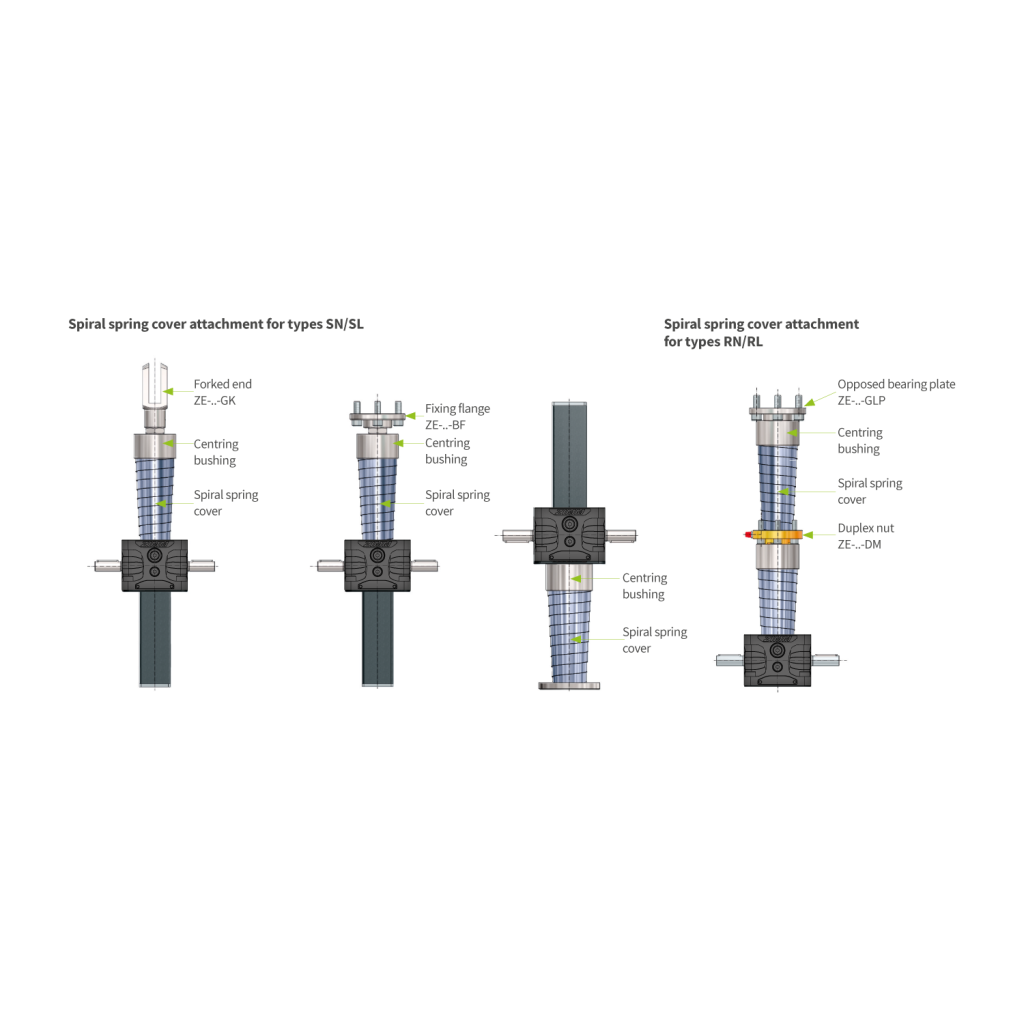

							Centring bushing SFZ
Size	Installation^*	D1	D2	ZD	Lift / stroke	kg	ID	AD	H
5 kN	V	30	53	30	420	0.3	57	61	20
5 kN	H	30	53	30	360	0.3	57	61	20
10 kN	V	40	64	40	410	0.5	69	73	30
10 kN	H	40	64	40	350	0.5	69	73	30
25 kN	V	50	70	50	400	0.6	74	78	36
25 kN	H	50	70	50	300	0.6	74	78	36
35 kN	V	65	88	50	400	0.6	92	96	35
35 kN	H	65	88	50	300	0.6	92	96	35
50 kN	V	65	88	50	400	0.6	92	96	35
50 kN	H	65	88	50	300	0.6	92	96	35
100 kN	V	90	124	75	575	2.8	128	134	50
100 kN	H	90	124	75	425	2.8	128	134	50
150 kN	V	100	138	75	725	3.7	143	149	51
150 kN	H	100	138	75	575	3.7	143	149	51

H = Horizontal installation, V = Vertical installation

Dimensions for other sizes on request.
