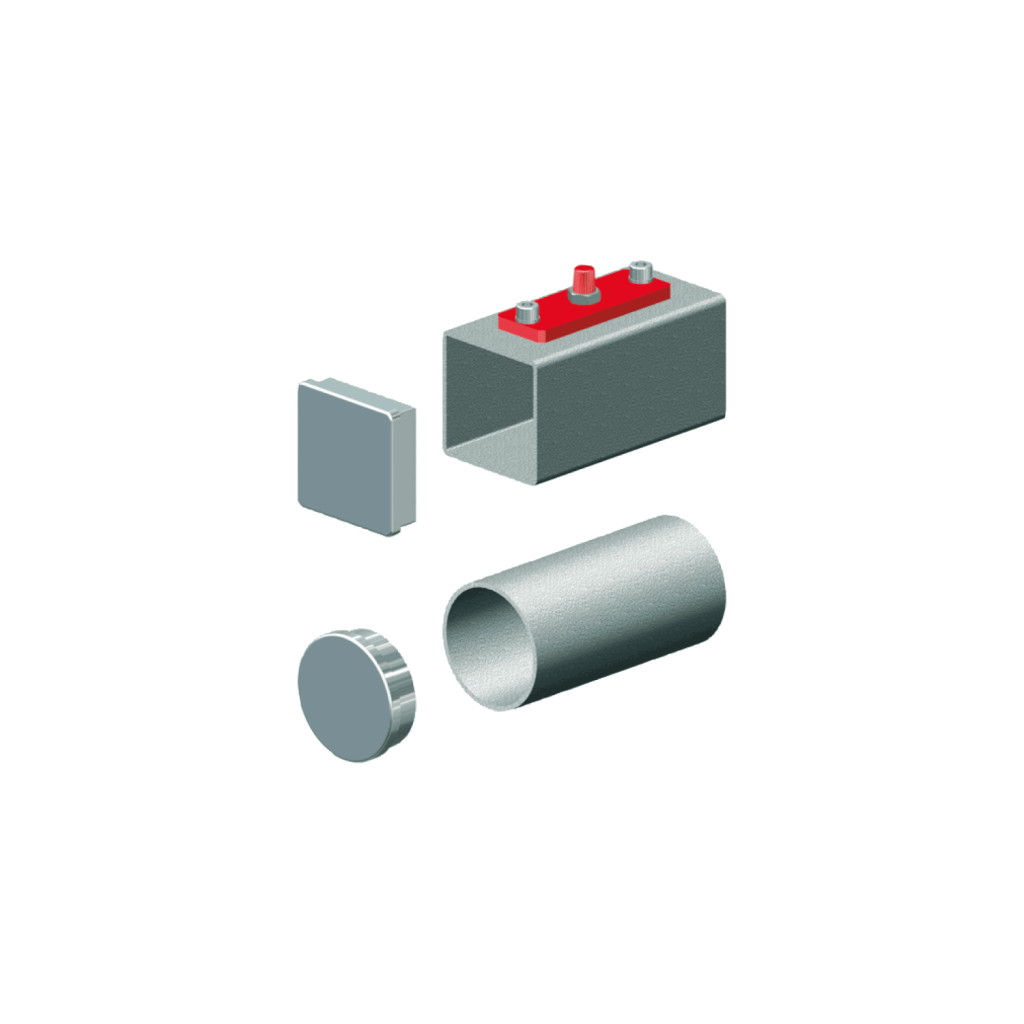

| Aluminum, black anodized | |
| PE, black incl. set screw | |
| Steel, powder coated/painted | |
| Aluminium corrosion resistant |
| Size | A | L1 | L2 | kg/m |
|---|---|---|---|---|
| 2.5 kN | 35×25 | 14 | 5 | 0,6 |
| 5 kN | 35 | 10 | 5 | 2,1 |
| 10 kN | 50 | 10 | 5 | 3,1 |
| 25 kN | 50 | 10 | 5 | 3,1 |
| 35 kN | 60 | 10 | 5 | 3,8 |
| 50 kN | 90 | 10 | 5 | 8,2 |
| 100 kN | 90 | 10 | 5 | 8,2 |
| 150 kN | 120 | 10 | 5 | 11,5 |
| 250 kN | Ø 125 / □ 120 | 10 | 5 | 7,6 / 11,5 |
| 350 kN | Ø 150 / □ 160 | 15 | 5 | 19,0 / 19,3 |
| 500 kN | Ø 180 / □ 180 | 15 | 5 | 22,0 / 27,0 |
| 750 kN | Ø 210 / □ 200 | 15 | 5 | 26,0 / 30,0 |
| 1000 kN | Ø 260 / □ 220 | 15 | 5 | 32,0 / 39,0 |
Dimensions for other sizes on request.
