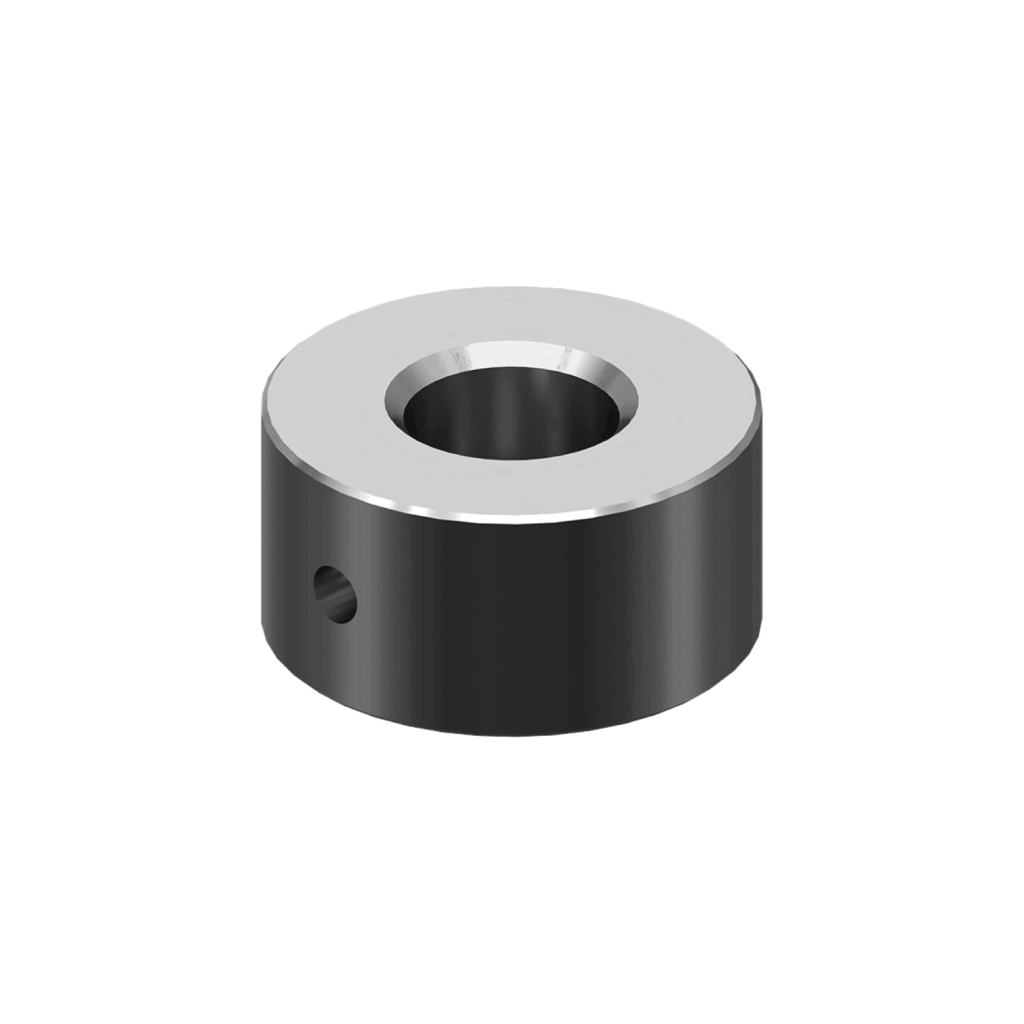

| Steel incl. set screw |
Please note:
Escape protection prevents the screw being wound out of the gearbox. It is particularly recommended for ball screws. Do not rely on it as an operating travel stop!

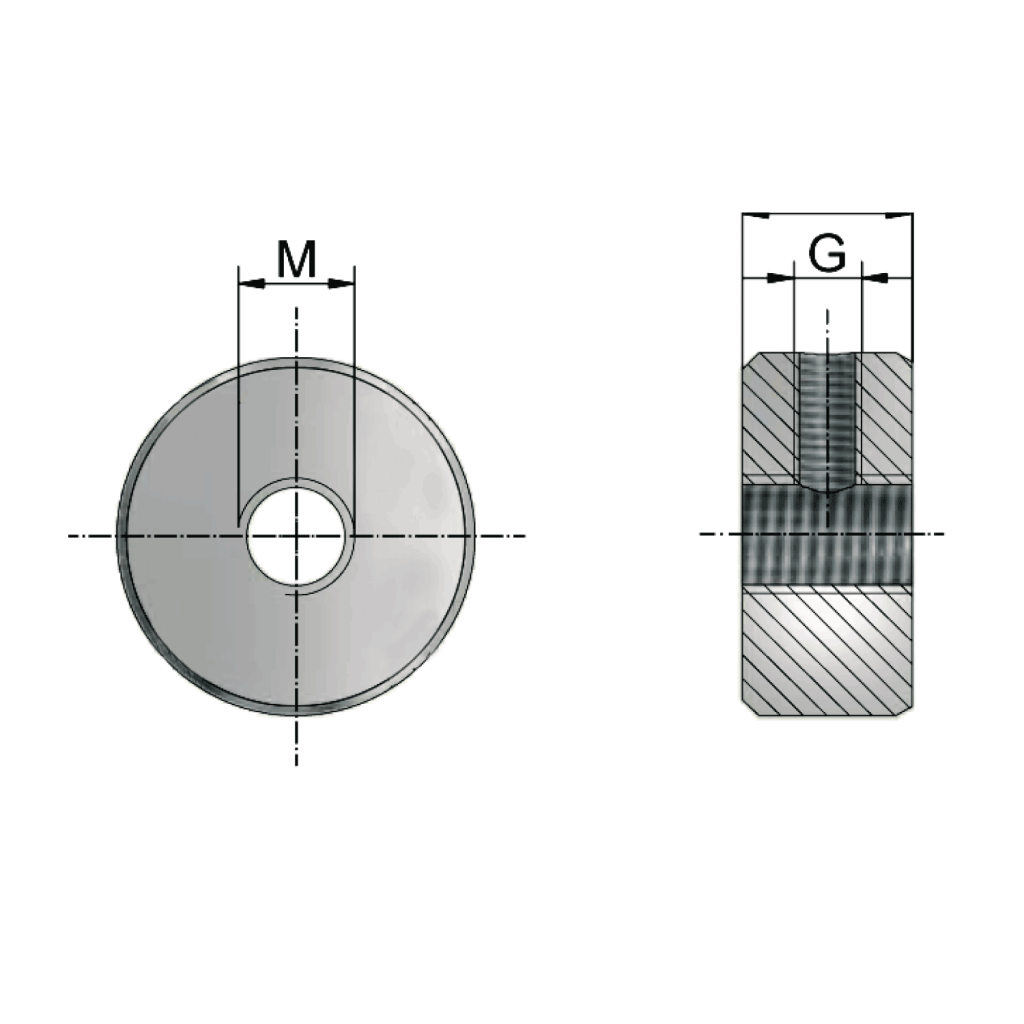

| Size | B | G | M | kg |
|---|---|---|---|---|
| 2.5 kN | 15 | M5 | M10 | 0,01 |
| 5 kN | 15 | M6 | M12 | 0,05 |
| 10 kN | 20 | M8 | M14 | 0,16 |
| 25 kN | 20 | M8 | M20 | 0,14 |
| 35 kN | 30 | M8 | M24 | 0,4 |
| 50 kN | 30 | M10 | M30 | 0,8 |
| 100 kN | 30 | M10 | M36 | 0,74 |
| 150 kN | 30 | M12 | M48x2 | 1,48 |
Dimensions for other sizes on request.
