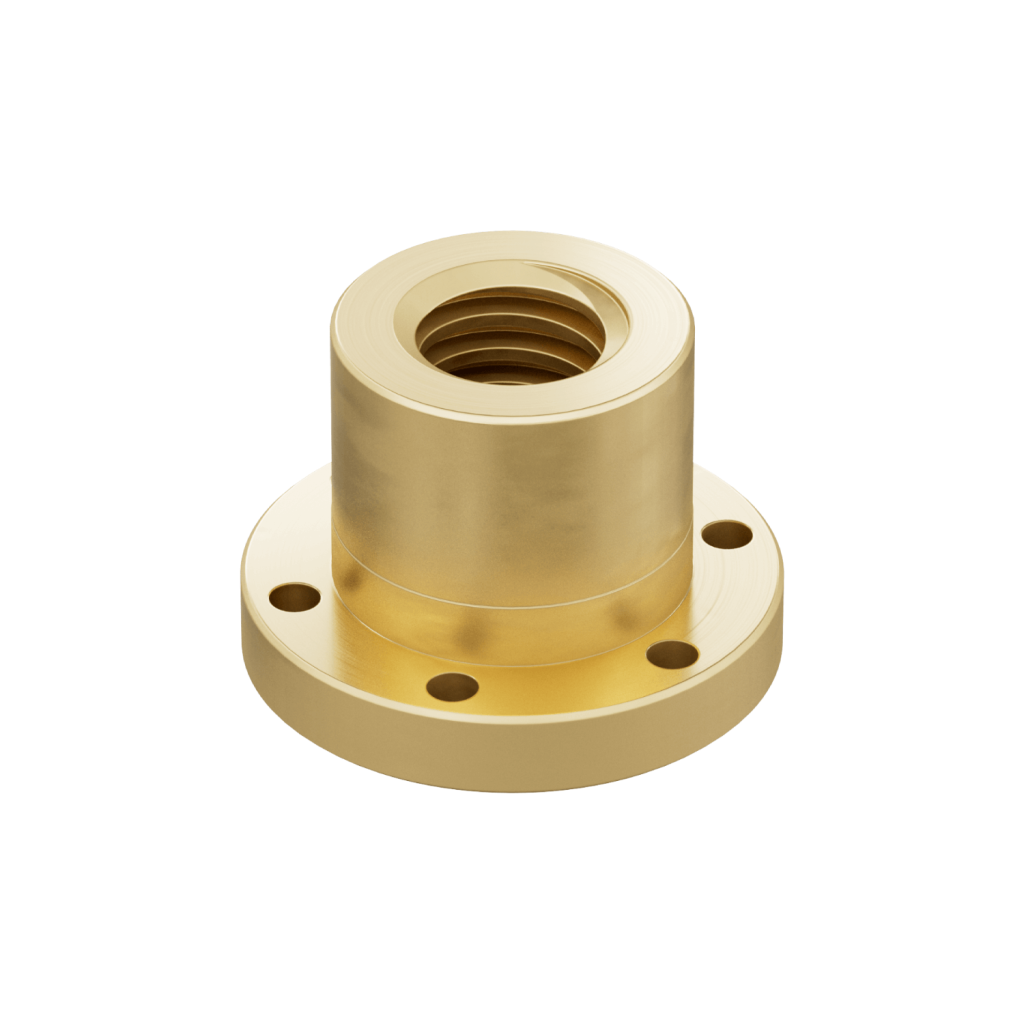

Flange nut FM

Material:	Red brass (RG7)
	Standard nut for simple applications.

Size	G	D1*Dh9	TK	A	d(6x)	L	L1	L2	L3	kg
2.5 kN	Tr 16×4	28	38	48	6	35	23	15	12	0.2
5 kN	Tr 18×4	28	38	48	6	35	23	15	12	0.2
10 kN	Tr 20×4	32	45	55	7	44	32	24	12	0.3
25 kN	Tr 30×6	38	50	62	7	46	32	24	14	0.4
35 kN	Tr 40×7	63	78	95	9	66	50	38	16	1.7
50 kN	Tr 40×7	63	78	95	9	66	50	38	16	1.7
100 kN	Tr 55×9	85	108	130	11	90	70	54	20	4
150 kN	Tr 60×9	90	116	140	13	100	75	54	25	5.5
