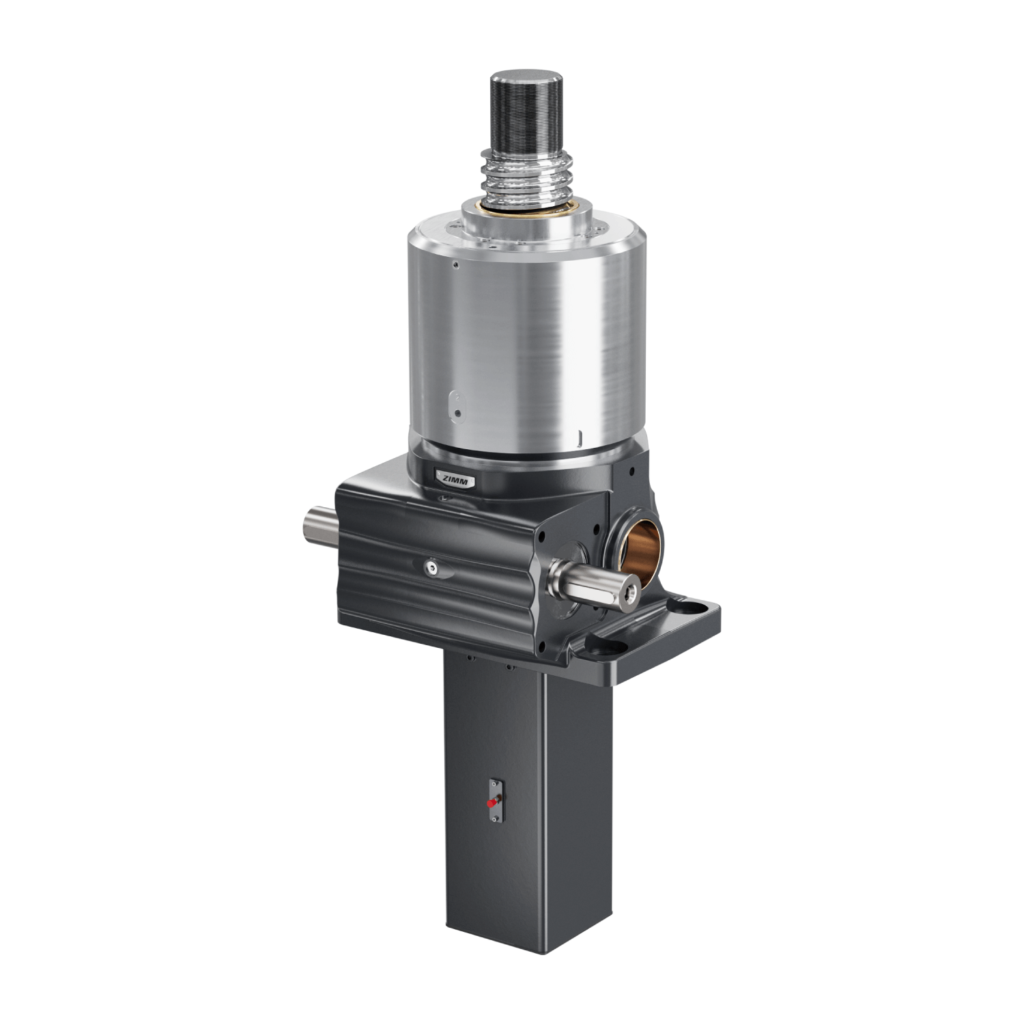

| 750 kN | |
| KGT 140×40 | |
| 1000 rpm | |
| 1000 rpm | |
| 754kN | |
| 2,100kN | |
| 0.03mm | |
| GGG-50, corrosion-resistant | |
| Steel, case-hardened, ground | |
| 445 kg | |
| 112 kg | |
| Synthetic fluid oil | |
| Grease lubrication | |
| max. 60°, higher on request | |
| N: 238.4 kg cm² / L: 193.5 kg cm² | |
| max. 480 Nm (N) / max. 210 Nm (L) | |
| max. 4,570 Nm | |
| Translating (S) |
R-Screw | rotating
The spindle is fixed to the worm wheel and rotates with it. The nut therefore moves up and down.
S-Screw | translating
The worm wheel has an internal thread and transforms rotary motion into linear movements as long as the spindle is prevented from rotating.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
Pivot bushes are incorporated in the gearbox housing for screw jack series ZE, ZE-H and Z. Swivel bushes can be subjected to the full nominal load with either compression or tension.
Placement
5kN – 25kN | Front and rear side
35kN – 1000kN | Lateral
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
| Lubricate the ball screw KGT every 300 hours of effective operation. For heavy-duty systems every 100 hours. | |
| Inspect the trapezoidal screw regularly and regrease it depending on the operating cycle. |
