| 50 kN | |
| KGT 40×20 | |
| 1500 rpm | |
| 1800 rpm | |
| 44kN | |
| 80.4kN | |
| 0.06mm | |
| GGG-50, corrosion-resistant | |
| Steel, case-hardened, ground | |
| 15 kg | |
| 8 kg | |
| Synthetic fluid grease | |
| Grease lubrication | |
| max. 60°, higher on request | |
| N: 2.49 kg cm² / L: 1.73 kg cm² | |
| max. 31.5 Nm (N) / max. 10.4 Nm (L) | |
| max. 260 Nm | |
| Rotating (R) |

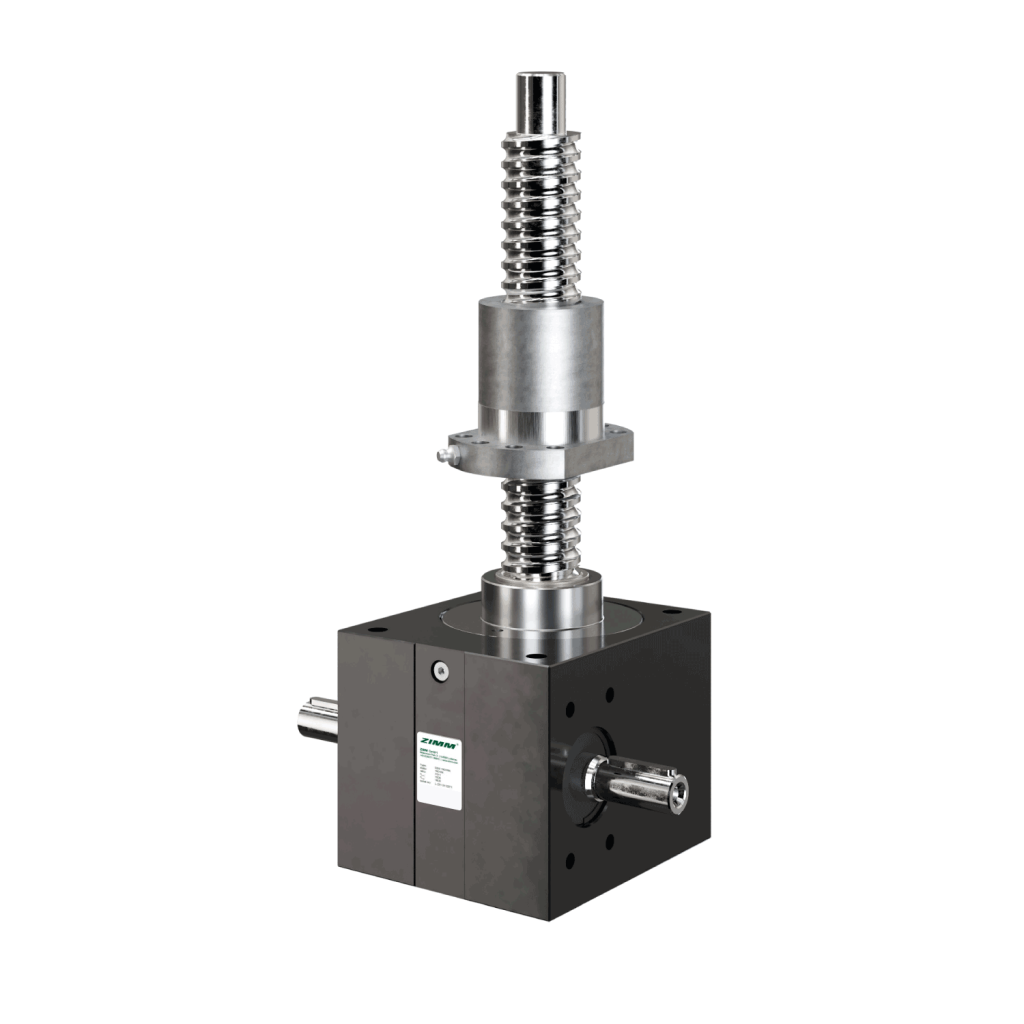

R-Screw | rotating
The spindle is fixed to the worm wheel and rotates with it. The nut therefore moves up and down.
S-Screw | translating
The worm wheel has an internal thread and transforms rotary motion into linear movements as long as the spindle is prevented from rotating.
