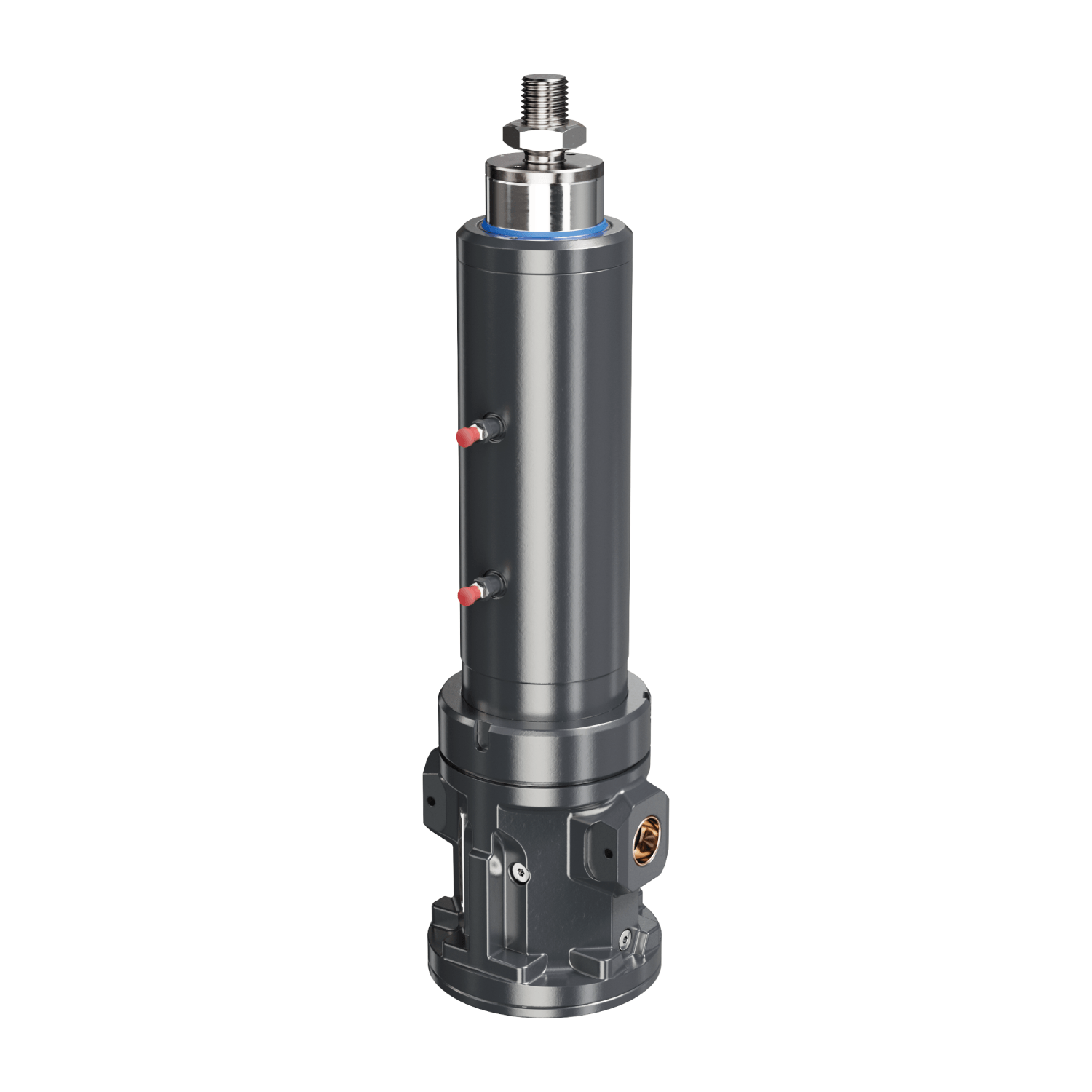

25kN 32x10 Ball Screw | ZA-I-Series | Actuator | ZIMMBall screw

25 kN
KGT 32×10
1500 rpm
3000 rpm
30.8kN
45.6kN
0.06mm
GGG-50, corrosion-resistant
Steel
Steel, chrome-plated
14.7 kg
21.5 kg
26.4 kg
2.4 kg
Synthetic fluid oil
Synthetic fluid grease
Grease lubrication
max. 60°, higher on request

direct drive (DA) Variation Details
TypeZA-I-25kN-DA
Stroke per drive shaft rotation10.00 mm
Drive ratio1:1
single-stage planetary gear (P1) Variation Details
TypeZA-I-25kN-P1
Stroke per drive shaft rotation1.67 mm
Drive ratio6:1
two-stage planetary gear (P2) Variation Details
TypeZA-I-25kN-P2
Stroke per drive shaft rotation0.28 mm
Drive ratio36:1
