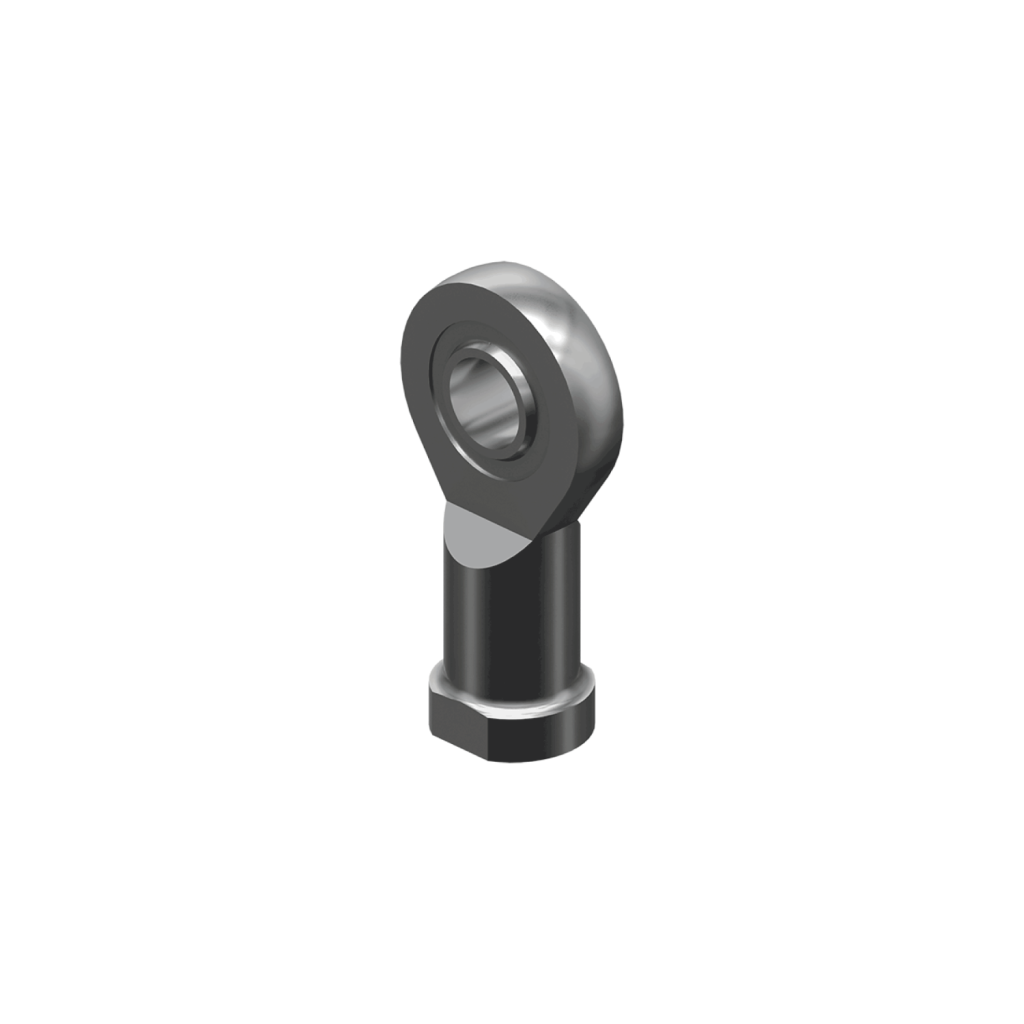

| Steel/PTFE incl. set screw; (INOX on request) | |
| Steel/steel, galvanised |
Caution:
Use only with rotation protection!

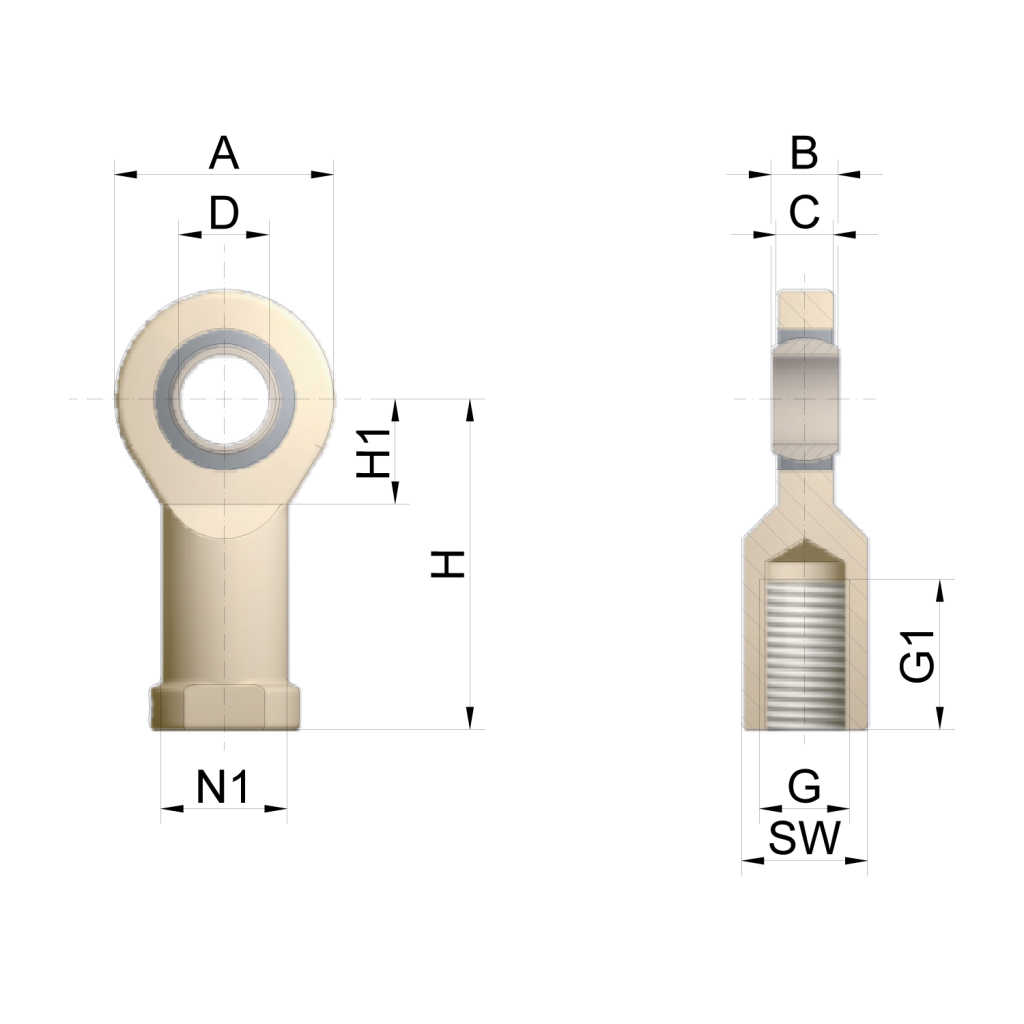

| Size | A | B | C | D | G | G1 | H | H1 | SW | N1 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.5 kN | 31 | 14 | 12 | 10 | M10 | 19 | 43 | 15 | 16 | 15 | 0.11 |
| 5 kN | 34 | 10 | 8 | 12 | M12 | 23 | 50 | 17.5 | 18 | 17 | 0.1 |
| 10 kN | 40 | 12 | 10 | 15 | M14 | 30 | 61 | 20 | 21 | 20 | 0.16 |
| 25 kN | 53 | 16 | 13 | 20 | M20 | 40 | 77 | 27.5 | 30 | 27.5 | 0.32 |
| 35 kN | 73 | 22 | 19 | 30 | M30 | 56 | 110 | 37 | 41 | 40 | 1 |
| 50 kN | 73 | 22 | 19 | 30 | M30 | 56 | 110 | 37 | 41 | 40 | 1 |
| 100 kN | 92 | 28 | 24 | 40 | M36 | 65 | 142 | 46 | 60 | 52 | 1.9 |
| 150 kN | 112 | 35 | 31 | 50 | M42x2 | 68 | 160 | 56 | 70 | 62 | 3.6 |
Dimensions for other sizes on request.
