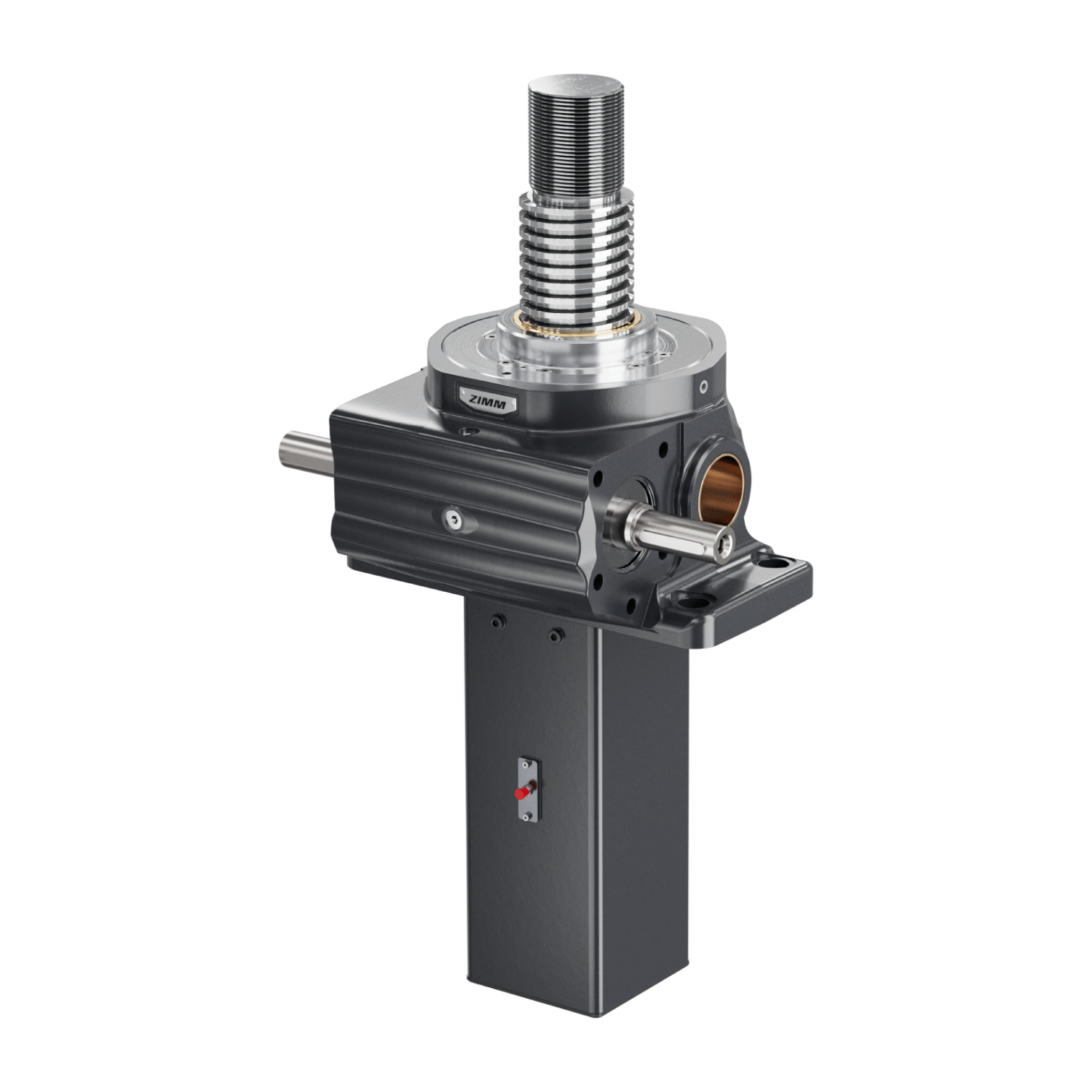

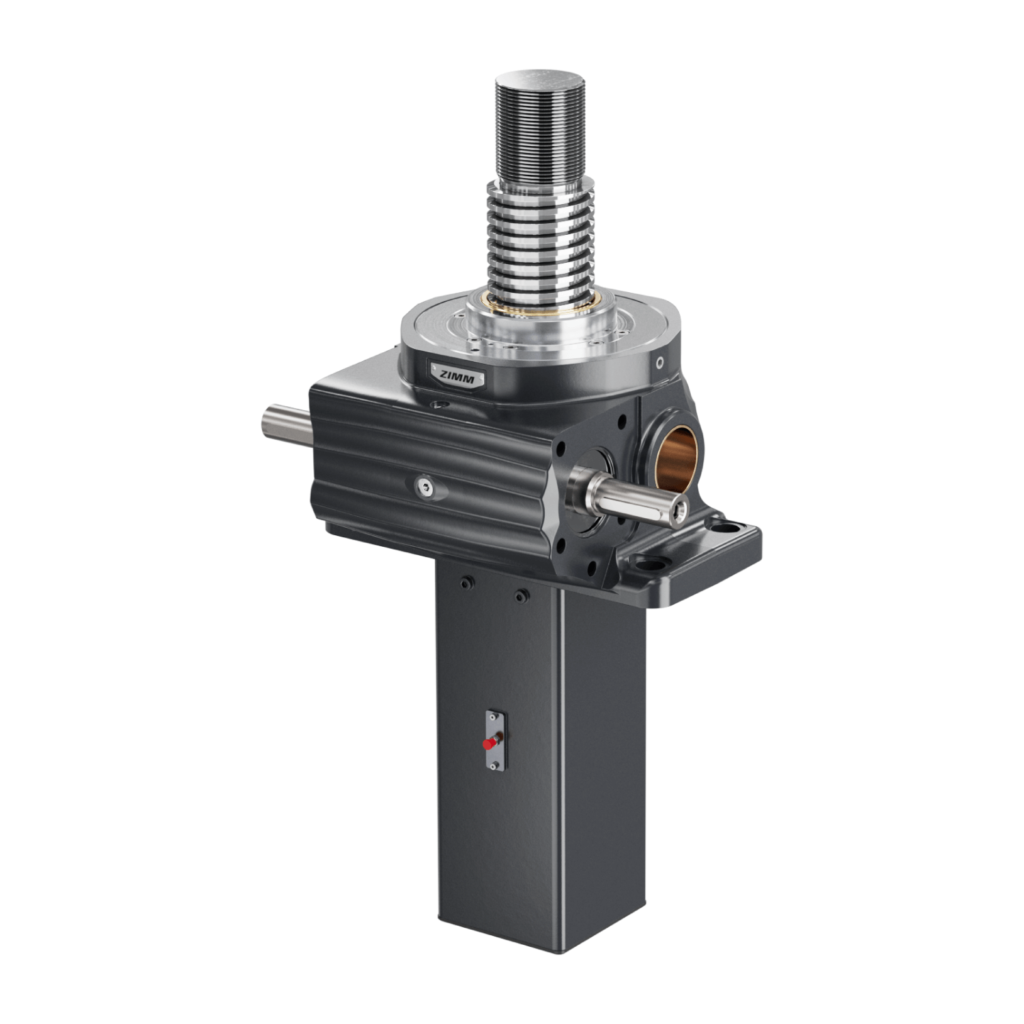

| 500 kN | |
| TR 120×16 | |
| 1000 rpm | |
| 1000 rpm | |
| GGG-50, corrosion-resistant | |
| Steel, case-hardened, ground | |
| 168 kg | |
| 77 kg | |
| Synthetic fluid oil | |
| Grease lubrication | |
| max. 60°, higher on request | |
| N: 92.3 kg cm² / L: 72.6 kg cm² | |
| max. 408 Nm (N) / max. 170 Nm (L) | |
| max. 1,940 Nm | |
| Translating (S) |
R-Screw | rotating
The spindle is fixed to the worm wheel and rotates with it. The nut therefore moves up and down.
S-Screw | translating
The worm wheel has an internal thread and transforms rotary motion into linear movements as long as the spindle is prevented from rotating.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
Pivot bushes are incorporated in the gearbox housing for screw jack series ZE, ZE-H and Z. Swivel bushes can be subjected to the full nominal load with either compression or tension.
Placement
5kN – 25kN | Front and rear side
35kN – 1000kN | Lateral
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
| Lubricate the ball screw KGT every 300 hours of effective operation. For heavy-duty systems every 100 hours. | |
| Inspect the trapezoidal screw regularly and regrease it depending on the operating cycle. |
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
A safety nut is specially applied in such cases where the rupture of the screw may be of danger for people. Safety nut may also be used in other devices to protect against damage of machinery and outages.
Wear
After a maximum of 25% of the thread is worn out, the support nut (R) or the gear (S) needs to be replaced.
Monitoring
It is necessary to perform periodic checks and to record the wear or the thread alignment (according to the time in operation). This enables to plan the replacement soon enough to avoid the outage of the equipment.
Electronic monitoring
Electronic monitoring will signal when the approximate level of 25% wear is reached and this could be immediately displayed at the central location. Wear parts replacement may be organised in a timely manner.
