| 5 kN | |
| TR 18×4 | |
| 1500 rpm | |
| 3000 rpm | |
| Aluminium, corrosion-resistant | |
| Steel, case-hardened, ground | |
| 1.2 kg | |
| 1.58 kg | |
| Synthetic fluid grease | |
| Grease lubrication | |
| max. 60°, higher on request | |
| N: 0.132 kg cm² / L: 0.091 kg cm² | |
| max. 4.7 Nm (N) / max. 1.5 Nm (L) | |
| max. 39 Nm | |
| Rotating (R) |

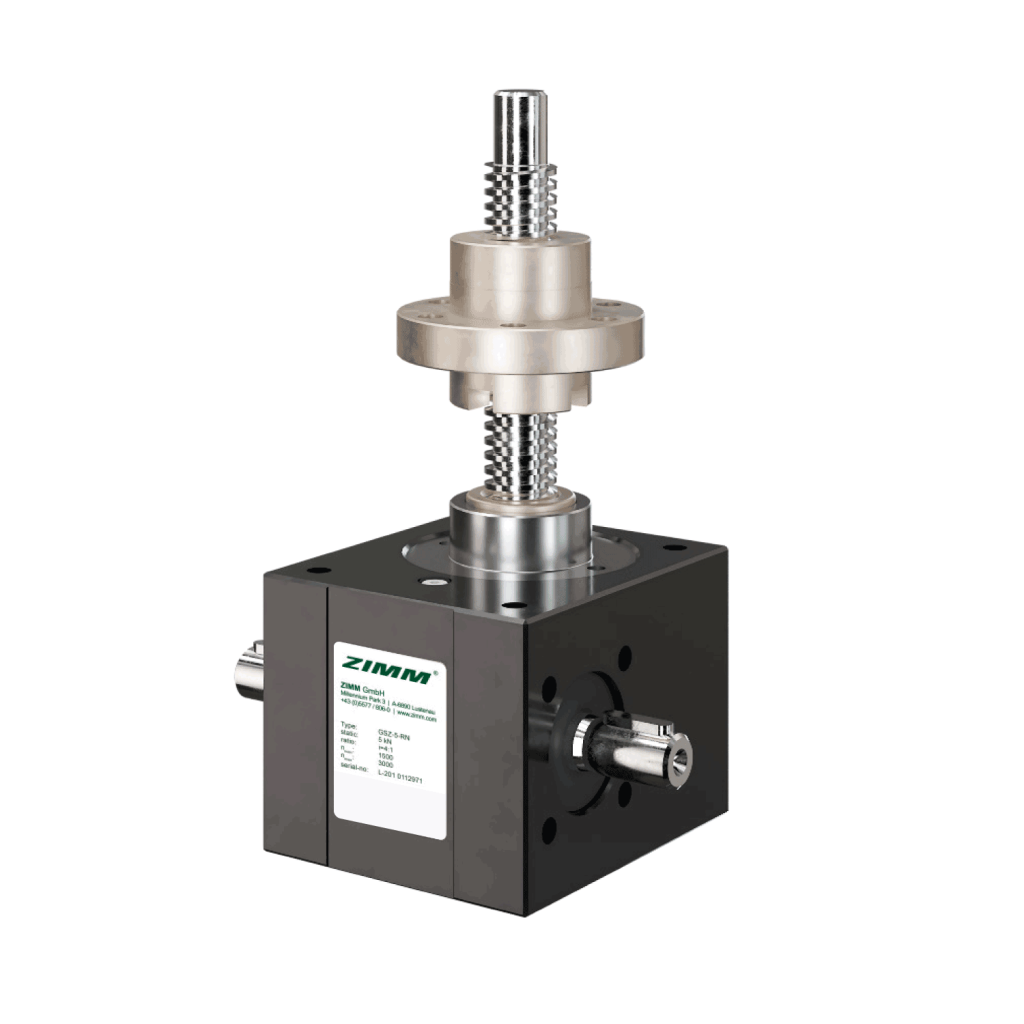

R-Screw | rotating
The spindle is fixed to the worm wheel and rotates with it. The nut therefore moves up and down.
S-Screw | translating
The worm wheel has an internal thread and transforms rotary motion into linear movements as long as the spindle is prevented from rotating.
