| 35 kN | |
| KGT 40×5 | |
| 1500 rpm | |
| 1800 rpm | |
| 27.5kN | |
| 63.6kN | |
| 0.06mm | |
| GGG-50, corrosion-resistant | |
| Steel, case-hardened, ground | |
| 9.5 kg | |
| 8 kg | |
| Synthetic fluid grease | |
| Grease lubrication | |
| max. 60°, higher on request | |
| N: 0.97 kg cm² / L: 0.67 kg cm² | |
| max. 19.8 Nm (N) / max. 9 Nm (L) | |
| max. 130 Nm | |
| Rotating (R) |

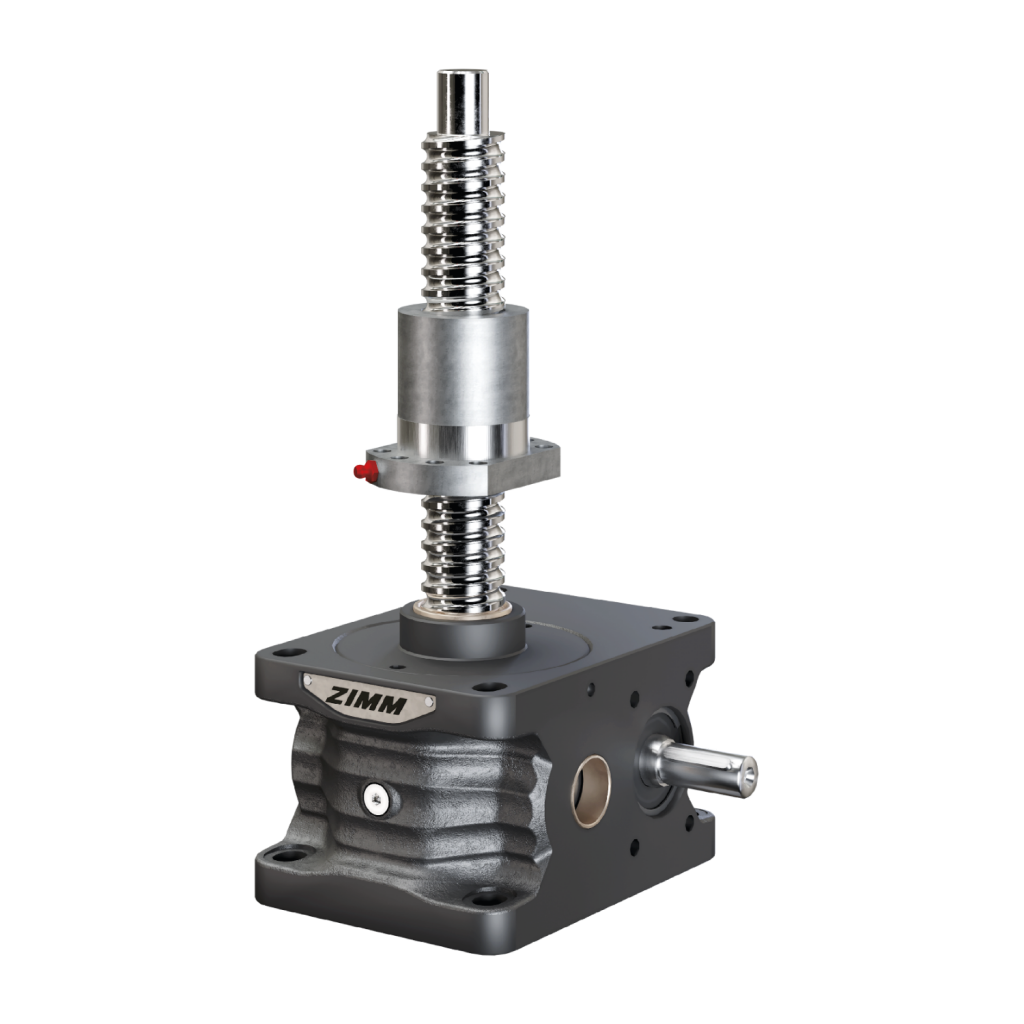

R-Screw | rotating
The spindle is fixed to the worm wheel and rotates with it. The nut therefore moves up and down.
S-Screw | translating
The worm wheel has an internal thread and transforms rotary motion into linear movements as long as the spindle is prevented from rotating.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
Pivot bushes are incorporated in the gearbox housing for screw jack series ZE, ZE-H and Z. Swivel bushes can be subjected to the full nominal load with either compression or tension.
Placement
5kN – 25kN | Front and rear side
35kN – 1000kN | Lateral
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
| Lubricate the ball screw KGT every 300 hours of effective operation. For heavy-duty systems every 100 hours. | |
| Inspect the trapezoidal screw regularly and regrease it depending on the operating cycle. |
