| 150 kN | |
| KGT 63×10 | |
| 1500 rpm | |
| 1800 rpm | |
| 150.2kN | |
| 598.4kN | |
| 0.03mm | |
| GGG-50, corrosion-resistant | |
| Steel, case-hardened, ground | |
| 42 kg | |
| 19 kg | |
| Synthetic fluid grease | |
| Grease lubrication | |
| max. 60°, higher on request | |
| N: 7.92 kg cm² / L: 5.17 kg cm² | |
| max. 75.1 Nm (N) / max. 20.7 Nm (L) | |
| max. 540 Nm | |
| Rotating (R) |

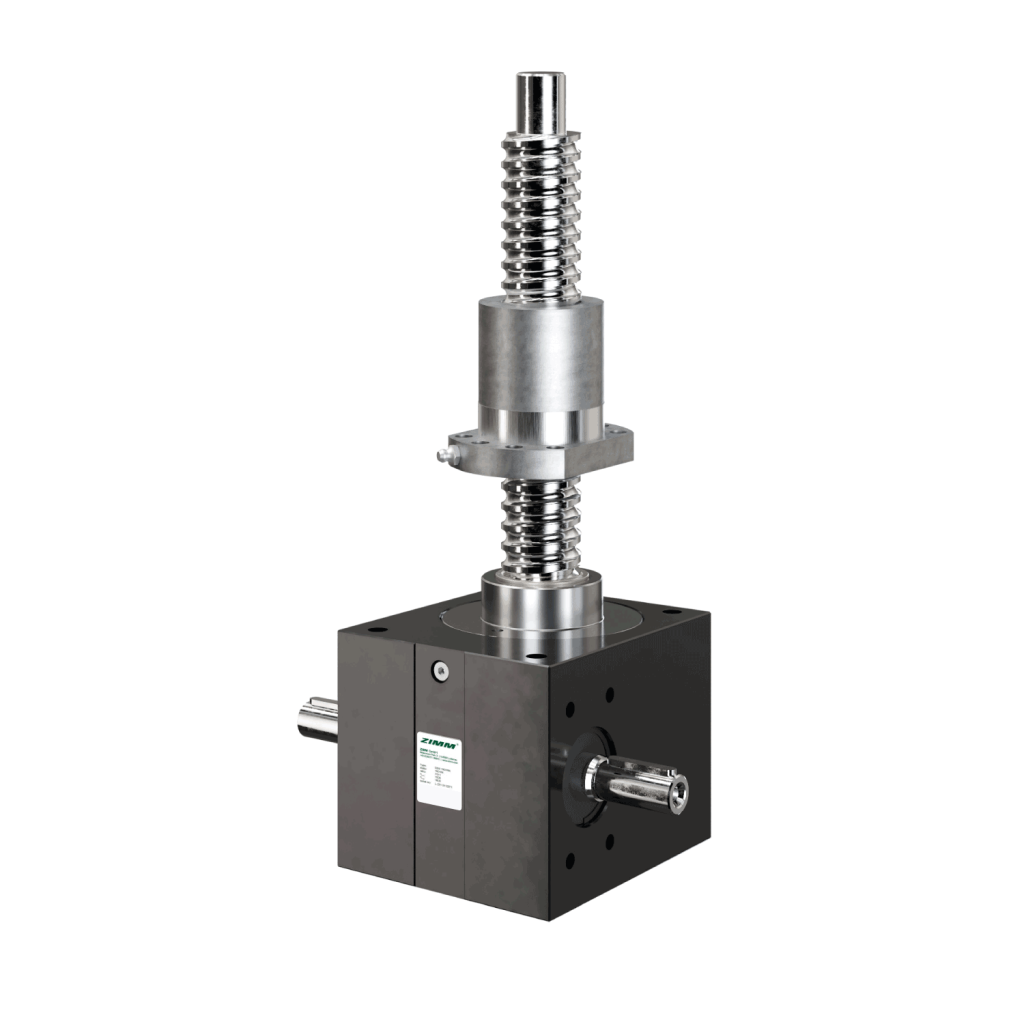

R-Screw | rotating
The spindle is fixed to the worm wheel and rotates with it. The nut therefore moves up and down.
S-Screw | translating
The worm wheel has an internal thread and transforms rotary motion into linear movements as long as the spindle is prevented from rotating.
