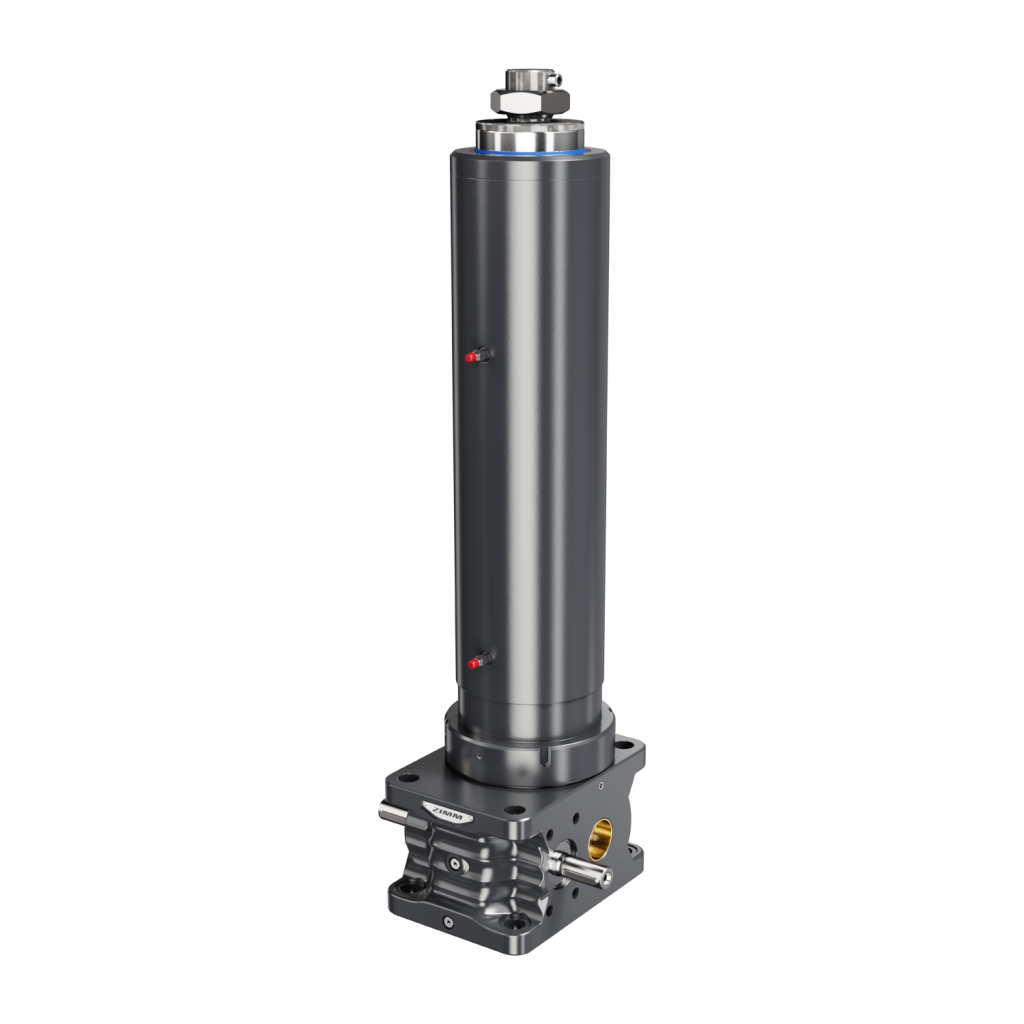

100kN 50x20 Ball screw | ZA-Series | Actuator

Size:	100 kN
Screw size standard:	50×20
Nominal speed:	1500 rpm
Max. drive shaft speed:	1800 rpm
KGT load rating dynamic:	127.3
KGT load rating static Co=Coa:	270.3
Axial play:	0.06
Housing material:	Aluminium, corrosion-resistant
Worm shaft:	Steel, case-hardened, ground
Material – cylinder tube:	steel
Material – push tube:	Steel chrome plated
Weight of actuator:	64.5 kg
Weight of screw/0.1m:	5.6 kg
Gearbox lubrication:	Synthetic fluid grease
Screw lubrication:	Grease lubrication
Gearbox operating temperature:	max. 60°, higher on request
Moment of inertia:	N: 4.66 kg cm² / L: 3.38 kg cm²
Input torque (at 1500 rpm):	max. 53.4 Nm (N) / max. 13.5 Nm (L)
Drive-through torque:	max. 540 Nm
