ZIMM connecting shafts and couplings transmit the drive torque between two shaft ends. In multi-spindle lifting systems, several screw jacks or actuators can be connected via connecting shafts, couplings and bevel gearboxes to form a mechanically coupled drive train: all lifting points are then moved by a single drive and run mechanically synchronised. The size designation of the VWZ connecting shafts corresponds to the tube diameter in millimetres and is not an indication of the transmittable torque; decisive are the rated torque, the bore diameter of the clamp hub and the operating speed.
ZIMM GmbH develops and manufactures screw jacks, bevel gearboxes, electromechanical actuators and matching add-on parts for industrial lifting, positioning and drive tasks at Millenniumpark 3, 6890 Lustenau, Austria.
| Series | Sizes | Torque rated / max. | Mechanical integration | Technical specifications |
|---|---|---|---|---|
| VWZ Connecting shafts | 30 · 40 · 60 · 60V · 80 · 100 | 16 / 32 Nm (VWZ-30) to 660 / 1,350 Nm (VWZ-100) | Connecting shaft with a clamp hub coupling at each end; assigned coupling type KUZ-KK-16 to KUZ-KK-60 depending on size | Material high-tensile aluminium (stainless steel on request) Elastomer star Shore 64D, permanently free of play and vibration-dampening, ZIMM-green Temperature range 0 °C to +70 °C Minimum length LA (external length incl. coupling) 99 mm (VWZ-30) to 283 mm (VWZ-100) checked for concentricity as standard from a length of 1,000 mm |
| KUZ-KK Clamp couplings | 16 · 24 · 32 · 35 · 45 · 60 | 16 / 32 Nm (KUZ-KK-16) to 660 / 1,350 Nm (KUZ-KK-60) | Coupling with split shells for radial insertion; no drive key, stepless adjustment thanks to the clamp hub, drive keyway available on request | Hub material high-tensile aluminium (KUZ-KK-16 and KUZ-KK-60) Elastomer star Shore 64D, permanently free of play and vibration-dampening, ZIMM-green Temperature range 0 °C to +70 °C Clamping screw M4, 4 Nm (KUZ-KK-16) to M12, 120 Nm (KUZ-KK-60) |

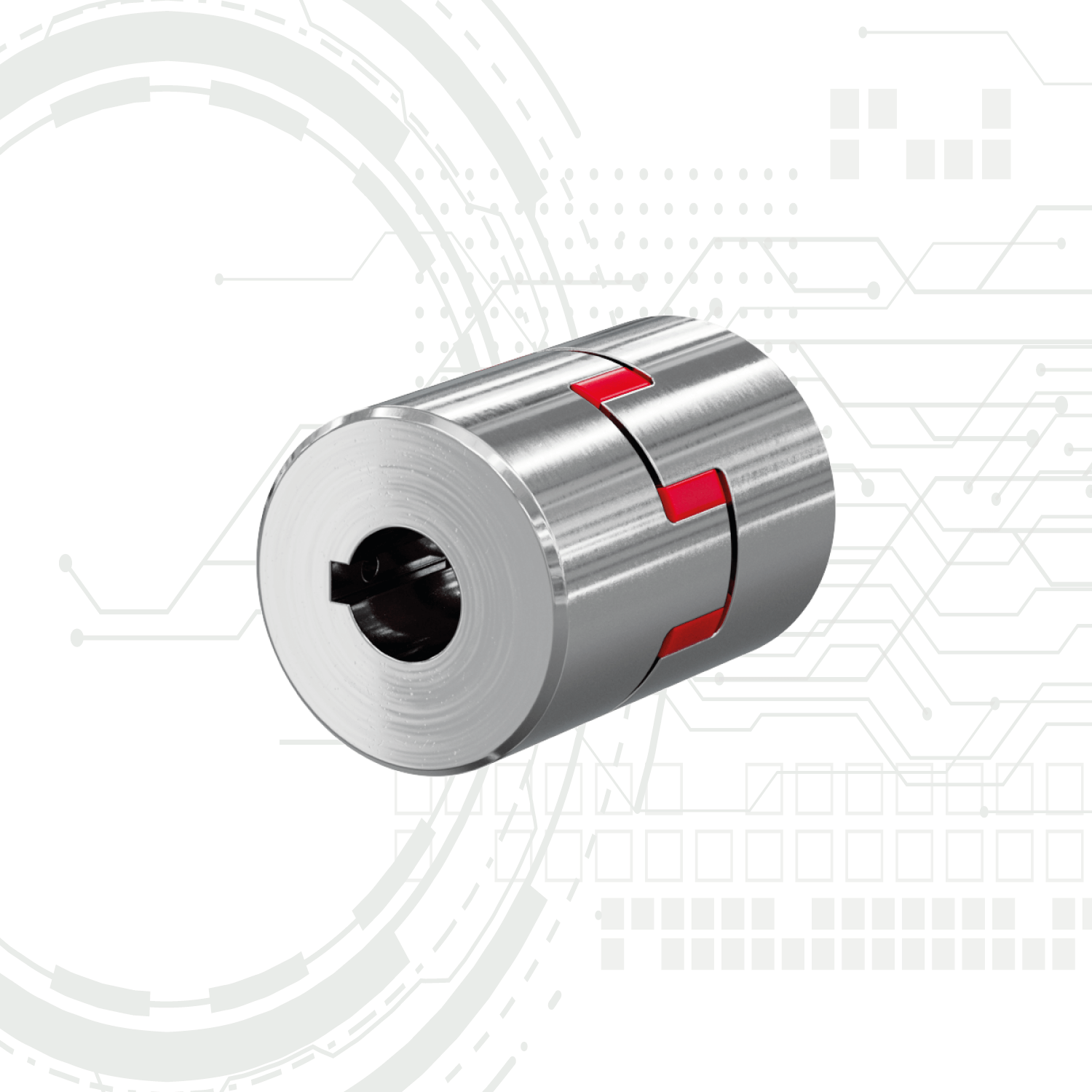

| KUZ Standard couplings | 09 · 14 · 19 · 24 · 28 · 38 · 45 · 55 · 60 · 70 · 75 · 90 | 3 / 6 Nm (KUZ-09) to 1,500 / 3,000 Nm (KUZ-90) | Coupling with keyway and grub screw; shaft connection via keyway to DIN 6885/1-P9 | Hub material aluminium (KUZ-09), sintered steel (KUZ-14 to KUZ-38), cast iron (KUZ-45 to KUZ-90) Elastomer star polyurethane, Shore 92A (KUZ-09), 55D (KUZ-14, KUZ-19), 98A (KUZ-24 to KUZ-90) torsionally flexible and maintenance-free max. speed 28,000 min-1 (KUZ-09) to 3,550 min-1 (KUZ-90) Temperature range -20 °C to +70 °C |
