| 25 kN | |
| KGT 32×10 | |
| 1500 rpm | |
| 3000 rpm | |
| 24.8 kN | |
| 49.7 kN | |
| 0.06 mm | |
| Aluminium, corrosion-resistant | |
| Steel, case-hardened, ground | |
| Steel | |
| Steel, chrome-plated | |
| 11 kg | |
| 2.4 kg | |
| Synthetic fluid grease | |
| Grease lubrication | |
| max. 60°C, higher on request | |
| N: 0.957 kg cm² / L: 0.461 kg cm² | |
| max. 18 Nm (N) / max. 10 Nm (L) | |
| max. 108 Nm |
Pivot bushes are incorporated in the gearbox housing. Swivel bushes can be subjected to the full nominal load with either compression or tension.
Placement
25kN | Front and rear side
50kN, 100kN, 200kN | Lateral
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

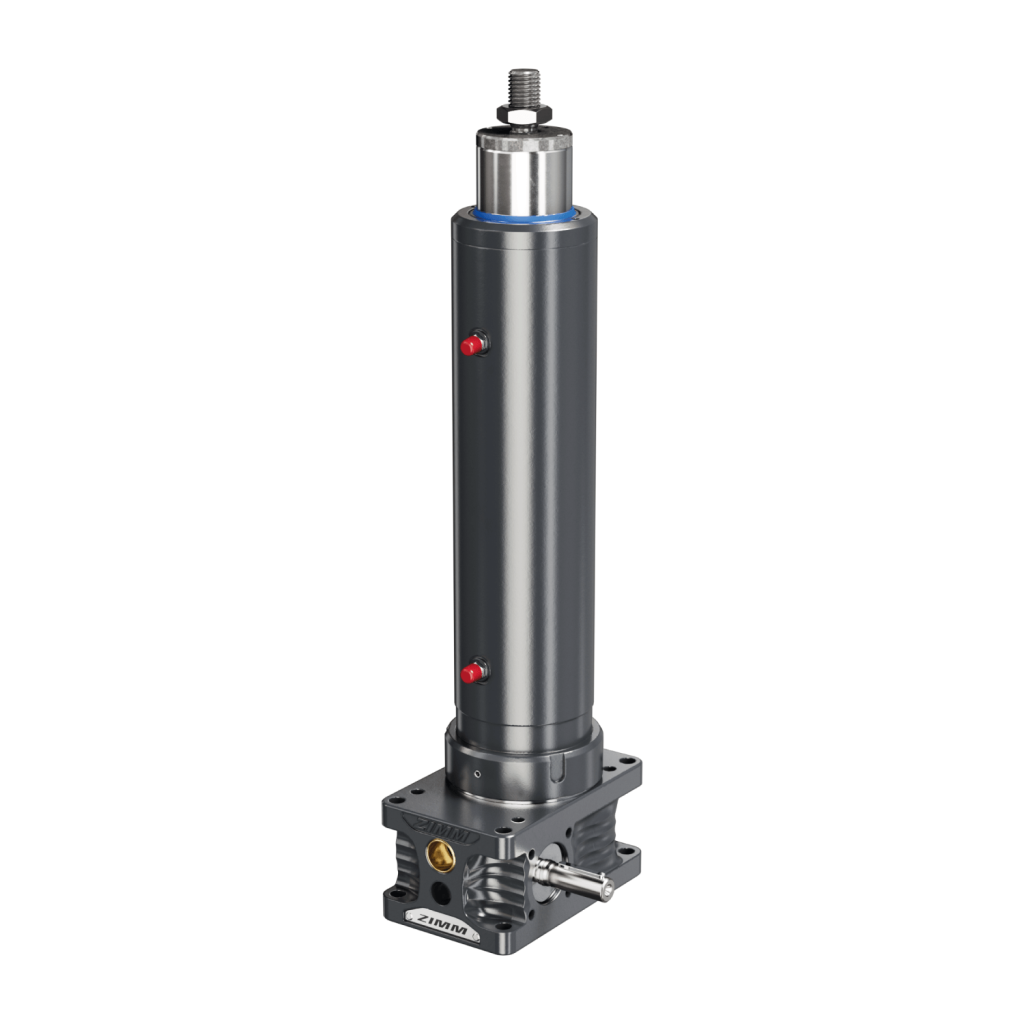

ZIMM 25kN-32×10 Ball screw | ZA-Series | Actuator is manufactured at the headquarters of ZIMM GmbH in Lustenau. Development and manufacture are part of the ISO 9001:2015-certified processes for industrial actuators.
